Epson RC180 Safety And Installation

2. Installation
RC180 Safety and Installation Rev.18
46

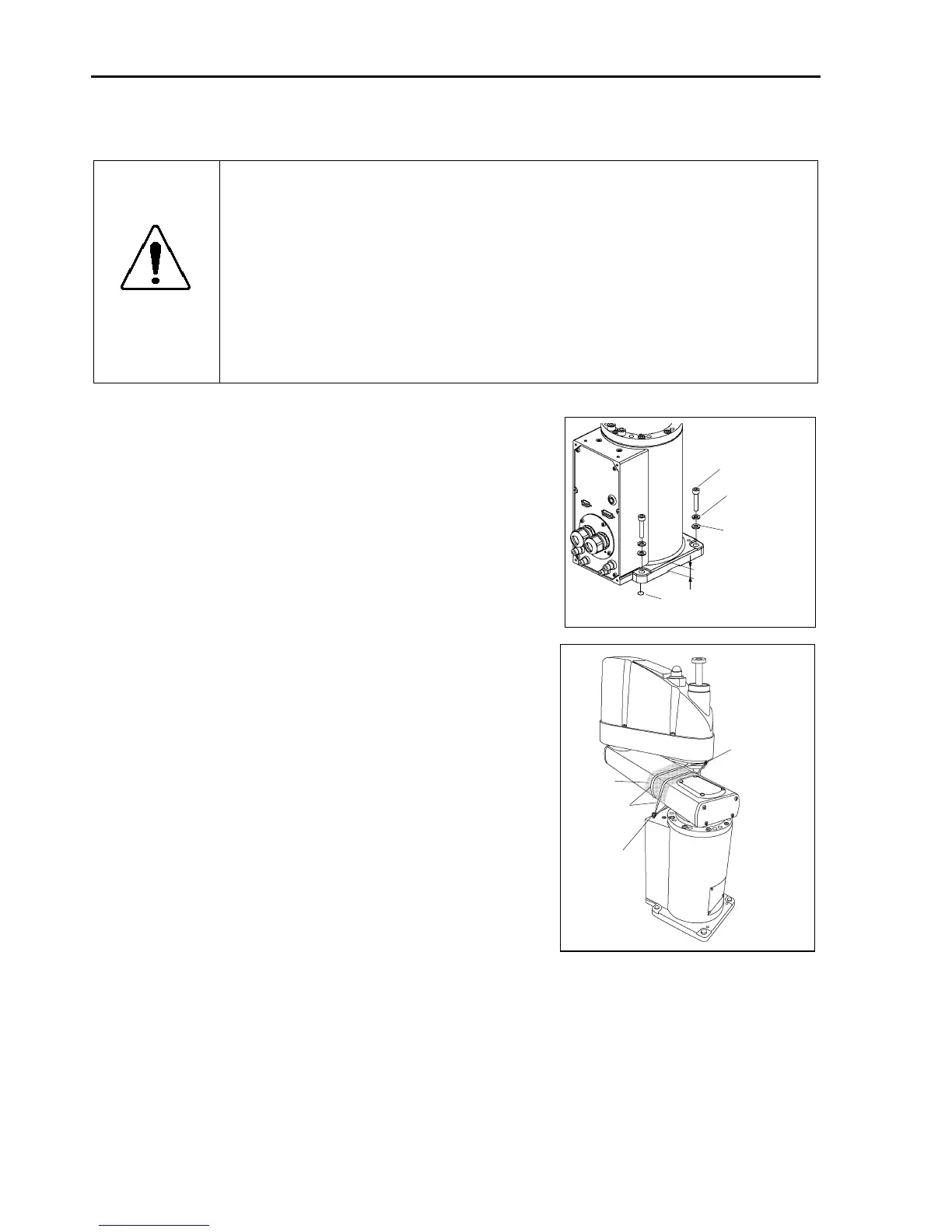

G6 : Table Top Mounting
WARNING
■
Install the Table Top Mounting Manipulator with two or more people.
The Manipulator weights are as follows. Be careful not to get hands,
fingers, or feet caught and/or have equipment damaged by a fall of
the Manipulator.
G6-45** : Approximately 27 kg: 60 lb.
G6-55** : Approximately 27 kg: 60 lb.
G6-65** : Approximately 28 kg: 62 lb.
(1) Secure the base to the base table with four
bolts.
Use bolts with specifications conforming
to ISO898-1 Property Class: 10.9 or 12.9.
20 mm
Screw Hole
(depth 20 mm or more)
4-M8
×
40
Spring
Washer
Plane
Washer
(2)
Using nippers, cut off the wire tie binding
the shaft and arm retaining bracket on the
base.
(3)
Remove the bolts securing the wire ties
removed in step (2).
(4) Remove the shipping bolt and jigs.
Bolt
:M4
×
15
Bolt
:M5
×
15
Wire tie
Sheet
)
NOTE
