Epson RC180 Safety And Installation

2. Installation
RC180 Safety and Installation Rev.18
48

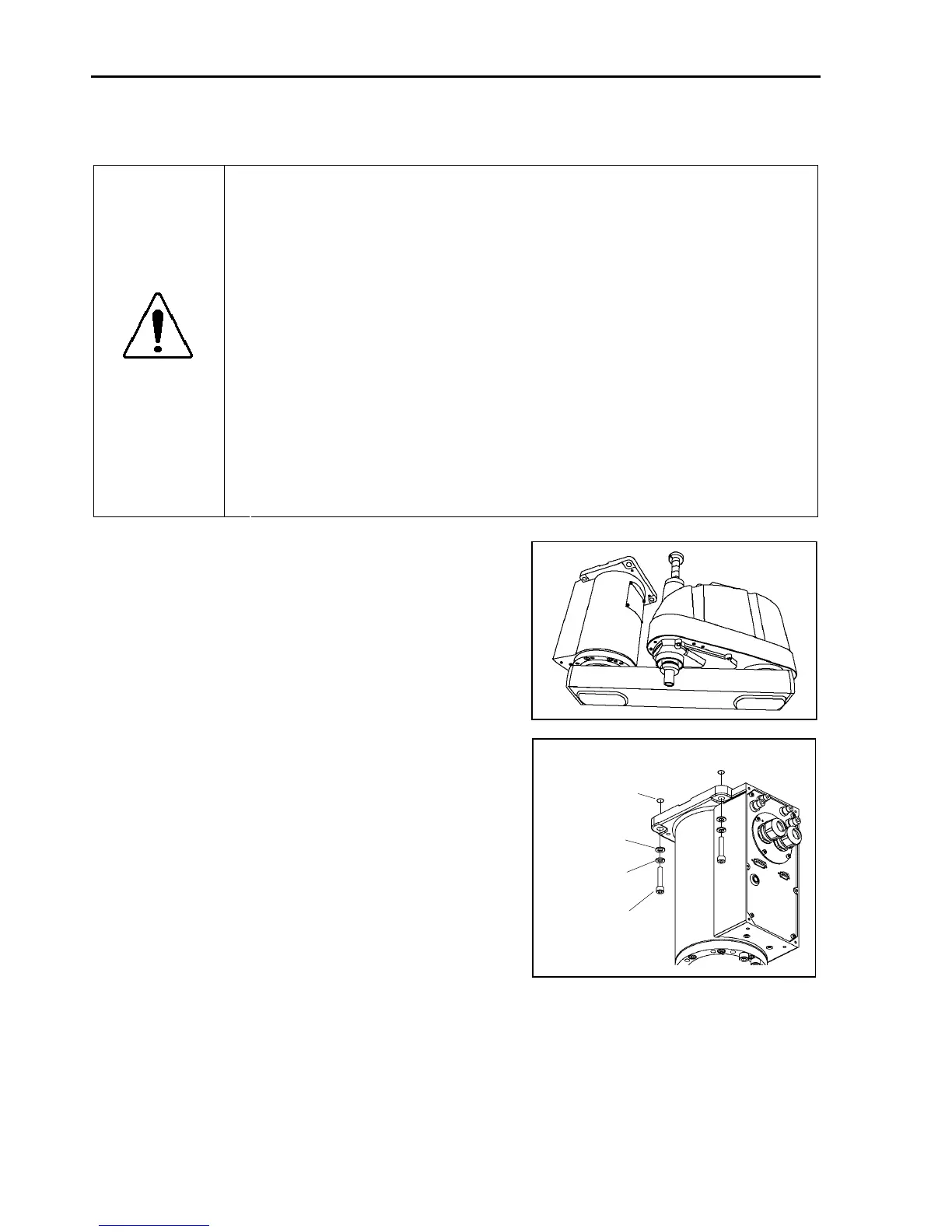

G6 : Ceiling Mounting
■
Install the Ceiling Mounting Manipulator with two or more people.
The Manipulator weights are as follows. Be careful not to get
hands, fingers, or feet caught and/or have equipment damaged by
a fall of the Manipulator.
G6-45**R : Approximately 27 kg: 60 lb.
G6-55**R : Approximately 27 kg: 60 lb.
G6-65**R : Approximately 28 kg: 62 lb.
WARNING
■
When installing the Manipulator to the ceiling, support the
Manipulator, and then secure the anchor bolts. Removing the
support without securing the anchor bolts properly is extremely
hazardous and may result in fall of the Manipulator.
(1)
Unpack the manipulator with retaining
the arm posture.
(2)
Secure the base to the ceiling with four
bolts.
Use bolts with specifications
conforming to ISO898-1 Property
Class: 10.9 or 12.9.
(3) Remove the shipping bolt and jigs.
Screw Hole
(depth 20 mm or more)
4-M8
×
40
Spring
Washer
Plane
Washe
r
)
NOTE
