C

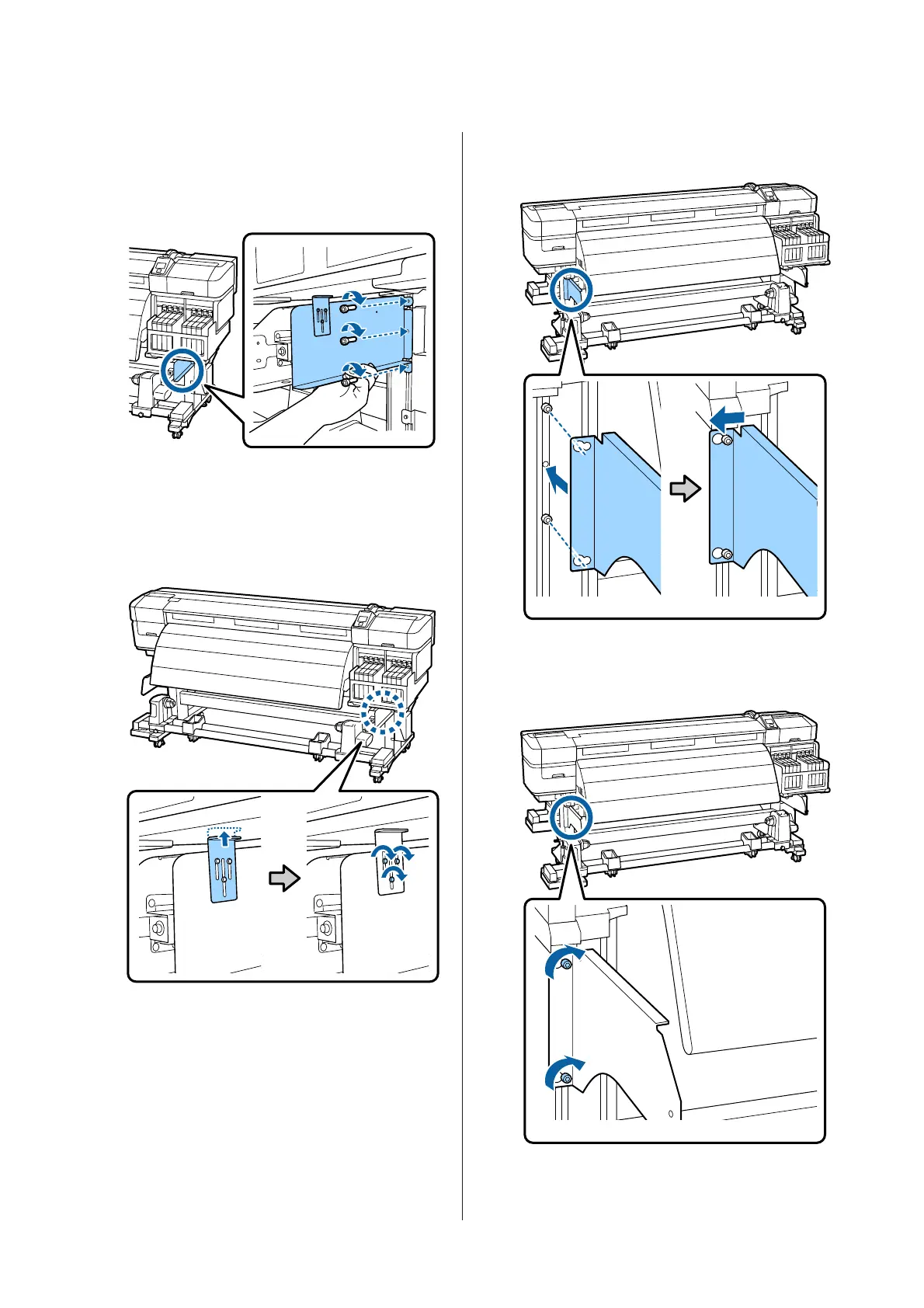

Attach the tank cover holding plate.
While supporting the tank cover holding plate,
use a hexagon wrench (large) to tighten and
firmly secure the three screws.
D
Secure the tank cover adjustment section.
While lifting up the tank cover adjustment
section until it touches the tank cover, use a
hexagon wrench (small) to tighten and firmly
secure the three screws.
E
Attach the left-hand fixing plate for the media
guide bar.
F
Use the hexagon wrench (large) to tighten and
firmly secure the two screws that were
provisionally secured.
SC-F9200 Series User's Guide
Appendix
116
