G

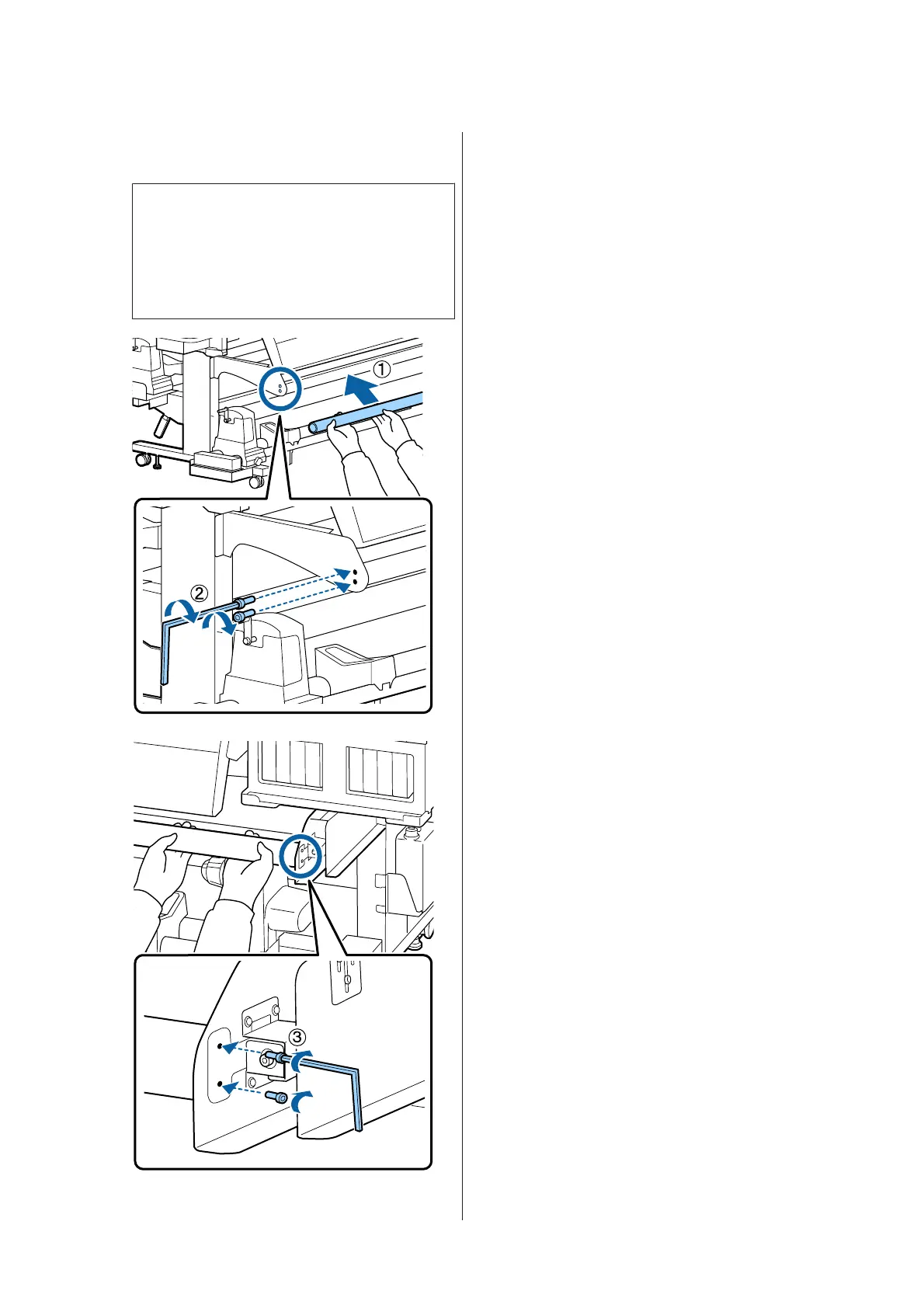

Use the hexagon wrench (small) to tighten the
four screws and secure the media guide bar.
c
Important:
Attach the bar using 2 or more people. If the
media guide bar falls, it may be deformed.
Have 1 person hold the media guide bar when
the screws are being secured.
H
Perform parallel adjustment.
After attaching the media guide bar, read the
following section, and then proceed to parallel
adjustment.
SC-F9200 Series User's Guide
Appendix
117
