Epson SC-F9200 series User Manual

D

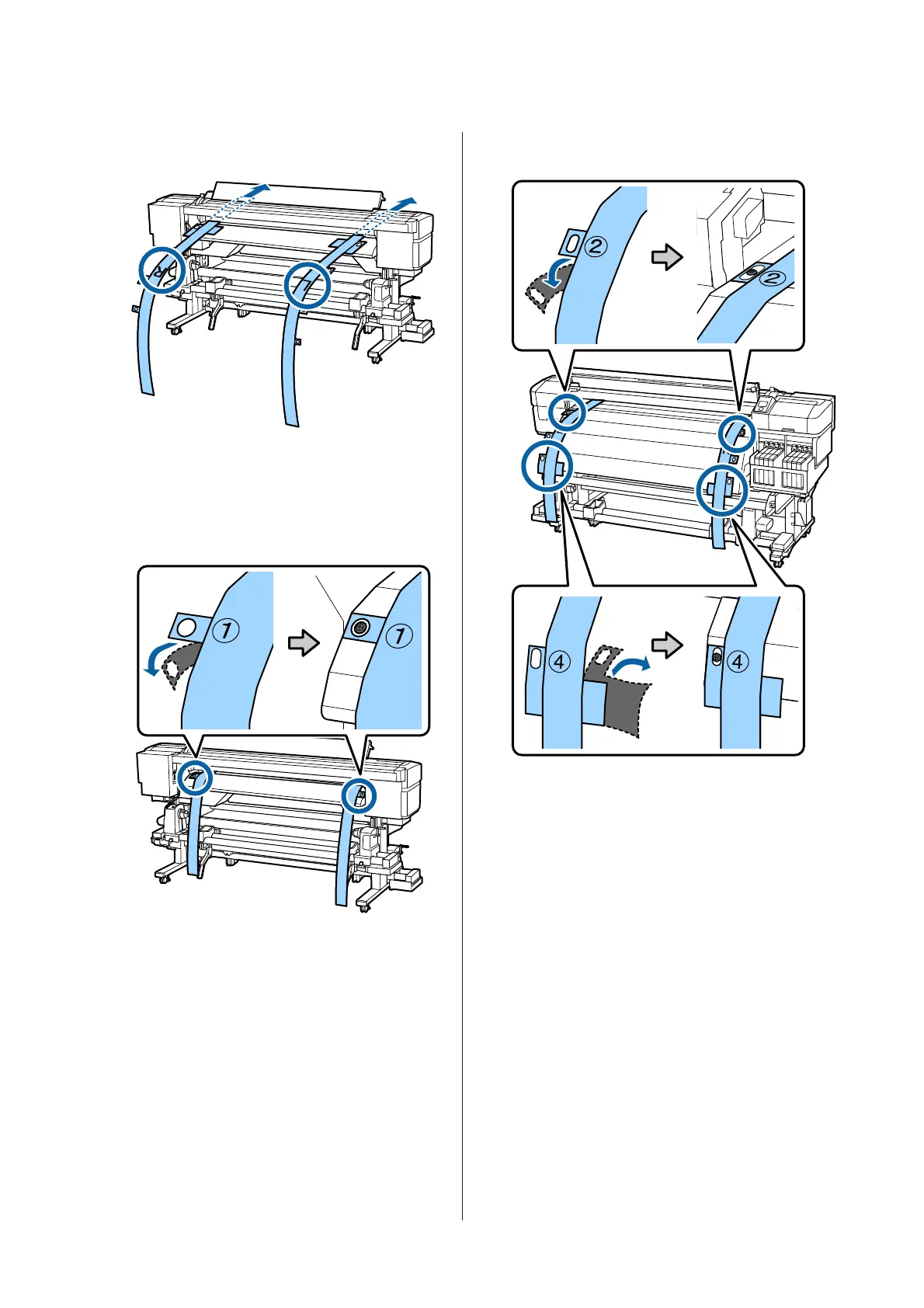

Pass the left and right sides of film b from the rear
to the front.
E
As shown in the illustration, align Hole 1 of film b
with the screws on the left and right edges of the
loading guide, and then adhere it.
If the film is being used for the first time, remove
the protective film on the reverse side.
F
As shown in the illustration, align Hole 2 and 4 of
film b at the front of the printer with the screws
on the left and right side of the after heater, and
then adhere them.
If the film is being used for the first time, remove
the protective film on the reverse side.
Align Hole 2 with the screw at the top section of
the after heater.
Align Hole 4 with a screw at the lead edge of the
after heater.
SC-F9200 Series User's Guide
Appendix
119
