O

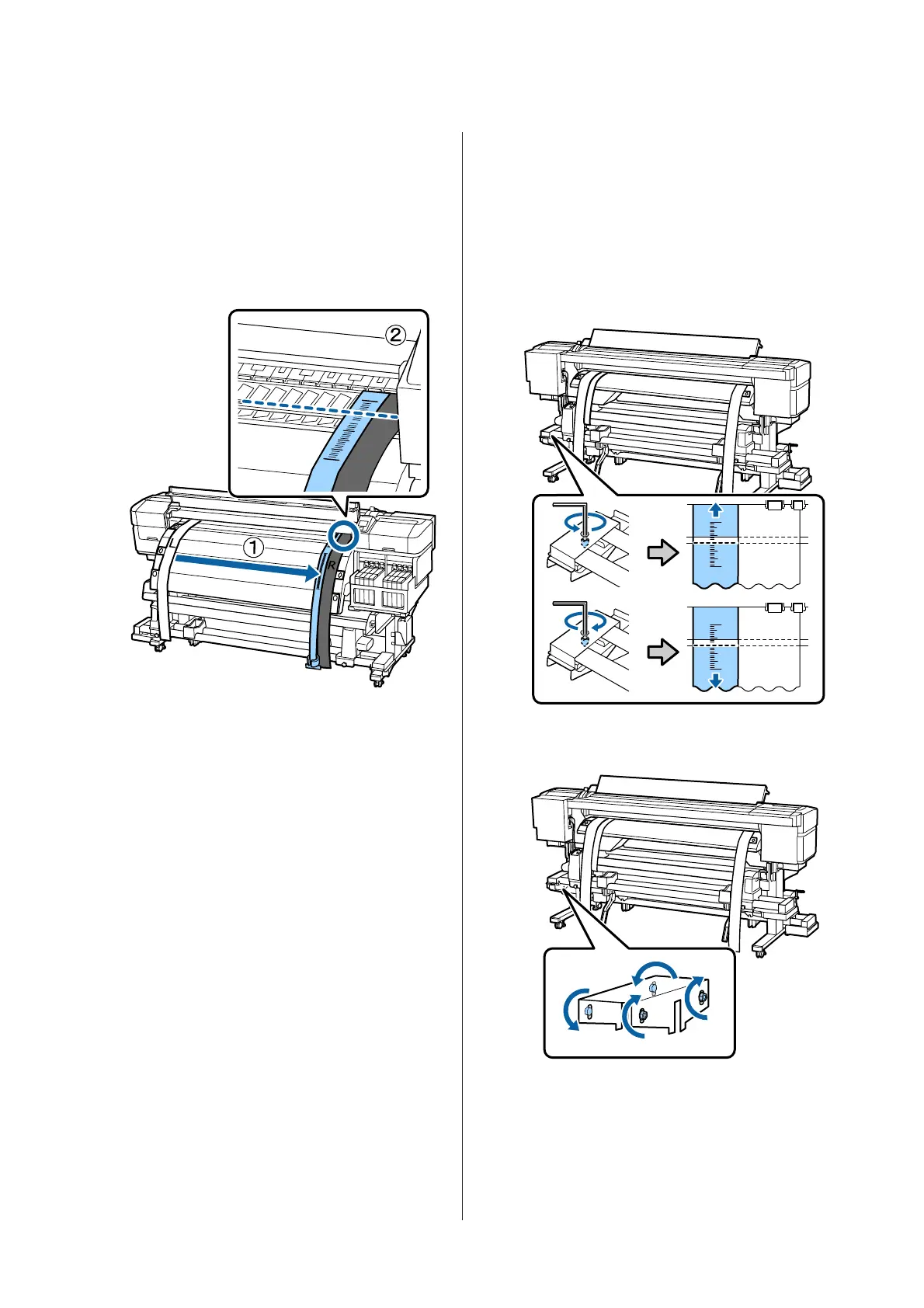

At the front and rear of the printer, raise film a
and move it so that it aligns with the right side of
film b tightly. After film a stops swinging, check
the scale at the edge of the plate on the platen and
on film a.
If the value is different from the left side, proceed
to Step 16. If the value is the same, proceed to Step
17.
P
While checking the scale of film a at the front of
the printer, make an adjustment on the rear side
of the printer.
If the adjustment screw is turned
counterclockwise, the scale moves back. If the
adjustment screw is turned clockwise, the scale
moves towards you. One turn of the screw moves
the line about 1 mm. If the value of this scale
matches the left side, the adjustment is complete.
Q
Use the large hexagon wrench to firmly secure
the 4 screws.
SC-F9200 Series User's Guide
Appendix
122
