c

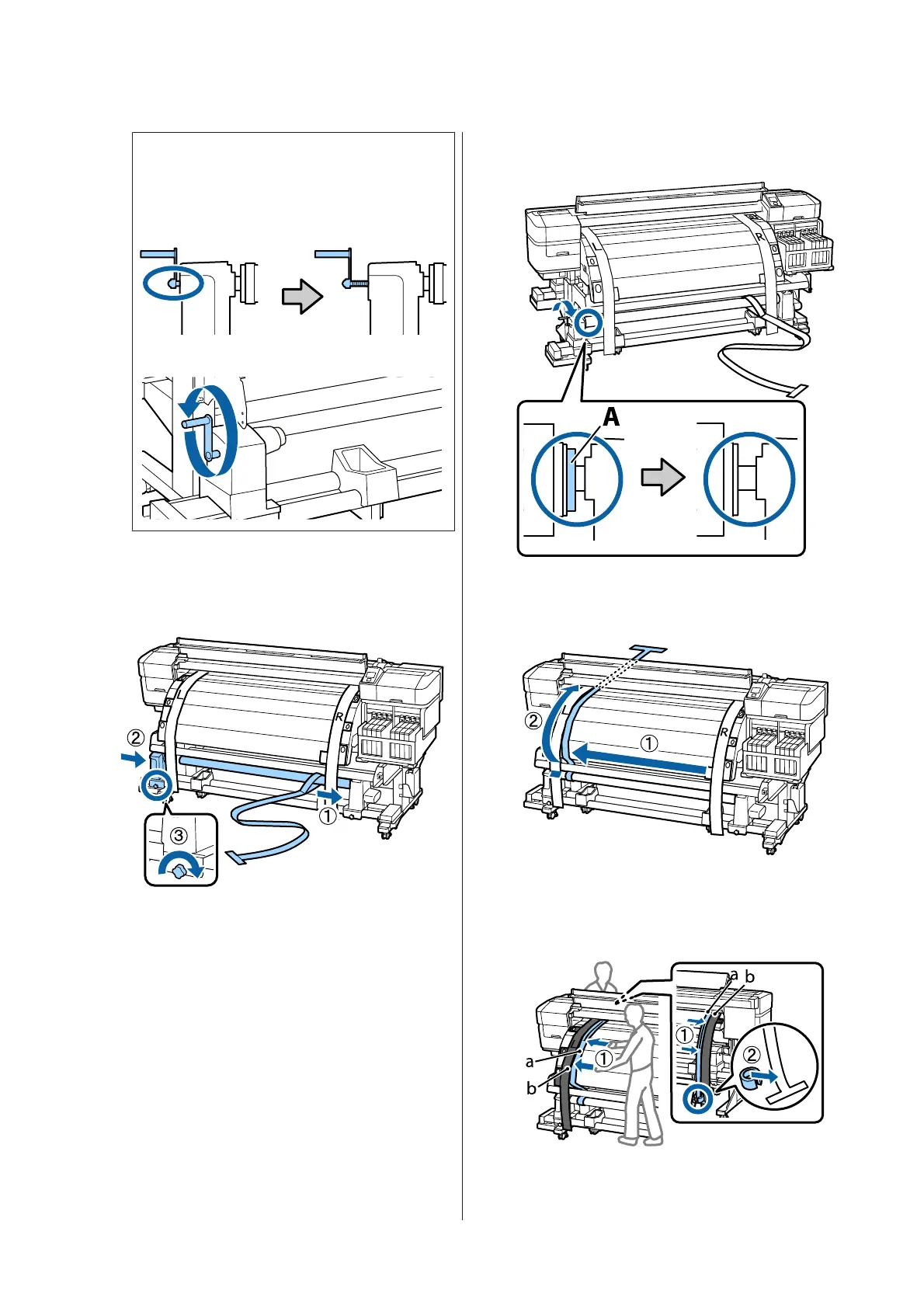

Important:
If the left roll core handle shaft is not visible,
rotate the handle as shown in the illustration
below until it stops.
C
Insert the roll core into the right roll holder. Next,
insert the left roll core holder into the roll core,
and then tighten the roll core holder locking
screw.
D
Rotate the handle until part A in the illustration
below is fully inserted.
E
Bring film a to the left side of film b. Pass the lead
edge of film a between the media guide bar and
after heater, and then insert it into the printer.
F
While checking at the front and rear of the
printer, align film a with film b tightly.
At the rear of the printer, attach a counterweight
to film a.
SC-F9200 Series User's Guide
Appendix
124
