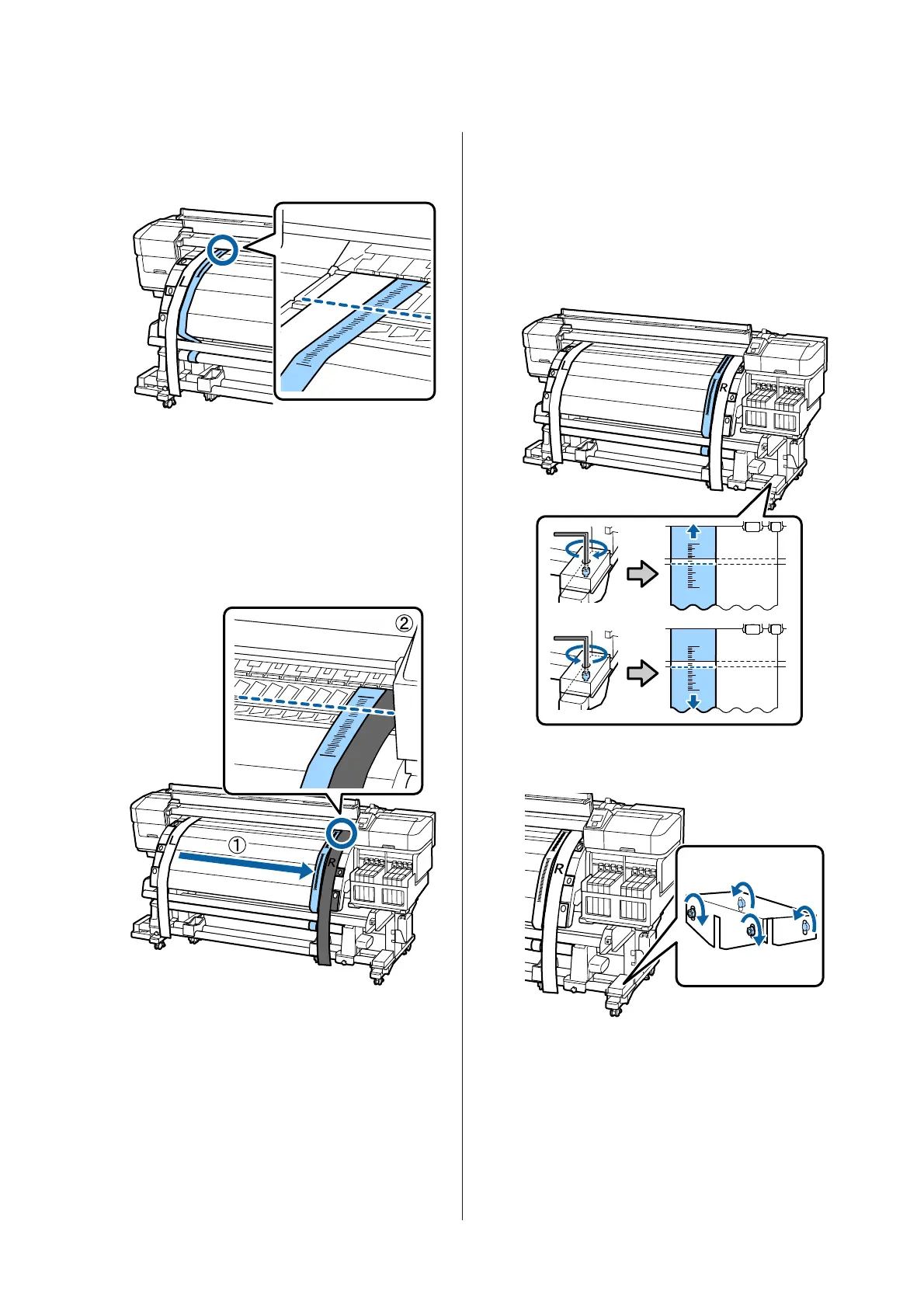

G
After film a stops swinging, make a note of the
value of the scale on film a where the edge of the
platen overlaps.
H
At the front and rear of the printer, raise film a
and move it so that it aligns with the right side of
film b tightly. After film a stops swinging, check
the scale at the edge of the plate on the platen and
on film a.
If the value is different from the left side, proceed
to Step 9. If the value is the same, proceed to Step
10.
I
While checking the scale of film a on the front
side of the printer, use the large hexagon wrench
for adjustment.
If the adjustment screw is turned clockwise, the
scale moves back. If the adjustment screw is
turned counterclockwise, the scale moves
towards you. One turn of the screw moves the
line about 1 mm.
J
Use the large hexagon wrench to firmly secure
the 4 screws.
SC-F9200 Series User's Guide
Appendix
125
