R

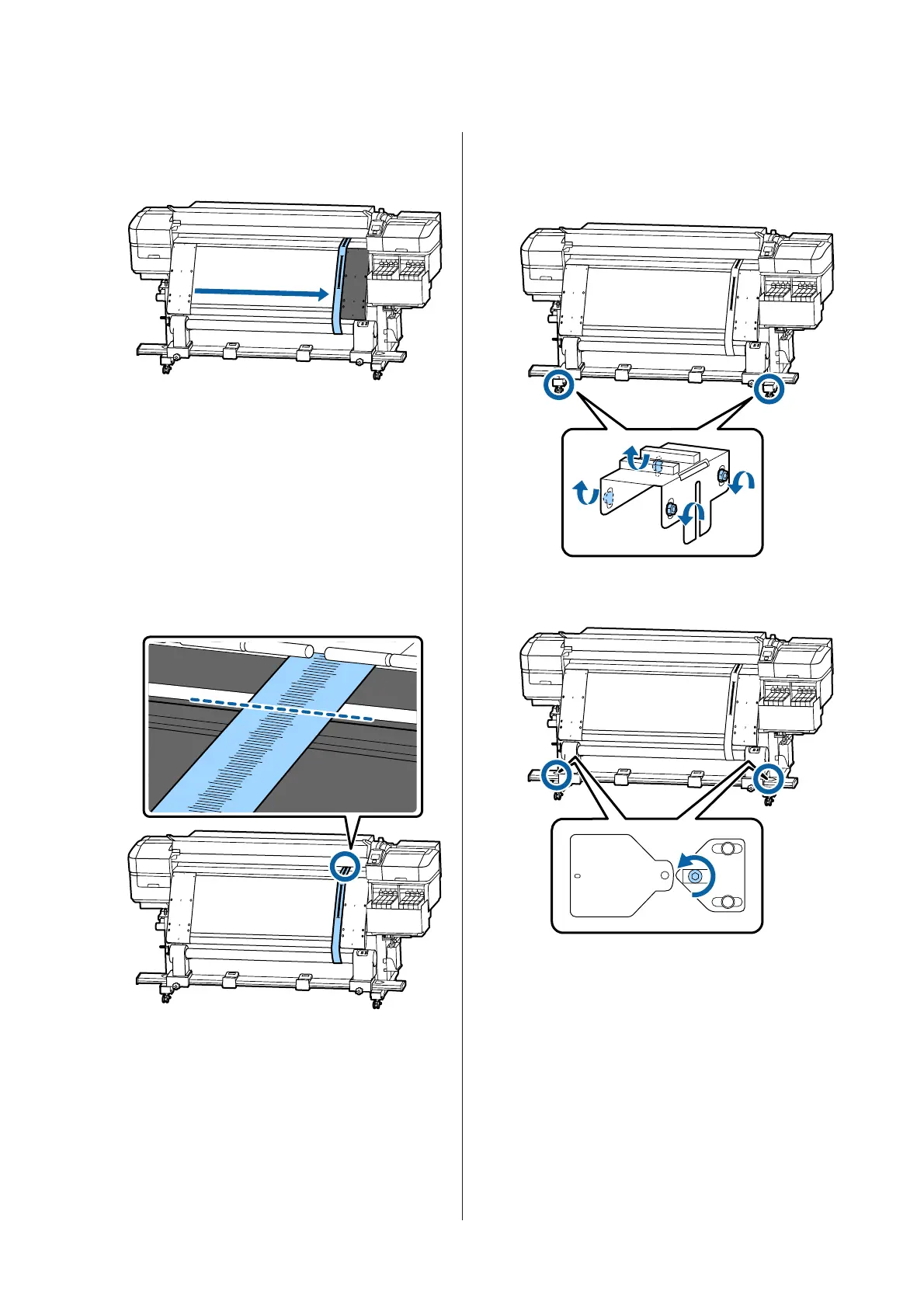

Raise film a at the front and back of the printer.
Move it so that it aligns perfectly along the film
b on the right.
S
After film a is stable, make note of the value of
the scale at the front edge of the white line on
the platen.
If the difference between the values of both
sides is more than 0.5 mm, proceed to the
adjustments in the next section.
If the difference is under 0.5 mm, no
adjustments are necessary. Refer to the
following to remove the films.
U “Completing Adjustments” on page 127
Adjustments
A
Loosen all of the metal fixing screws in the
illustration below.
B
Completely loosen the adjustment screws on
both sides in the illustration below.
SC-F9300 Series User's Guide
Appendix
125
