SE Group Confidential (Related Staff Only)
Adjustment Details of Adjustments 42
SC-P600 Revision D
5. Tilt the Printer Mechanism at about 45 degrees, and loosen the screw that secures the Center Support
Bushing Cam.

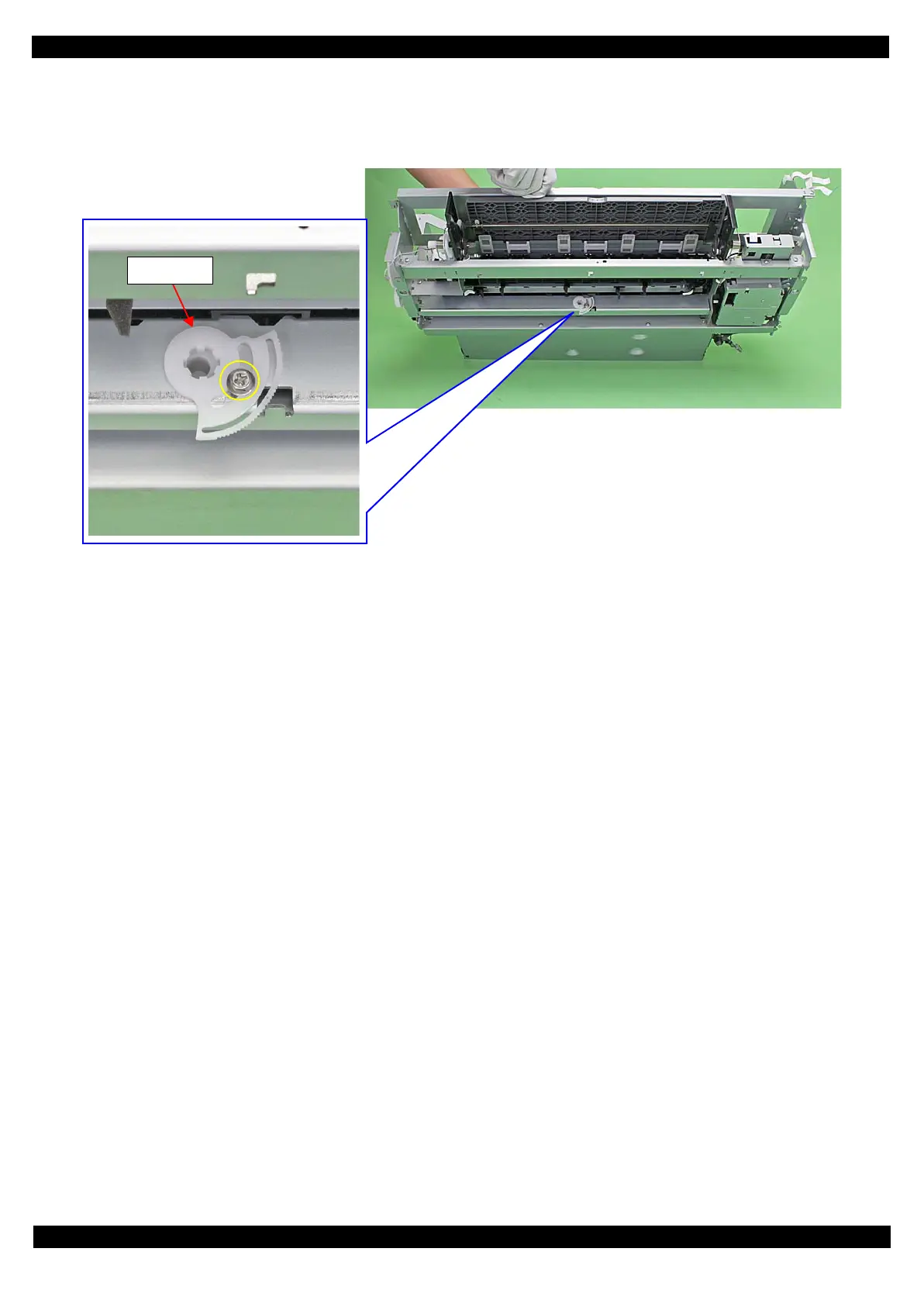

Figure 2-5. Center Support Bushing Cam and the Screw
Center Support
Bushing Cam
