Epson SC-P600 Service Manual

SE Group Confidential (Related Staff Only)
Adjustment Details of Adjustments 43
SC-P600 Revision D

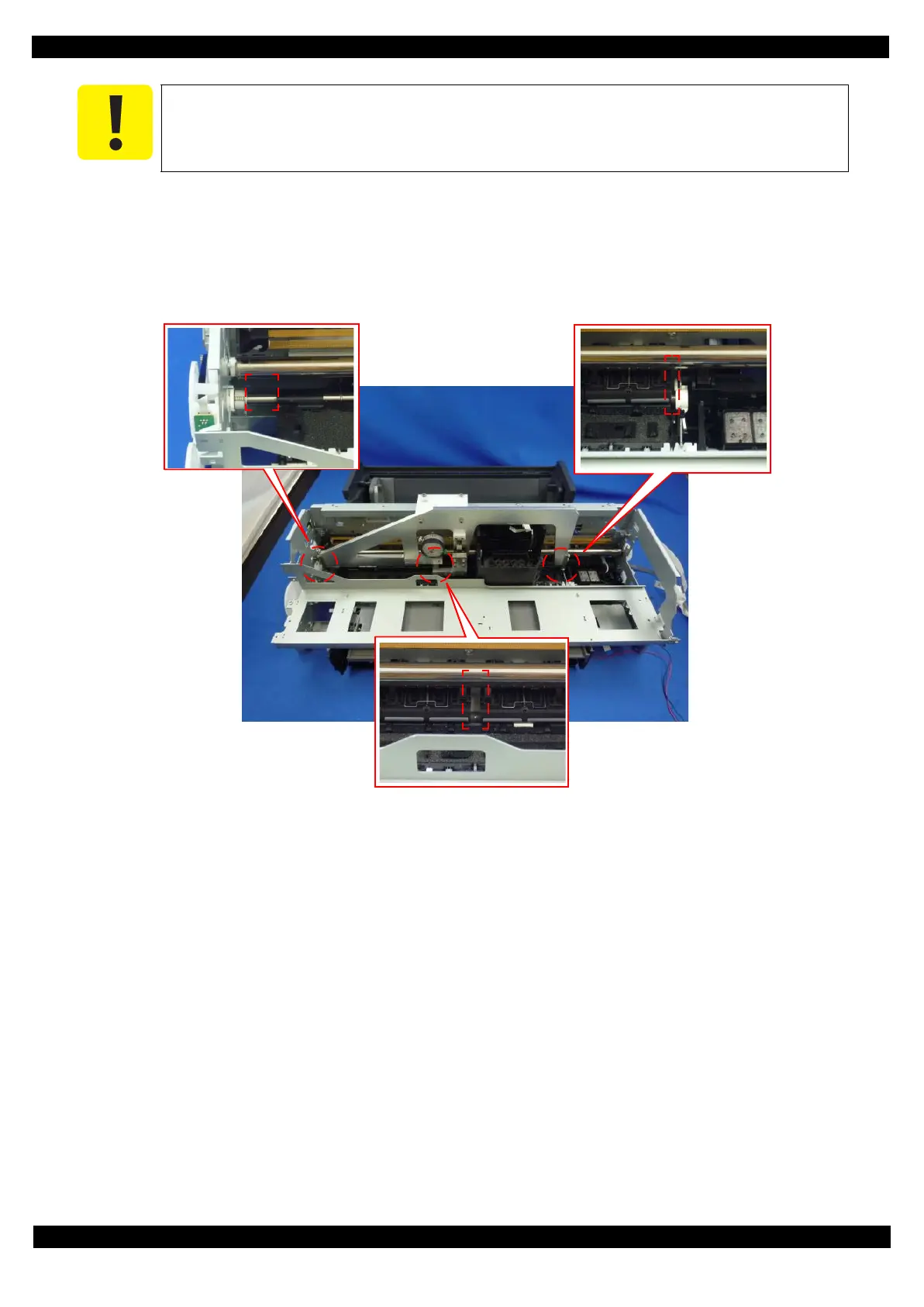

6. Set the jig in place on the PF Roller Shaft as shown in the figure below.

Left side of the Standard Position: Inside of PF Roller’s left end (E-ring)
 Right side of the Standard Position: Clearance between PF Roller right end (Right Bushing 8) and left end of Upper
Paper Guide
 Adjustment Position: Clearance between the 2nd Upper Paper Guide and 3rd one from the left
Figure 2-6. Setting the PF Roller Adjustment Jig (1)
Check for any dirt on the PF Roller Shaft when performing the following procedure.

Epson SC-P600 Specifications

General

Print Technology	Inkjet
Max Print Resolution	5760 x 1440 dpi
Number of Ink Colors	9
Ink Cartridge Configuration	Individual cartridges
Connectivity	USB 2.0, Ethernet, Wi-Fi
Ink Colors	Cyan, Magenta, Yellow, Gray
Max Print Size	13" x 19"
Media Handling	Sheet feed, roll paper
Paper Sizes	A4, A3, 13" x 19", 4" x 6", 5" x 7", 8" x 10"
Borderless Printing	Yes
Display	2.7" Color LCD
Weight	35.3 lb (16 kg)
Ink Type	UltraChrome HD
