Adjustment Details of Adjustments 65
SC-P600 Revision D

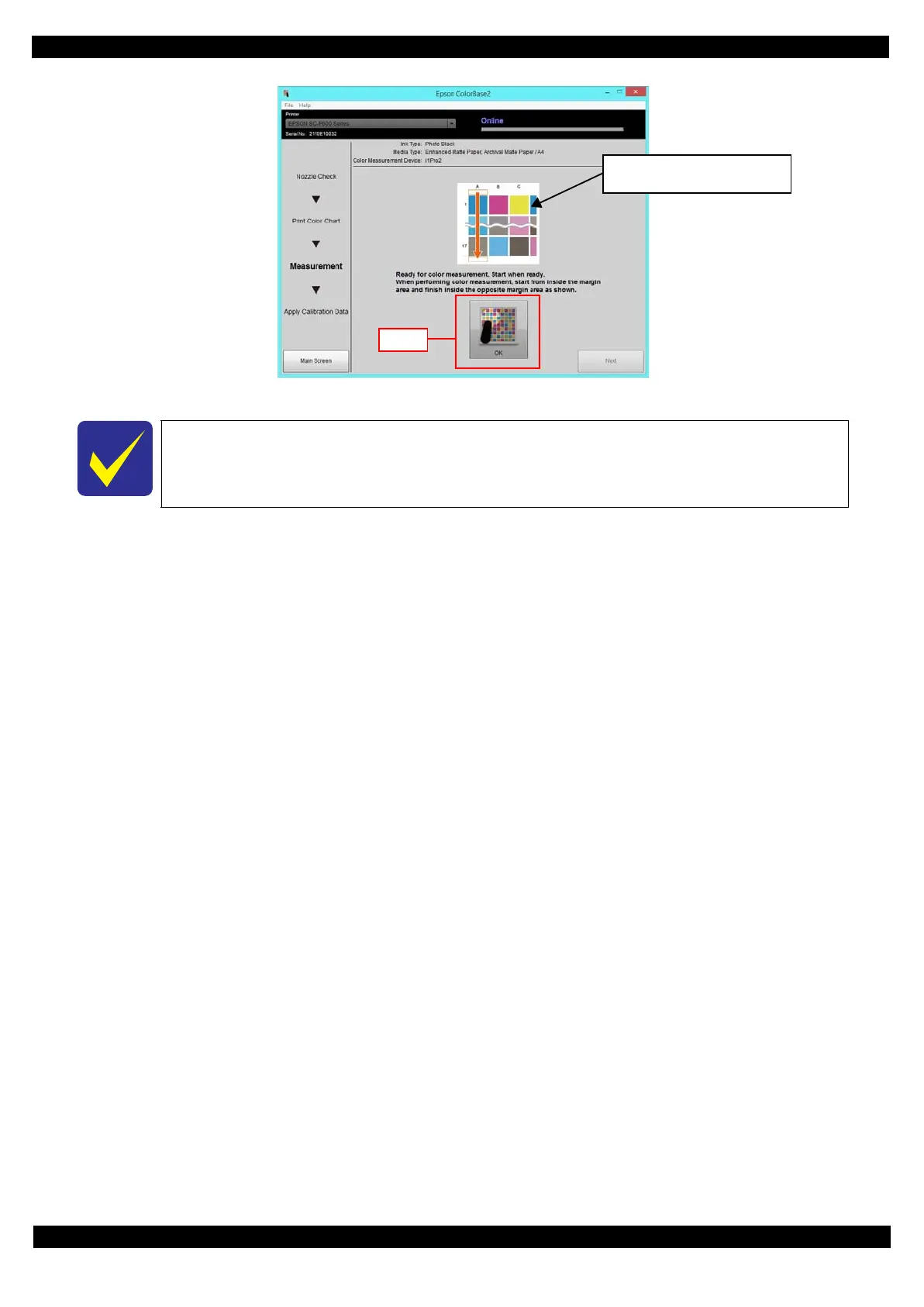

Figure 2-36. Preparation for calibration
16. Perform color measurement according to the instruction on the window. Press and hold the button on the calibrator
and wait for one to two seconds, and then keep holding it and slide the calibrator at a steady speed in the
measuring direction from the measurement start point shown in
Figure 2-35.
i1Pro: Slide the calibrator on the calibration patches from left to right in approximately five seconds.
i1Pro2: Slide the calibrator on the calibration patches from left to right in approximately five seconds, and let go of
the button once. And then, press and hold the button on the calibrator again, and then keep holding it and
slide the calibrator on the calibration patches from right to left in approximately five seconds.
When the color measurement is successfully complete, "O" appears, and then perform the color measurement on
the next row.
To avoid rubbing the color patches, set the color chart and perform the calibration with the
display on the tool window rotated in 90 degrees counterclockwise.
The chart for User Mode is used
on the tool window.
