Replacing Paper
48
G

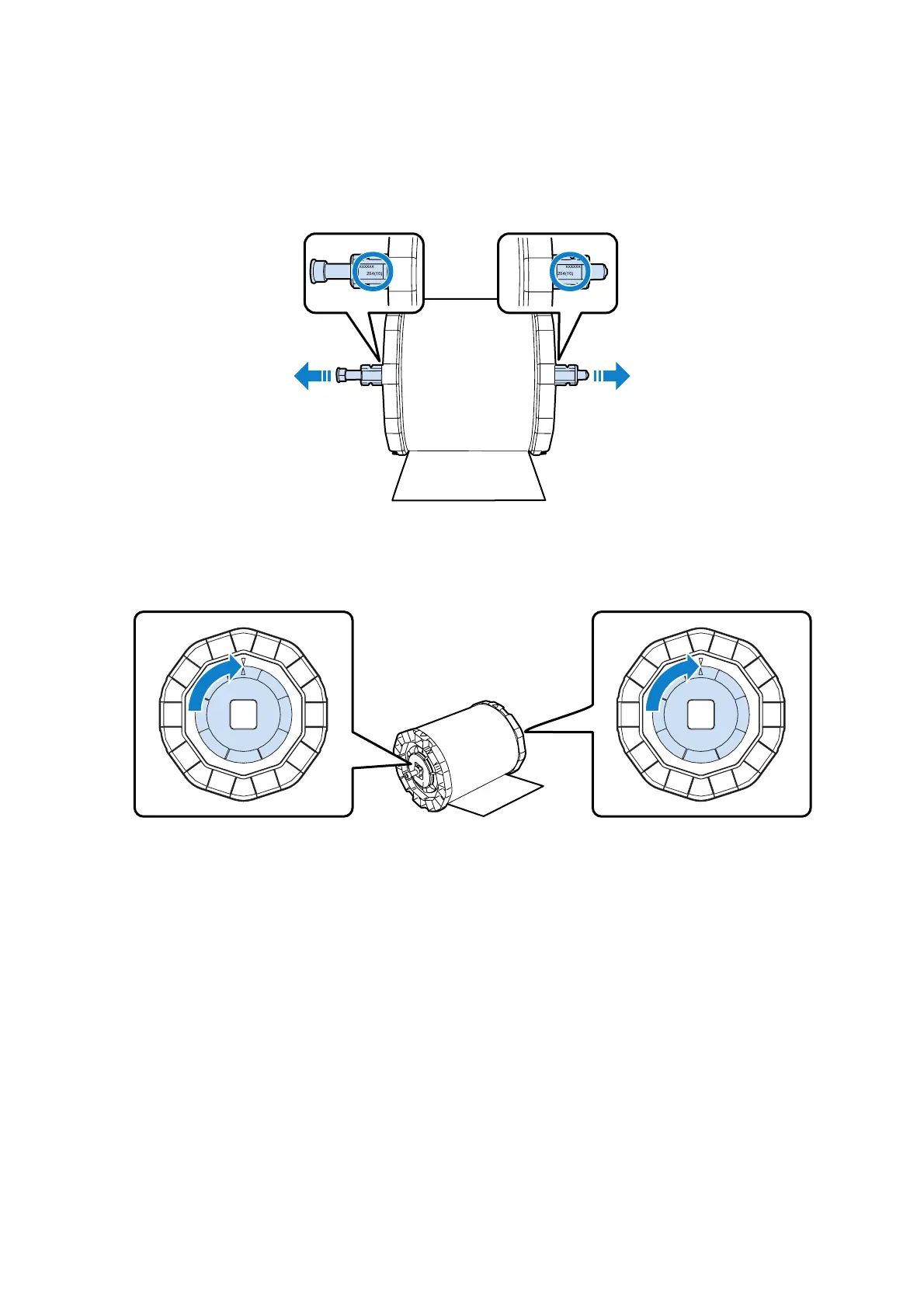

Adjust the position of the Spool so that it is at the center of the Spindle unit.
Match the edges of the flanges to the scale "|" marks on the paper size display according to the width of the
paper.
H
Lock the flanges on both sides.
Rotate the center sections of the flanges clockwise to lock them in place.
