10 PS6500 Rack Mount Instructions

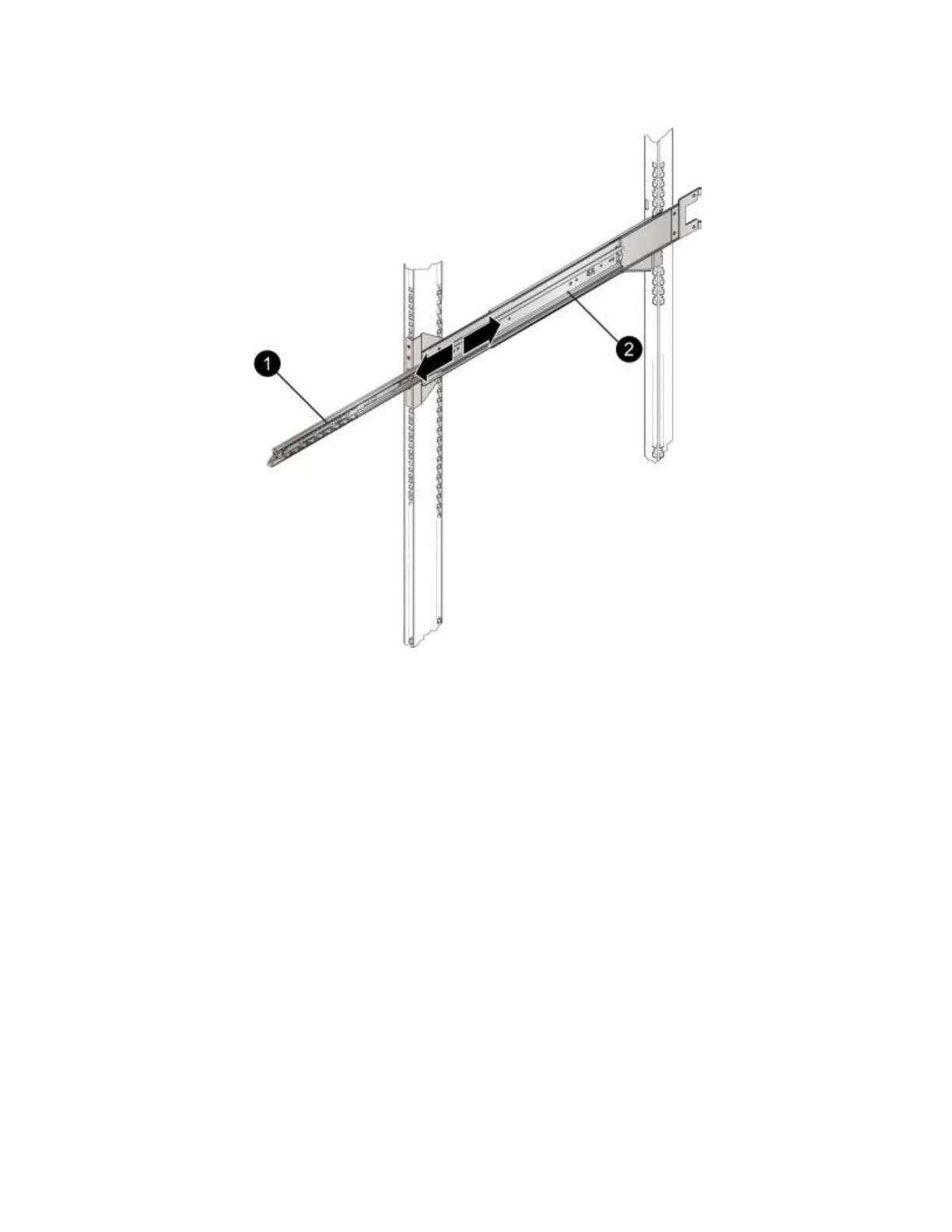

Figure 8 Fully Extend the Telescoping Sections
2. With assistance, lift the chassis as described below, and slide the enclosure rails into the mounting
rails. See Figure 9.
Use a box lifter (preferred) or two people, one on each side, to raise the chassis to the height of
the mounting rails.
Move the chassis as close to the rack as possible.
Keep the chassis level as you engage the enclosure rails and the mounting rails. You may have to
gently press the mounting rails closer to the chassis to line up and engage the enclosure rails.
Do not force the rails to engage or you may damage the ball bearing race. If you meet resistance,
the chassis may not be level.
