Putting into Operation
2. Putting into Operation

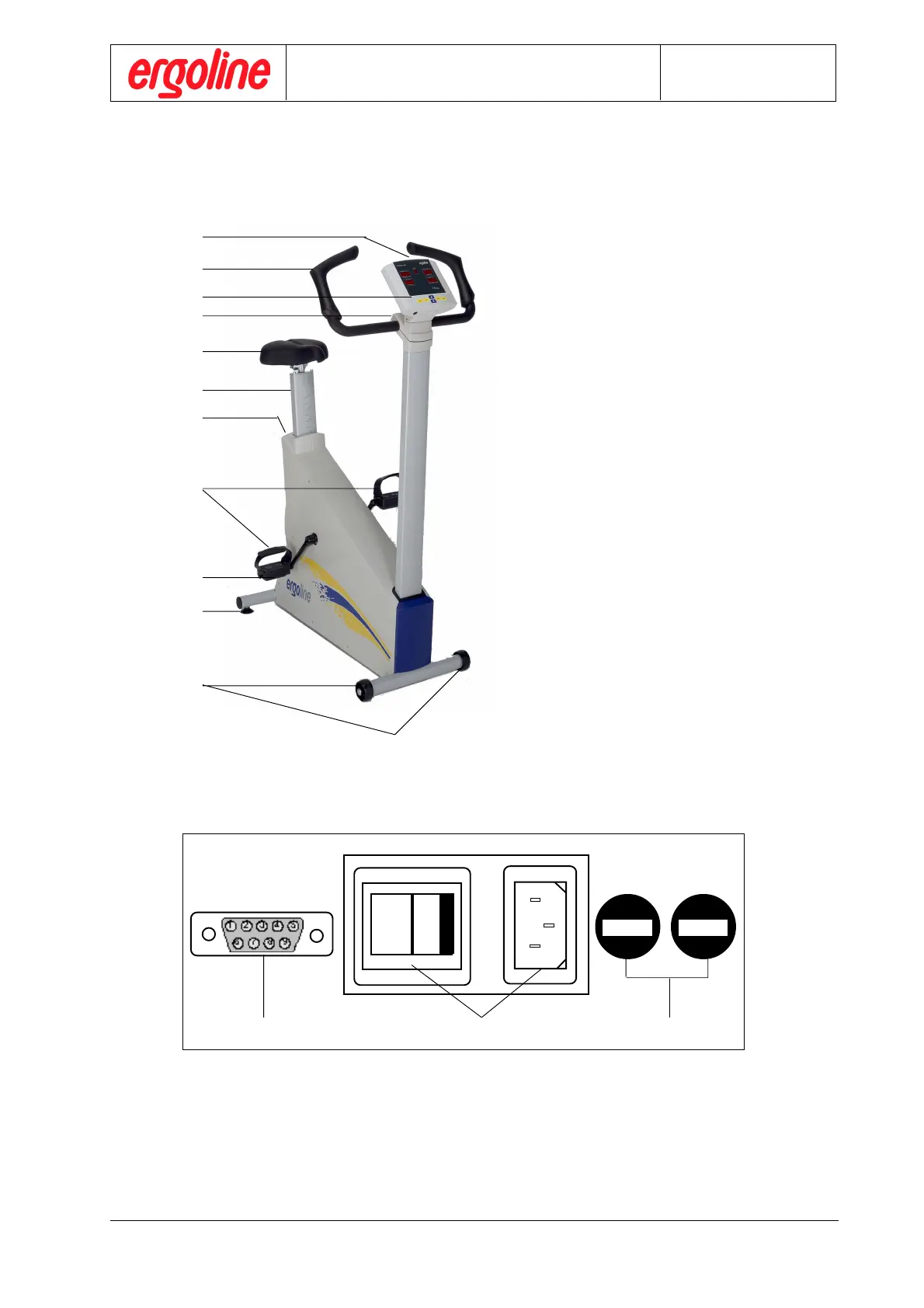

2.1 Description
Mains power socket, mains fuses and mains switch as well as serial interface
1 Mains socket with mains switch
2 Fuses
3 Digital interface (RS 232)
4
6
5
7
8
9
10
11
1,2,3
12
13
1,2,3 Mains power socket, mains fuses and
mains switch as well as serial interface
4 Pedal speed display for patient
5 Control panel
6 Handlebars
7 Clamp lever to adjust angle of the handle-
bars
8 Saddle
9 Saddle pole
10 Clamp lever for saddle height adjustment
11 Pedals
12 Leveling feet for optimal stability
13 Transport casters
1
0
Fuses
Fuses
312
