scaling function and to display the measured value in mV.
3) During mV measurement, the instrument is able to measure and
display up to 5 % more than the upper programmed value or 5%
less than the lower programmed value.
3.7 - OHM MEASUREMENTS

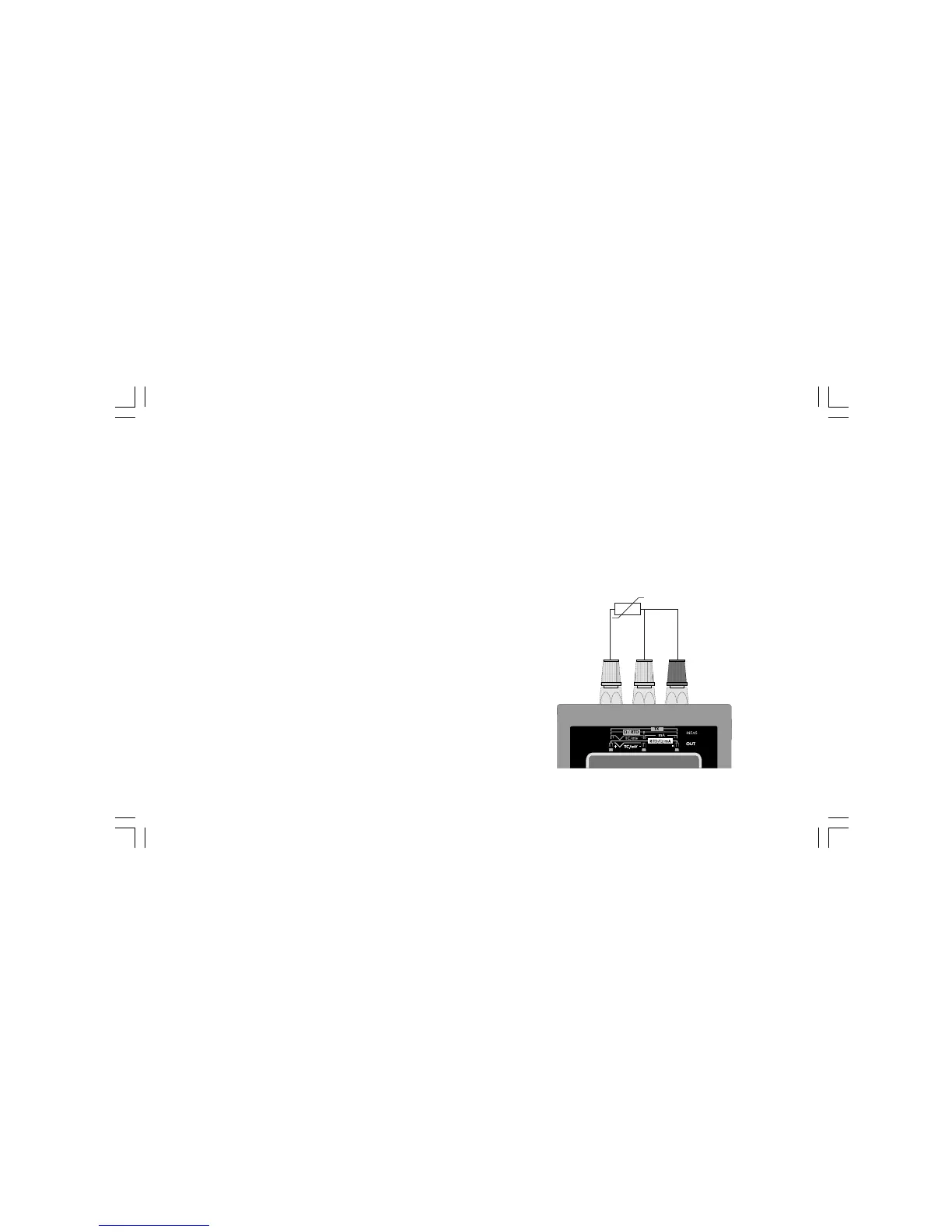

CONNECTION FOR OHM MEASUREMENTS
The short circuit between terminals B and C may be made:
A) close to the instrument; in this case the measured value is equal to
the line resistance plus the sensor resistance (i.e. potentiometer).
B) close to the sensor; in this case, the measured value will be
equal to the sensor resistance only.
The instrument is able to compensate a line resistance up to
100 Ohm/wire.
ABC
