ESAB CUTMASTER 100
INTRODUCTION 300X5397
2-2

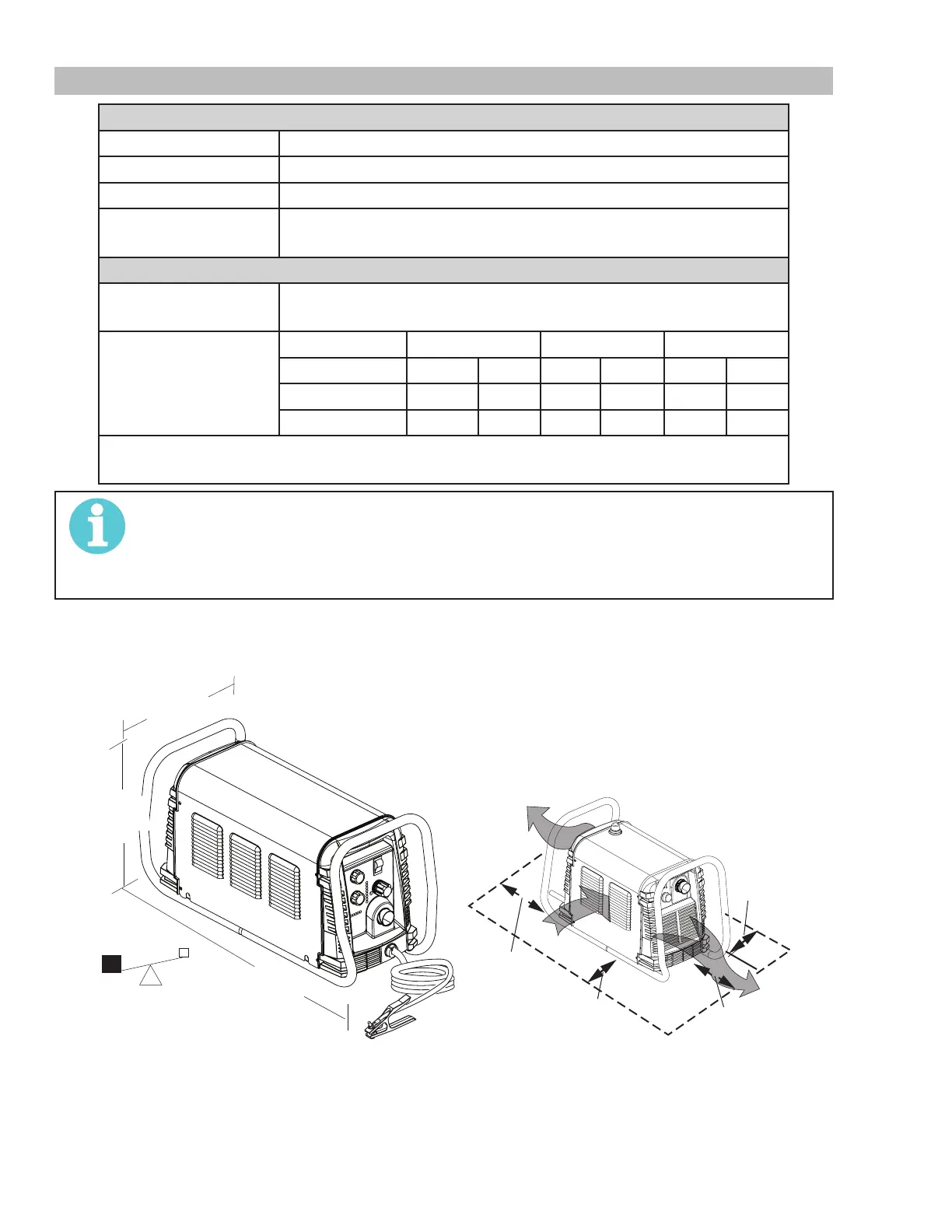

2.04 PowerSupplySpecications
ESABCutmaster100PowerSupplySpecications
Input Power 400 VAC (360 - 440 VAC), Three Phase, 50/60 Hz
Input Power Cable Power Supply includes input cable.
Output Current 30 - 100 Amps, Continuously Adjustable
Power Supply Gas
Filtering Ability
Particulates to 5 Microns
ESAB Cutmaster 100 Power Supply Duty Cycle *
Ambient Tempera-
ture
Duty Cycle Ratings @ 40° C (104° F)
Operating Range 0° - 50° C
All Units
Duty Cycle 60% 80% 100%
Ratings IEC CE IEC CE IEC CE
Current
100A -- 80A 80A 70A 70A
DC Voltage
120 -- 112 112 92 108
* NOTE: The duty cycle will be reduced if the primary input power (AC) is low or
the output voltage (DC) is higher than shown in this chart.
NOTE!
IEC Rating is determined as specied by the International Electro-Technical Commission.
These specications include calculating an output voltage based upon power supply rated
current. To facilitate comparison between power supplies, all manufacturers use this out-
put voltage to determine duty cycle.
Power Supply Dimensions & Weight Ventilation Clearance Requirements
30"
762 mm
63 lb / 28.6 kg
12"
305 mm
15"
381 mm
Art # A-12887
6"
150 mm
24"
610 mm
6"
150 mm
6"
150 mm
Art # A-07925_AB
