ESAB CUTMASTER 120
Manual 0-5380 OPERATION
4T-5

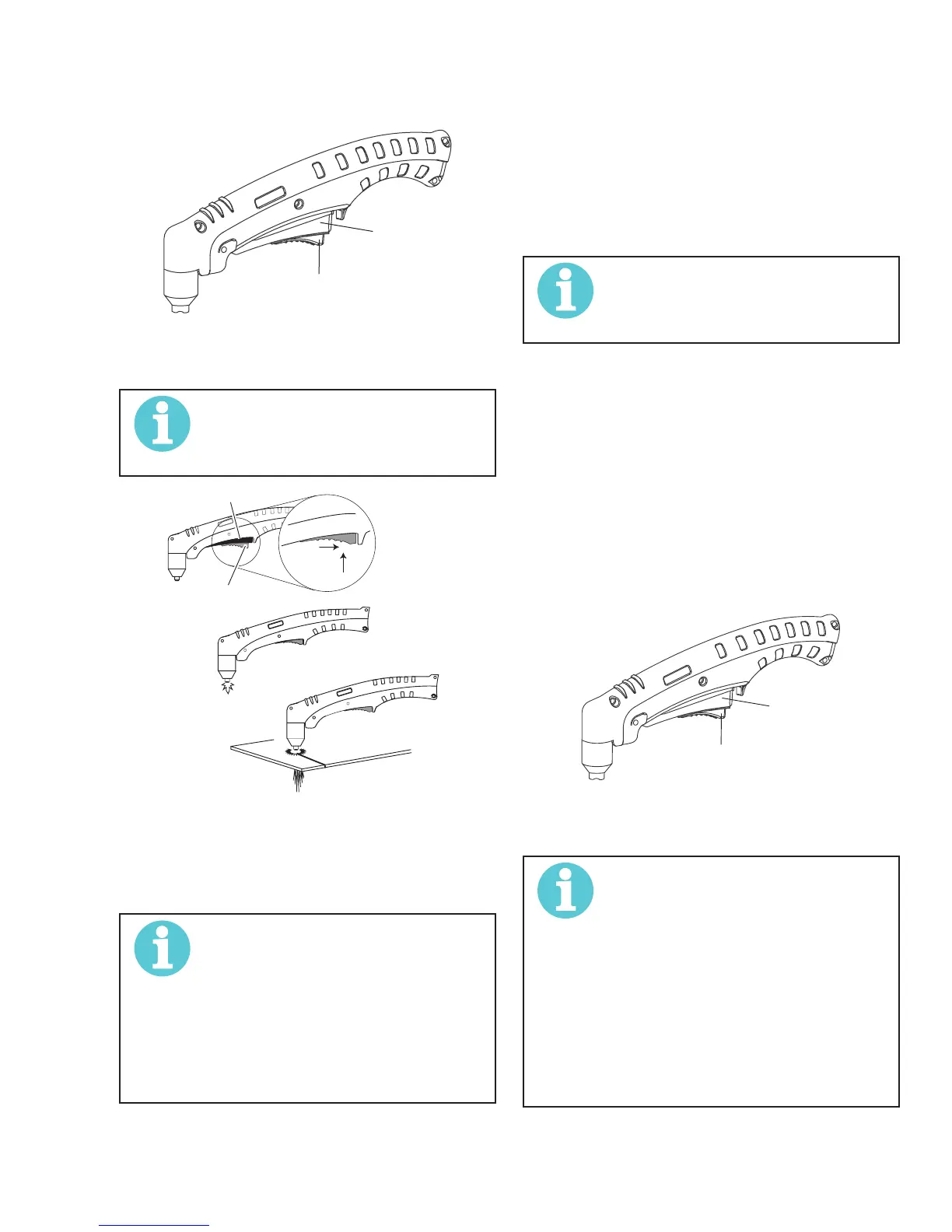

5. Slide the trigger release toward the back of the
torch handle while simultaneously squeezing the
trigger. The pilot arc will start.
A-02986
Tr igger
Tr igger Release
6. Bringthetorch within transfer distancetothe
work. The main arc will transfer to the work, and
the pilot arc will shut OFF.
NOTE!
The gas preflow and postflow are a char-
acteristic of the power supply and not a
function of the torch.
3
4
Art # A-03383
Tr igger
2
1
Tr igger Release
7. Cut as usual. Simply release the trigger assem-
bly to stop cutting.
8. Follow normal recommended cutting practices
as provided in the power supply operator's
manual.
NOTE!
When the shield cup is properly installed,
there is a slight gap between the shield cup
and the torch handle. Gas vents through
this gap as part of normal operation. Do
not attempt to force the shield cup to close
this gap. Forcing the shield cup against
the torch head or torch handle can damage
components.
Piercing With Hand Torch
1. The torch can be comfortably held in one hand
or steadied with two hands. Position the hand to
press the Trigger on the torch handle. With the
hand torch, the hand may be positioned close to
the torch head for maximum control or near the
back end for maximum heat protection. Choose
the technique that feels most comfortable and
allows good control and movement.
NOTE!
The tip should never come in contact with
the workpiece except during drag cutting
operations.
2. Angle the torch slightly to direct blowback
particles away from the torch tip (and operator)
rather than directly back into it until the pierce
is complete.
3. In a portion of the unwanted metal start the
pierce off the cutting line and then continue the
cut onto the line. Hold the torch perpendicular
to the workpiece after the pierce is complete.
4. Hold the torch away from your body.
5. Slide the trigger release toward the back of the
torch handle while simultaneously squeezing the
trigger. The pilot arc will start.
A-02986
Tr igger
Tr igger Release
6. Bringthetorch within transfer distancetothe
work. The main arc will transfer to the work, and
the pilot arc will shut OFF.
NOTE!
The gas preflow and postflow are a char-
acteristic of the power supply and not a
function of the torch.
When the shield cup is properly installed,
there is a slight gap between the shield cup
and the torch handle. Gas vents through
this gap as part of normal operation. Do
not attempt to force the shield cup to close
this gap. Forcing the shield cup against
the torch head or torch handle can damage
components.
