ESAB CUTMASTER A60 - Power Supply Specifications

CUTMASTER A60
INTRODUCTION 0-5428
2-2

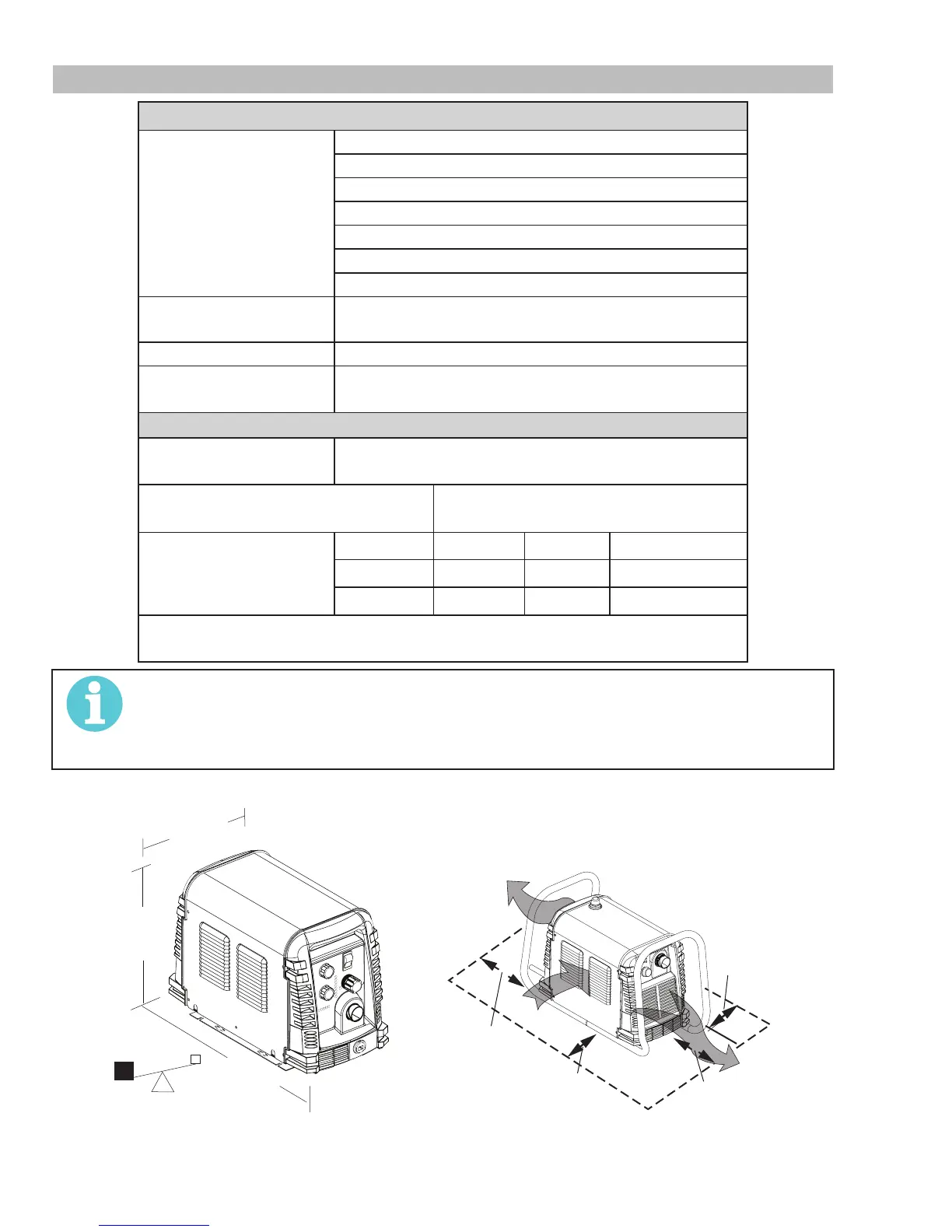

2.04 PowerSupplySpecications
CutmasterA60PowerSupplySpecications
Input Power
208 / 230 VAC (187 - 253 VAC), Single Phase, 60 Hz
230 VAC (187 - 253 VAC), 3 Phase, 50/60 Hz
380 VAC (360 - 440 VAC), 3 Phase, 50/60 Hz
400 VAC (360 - 440 VAC), 3 Phase, 50/60 Hz
460 VAC (414 - 506 VAC), Single Phase, 60 Hz
460 VAC (414 - 506 VAC), 3 Phase, 60 Hz
600 VAC (540 - 630), 3 Phase, 60 Hz
Input Power Cable
Power Supply includes input cable. Cable for 208/230V
input power includes molded plug.
Output Current 20 - 80 Amps, Continuously Adjustable
Power Supply Gas Filtering
Ability
Particulates to 5 Microns
Cutmaster A60 Power Supply Duty Cycle *
Ambient Temperature
Duty Cycle Ratings @ 40° C (104° F)
Operating Range 0° - 50° C
IEC Rating
All Units
Duty Cycle 40% 60% 100%
Current
80 Amps 65 Amps 50 Amps
DC Voltage
112 106 100
* NOTE: The duty cycle will be reduced if the primary input power (AC) is low or the
output voltage (DC) is higher than shown in this chart.
NOTE!
IEC Rating is determined as specied by the International Electro-Technical Commission. These
specications include calculating an output voltage based upon power supply rated current. To fa-
cilitate comparison between power supplies, all manufacturers use this output voltage to determine
duty cycle.
Power Supply Dimensions & Weight Ventilation Clearance Requirements
20.8"
0.528 m
43 lb / 19.5 kg
10"
254 mm
13.78"
350 mm
Ar
t # A-08305
6"
150 mm
24"
610 mm
6"
150 mm
6"
150 mm
Art # A-07925_AB
