ESAB CUTMASTER A60 - Primary Input Power Connections

CUTMASTER A60
INSTALLATION 0-5428
3-2

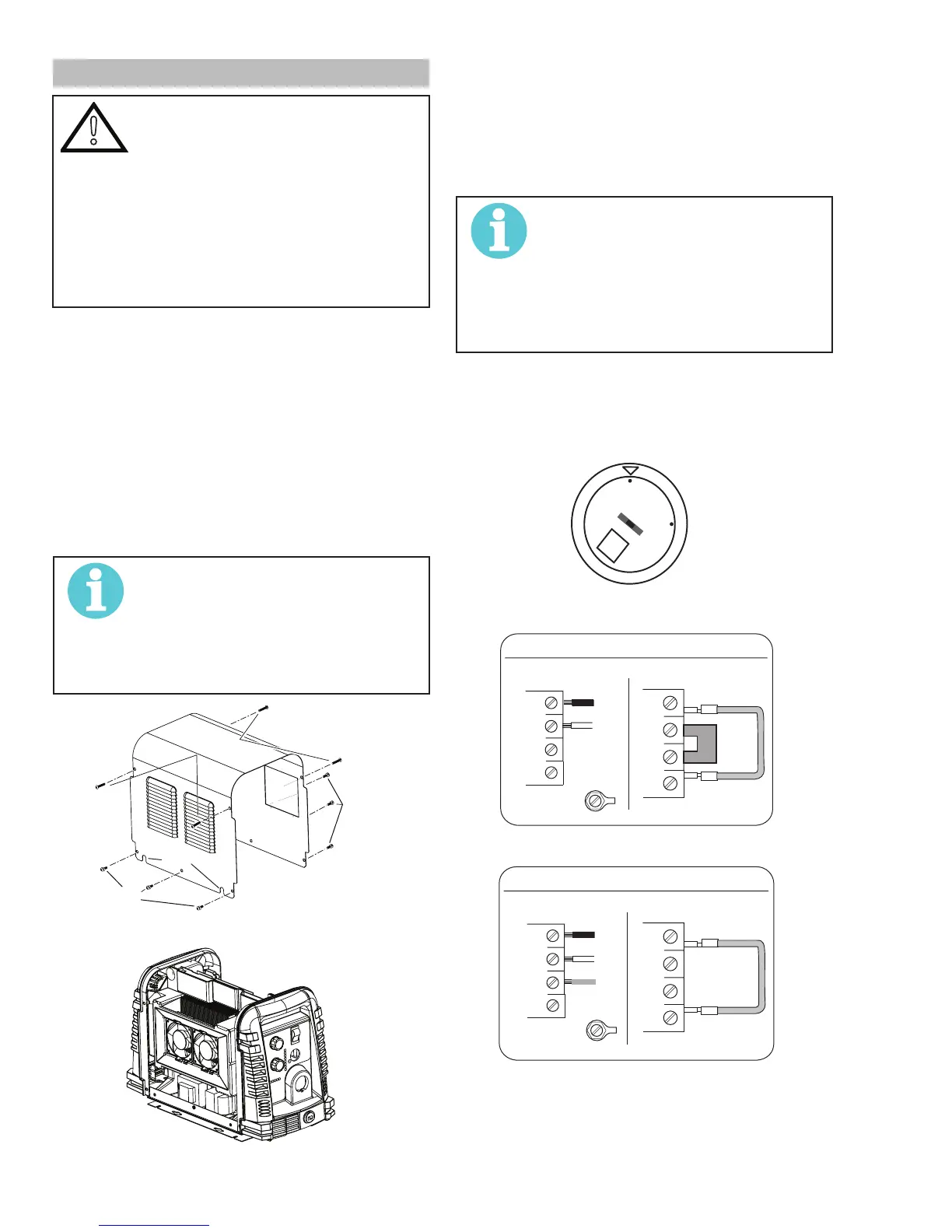

3.05 Primary Input Power Connections
!
CAUTION
Check your power source for correct
voltage before plugging in or connecting
the unit. Check the Voltage Selector at
the rear of the unit for correct setting be-
fore plugging in or connecting the unit.
The primary power source, fuse, and
any extension cords used must conform
to local electrical code and the recom-
mended circuit protection and wiring
requirements as specied in Section 2.
Most units are shipped from the factory with a 230 Volt
input power cable wired to the input contactor in the
single - phase conguration. The following illustrations
and directions are for changing that conguration to a
different voltage and or to three - phase operation or back
again if a change had already been made.
A. Cover Removal
1. Remove the upper and lower screws which
secure the cover to the main assembly. Do not
loosen the lower screws inside the cut out slots
in the bottom of the cover.
NOTE!
The upper screws and lower screws
are not the same. Do not mix them.
The upper screws are for threading into
the plastic of the front and rear panels.
DO NOT use the ner threaded lower
screws for this.
Upper
Screws
Lower
Screws
Lower
Screws
Art # A-08317
Slots
2. Carefully pull the Cover up and away from the
unit.
B. Cover Installation
1. Reverse previous procedures for cover installa-
tion.
NOTE!
When installing the upper screws, at-
tempt to reuse the original threads. The
easiest way to do this is by turning the
screw counter-clockwise until you feel
the threads line up, then begin to turn
the screw clockwise to tighten. Do not
over tighten.
C. Input Power Selection
Set the Input Voltage Selection Switch at the rear of the
unit based on the primary input voltage it is connected
to. Low is 208/230 VAC and high is 460 VAC.
S
LO
HI
Art # A-08316
D. Quick Guide to Phase Wiring
Art # A-07984_AB
Single-Phase (1ø) and Jumper Settings
L1
L2
L3
L4
Jumper L1 -L4
Jumper
L2-L3
L1
L2
L3
GND
L4
Single Phase Input Power Wiring
Art # A-07983_AB
Three-Phase (3ø) and Jumper Settings
L1
L2
L3
L4
Jumper L1 -L4
L1
L2
L3
GND
L4
Store copper jumper in spare parts box
Three Phase Input Power Wiring
