• Customer supplied
• May consist either of heavy rubber covered copper conductors (three power and one ground) or run
in solid or exible conduit.
• Sized according to the chart.
3.4.2 Input Conductors
1. Remove small rear panel of the plasma unit.
2. Thread cables through the access opening in the rear panel.
3. Secure cables with strain relief at the access opening.
4. Connect the ground lead to the stud on the chassis.
5. Connect the power leads to the primary terminals.
6. Connect the input conductors to the line (wall) disconnect.
7. Before applying power, replace the rear cover panel.
3.4.3 Input Connection Procedure

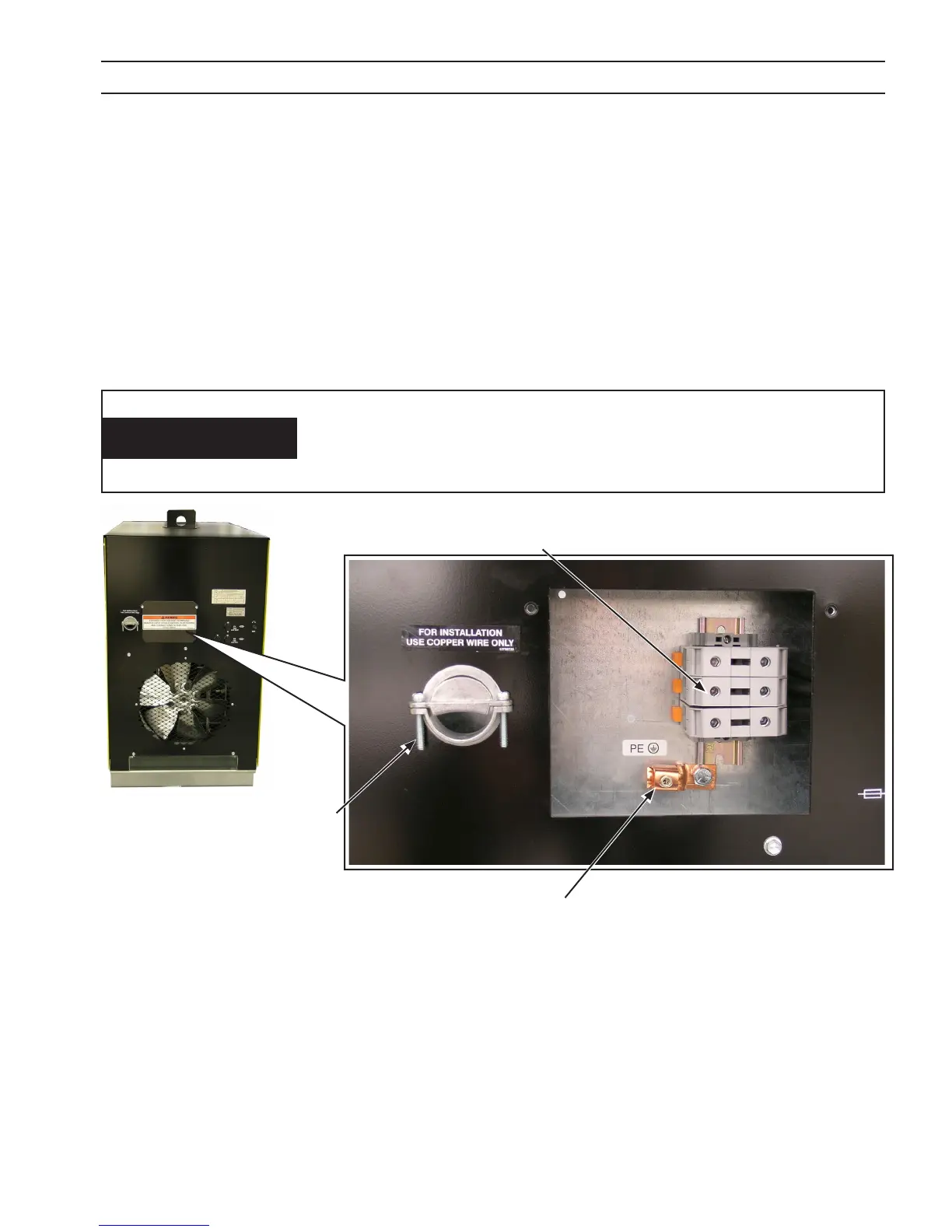

Power Input Cable Access
Opening (Rear Panel)
SECTION 3 INSTALLATION
Primary Terminals
Chassis Ground
IMPROPER GROUNDING CAN RESULT IN DEATH OR INJURY.
CHASSIS MUST BE CONNECTED TO AN APPROVED ELECTRICAL
GROUND. BE SURE GROUND LEAD IS NOT CONNECTED TO ANY PRI
MARY TERMINAL.
WARNING
