ESAB EPP-362 - OPERATION; 4.0 Operation

29
SECTION 4 OPERATION

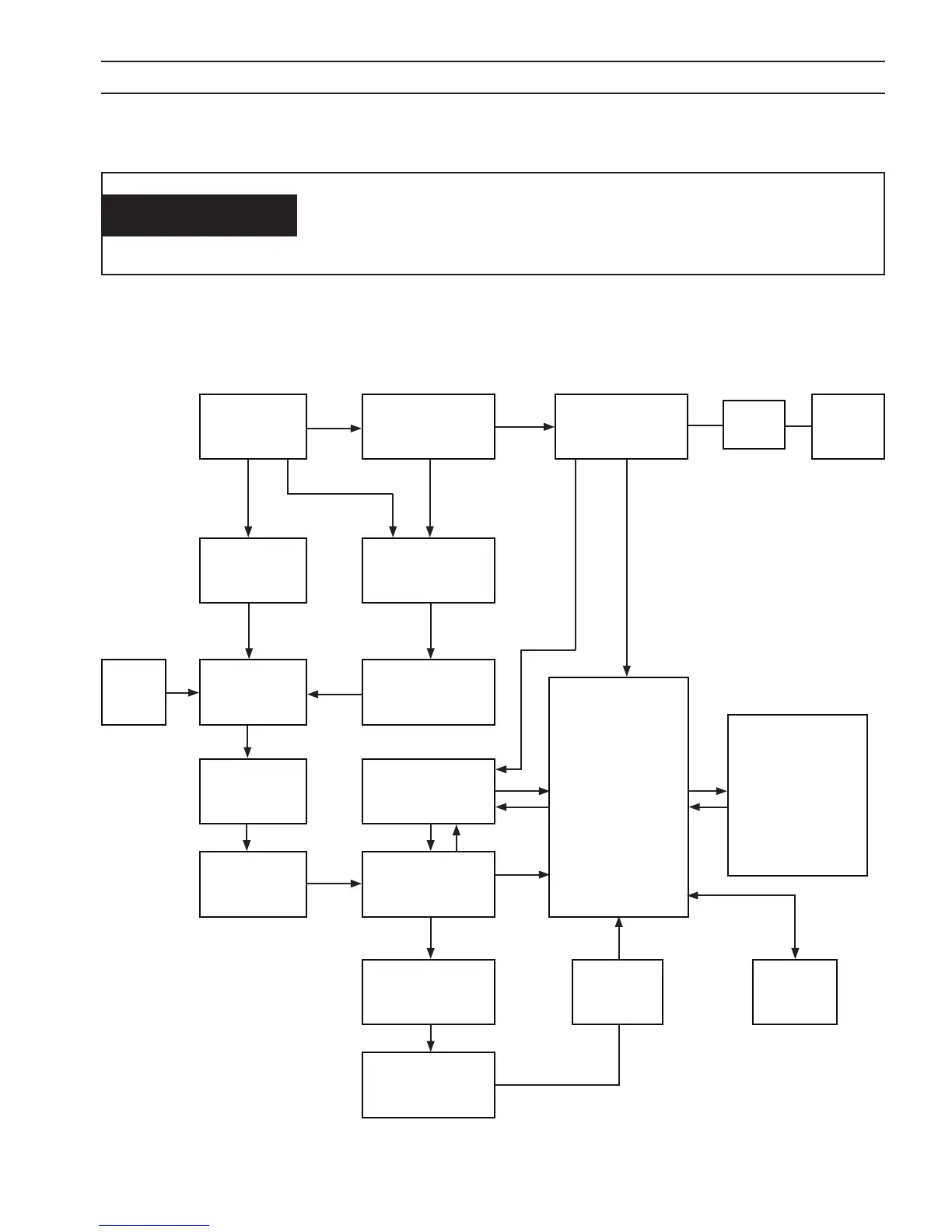

4.1 EPP-362 Block Diagram
DANGEROUS VOLTAGES AND CURRENT! ELECTRIC SHOCK CAN KILL!
BEFORE OPER ATION, ENSUR E INSTALLATIO N AND GROUNDING PRO 
CEDURES HAVE BEEN FOLLOWED. DO NOT OPERATE THIS EQUIP
MENT WITH COVERS REMOVED.
WARNING
4.0 Operation
200/230/380/
400/460/575V
3 ~ Input
Input
Fuses
(F1, F2)
1 ~ T2
Control
Transformer
Main
Contactor
Soft
Start
Relay
Main
Transformer
3 x 2 Ohm
300 Watt
Resistors
3 ~
Rectier
2 x 6000uf
450V
Capacitors
IGBT Driver
Board
4 x 400 Amp
IGBT’s
Inductor
Output
Main Control
Board
CNC
Interface
&
Isolation
Main
Fan
Fuse
F3
Pump
Hall Sensors
Relay Block
CAN
