SECTION 4 OPERATION

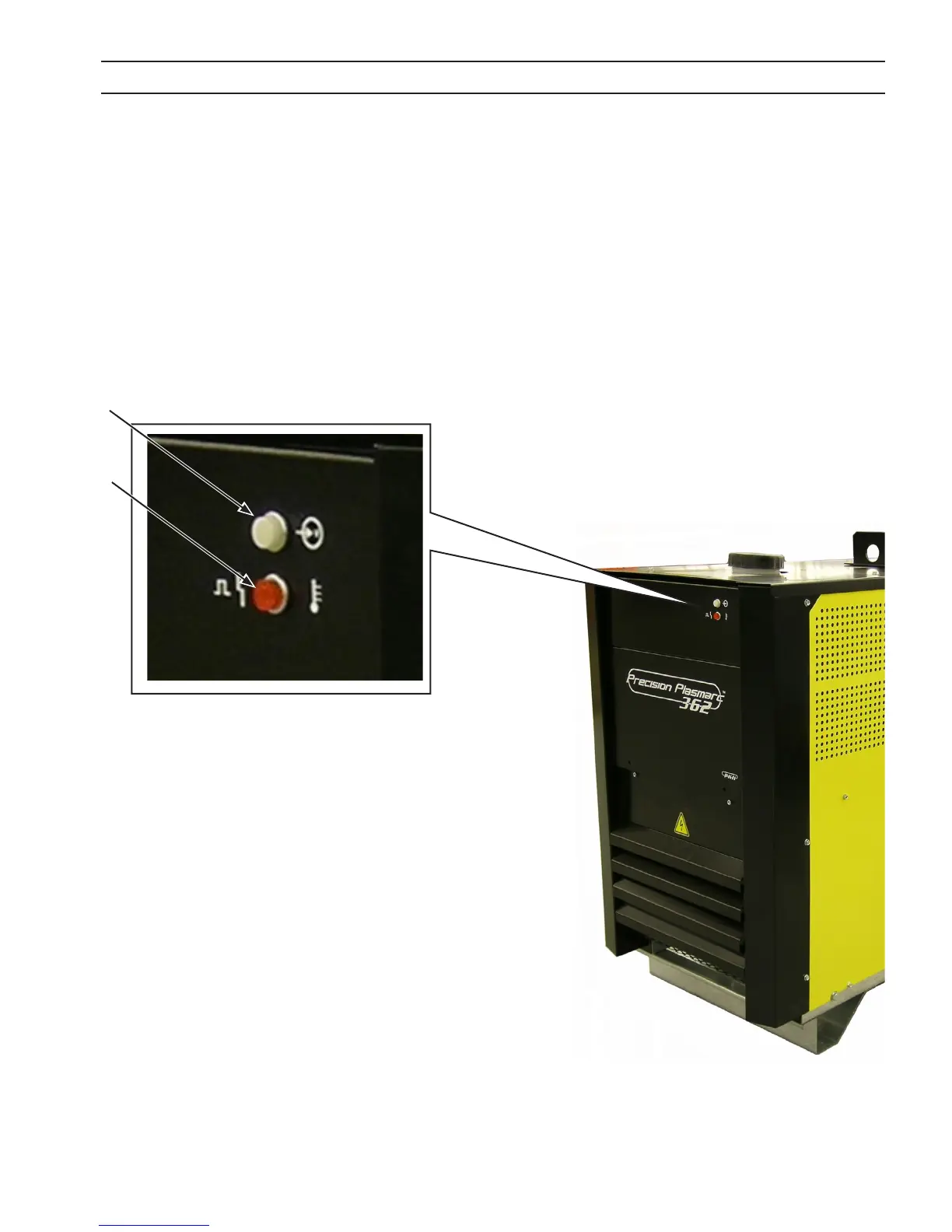

4.2 Display Panel
A - Power Light
This indicator illuminates when input power is applied to the power supply.
B - Fault Light
Whenever there is a fault, this indicator illuminates. This may stay ON continuously or ash with 50% ON/OFF
intervals depending on the type of fault. If the fault is a thermal failure, the indicator will stay ON continuously.
For other types of faults, the indicator will ash. The actual error/fault information is displayed on the CNC/pro-
cess controller through the CAN bus.
B
A
