20
SECTION 2 DESCRIPTION

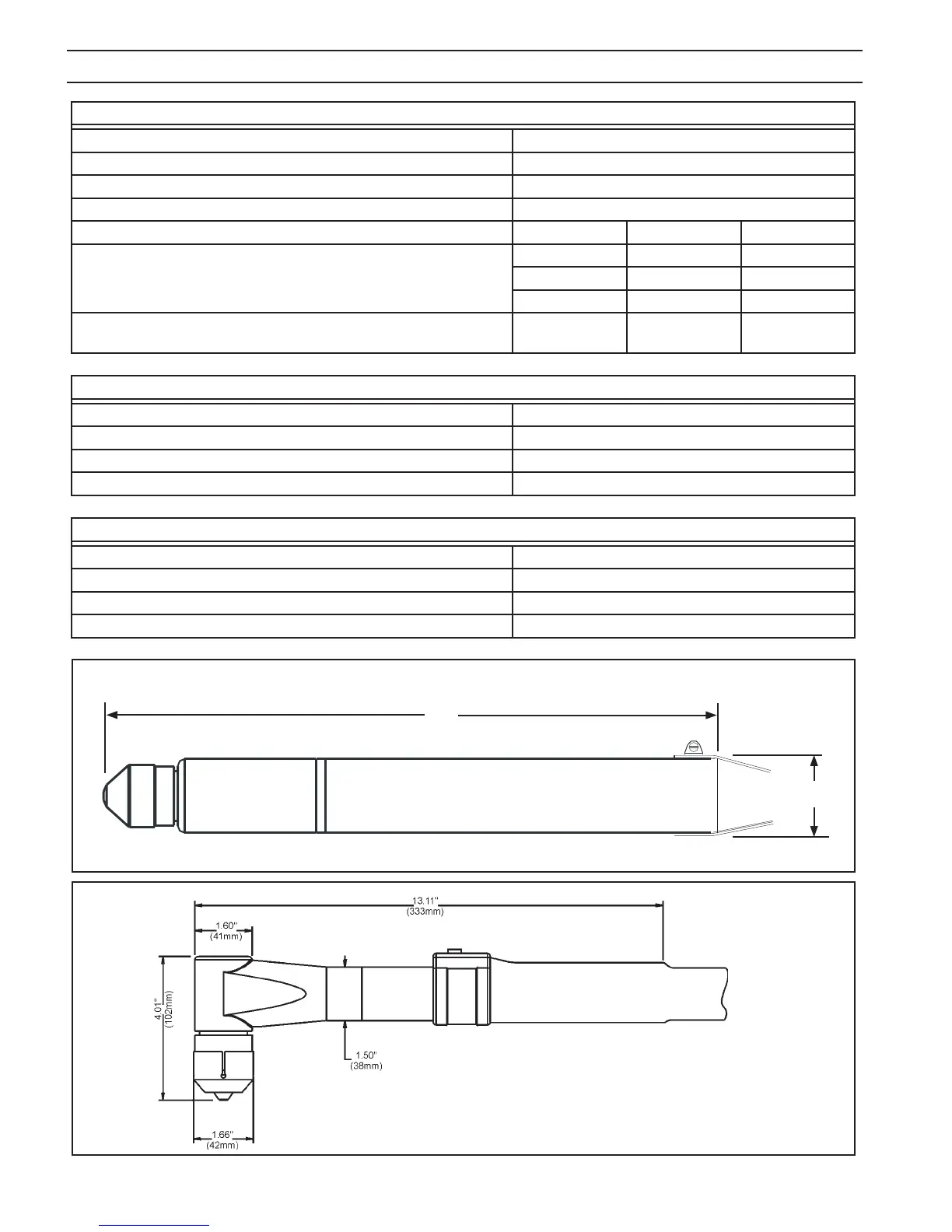

Figure 2 - PT-26 Manual Torch Dimensions
PT-26 Technical Specications (Plasma Gas)
Type of Gas N
2
, Air, AR-H
2
, N
2
-H
2
Pressure 100 psig (6.9 bar)
Flow 240 cfh (6.8 M
3
/h)
Purity Required O
2
- 99.5% min., N
2
-99.995% min., Air - clean and dry
Recommended Liquid Cylinder Service Regulators Inert Gas R-76-150-580LC 19977
Recommended cylinder 2-Stage Regulators Argon-Hydrogen R-77-75-350 998341
Nitrogen R-77-75-580 998343
Industrial Air R-77-150-590 998348
Recommended Heavy-Duty Hi-Flow
Station or Pipeline Regulators
Nitrogen R-76-75-034 19155
PT-26 Technical Specications (Starting Gas/Cutting Gas)
Type N
2
, Air (for Ar-H
2
Cut Gas Use N
2
or Ar-H
2
)
Pressure 100 psig (6.9 bar
Flow 200 cfh (5.66M
3
/h) @ 60 psig (4.1 bar)
Purity Required N
2
- 99% min., Air - clean and dry
PT-26 Technical Specications (Shield Gas)
Type N
2
or Air
Pressure 100 psig (6.9 bar) maximum
Flow 200 cfh (5.66 M
3
/h) @ 85 psig (5.86 bar)
Purity Required Nitrogen - 99% minimum, Air - clean and dry
Figure 1 - PT-26 In-line Torch Dimensions
2”
(50.8)
16.5”
(419mm)
