25
ELECTRIC SHOCK CAN KILL! Precaution-
ary measures should be taken to provide
maximum protection against electric
shock. Be sure that all power is off by
opening the line (wall) disconnect switch
by unplugging the power cord to the unit
or use proper lock out safety procedures
when making connections inside of the
power source.

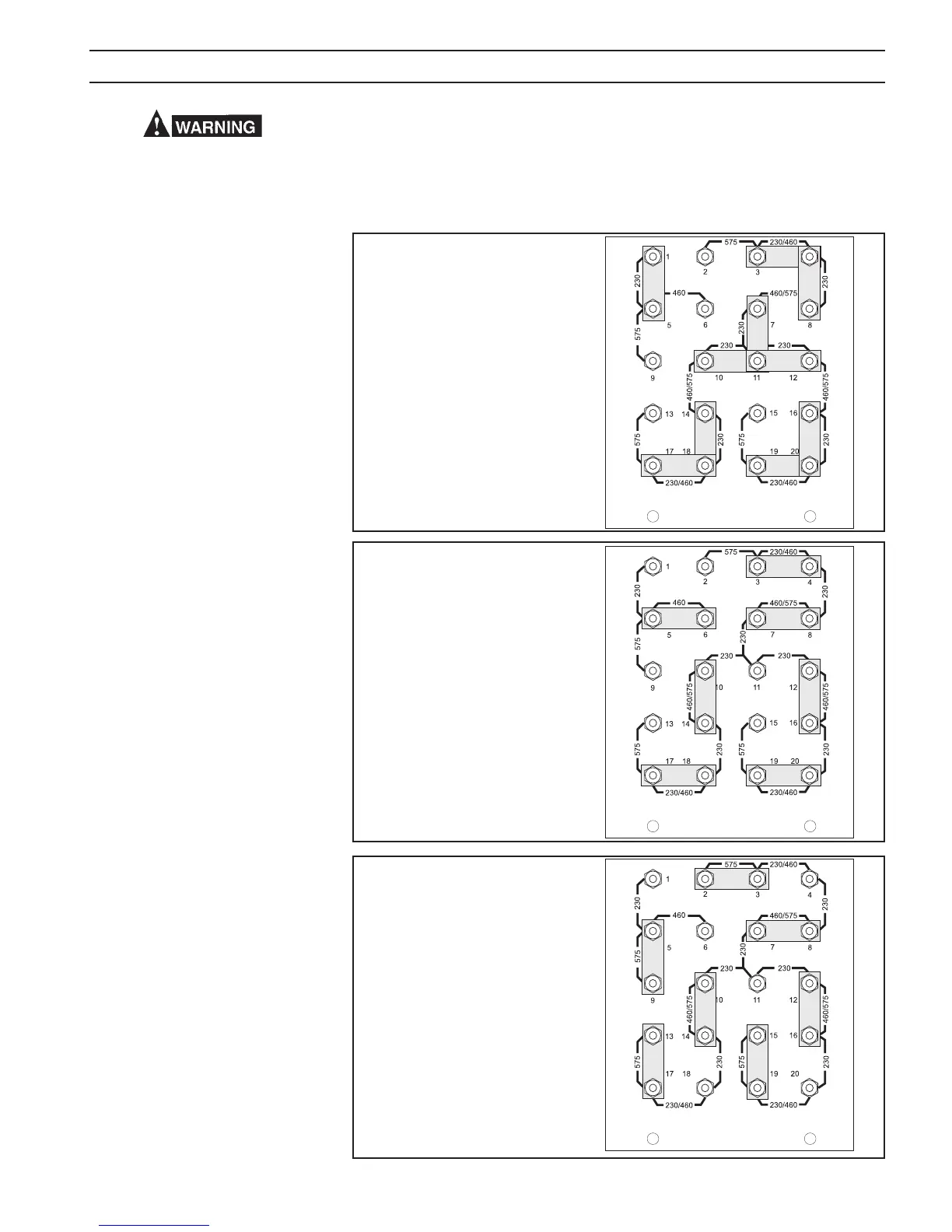

Fig. 4a
Input Terminal Board
230/460/575 Vac Models
230 Vac Conguration
2. 60 Hz Models - As shipped from the factory, the ESP-150 is congured
for the highest connectable voltage. If using other input voltages, the
links on the terminal board (TB) inside the unit must be repositioned
for the appropriate input voltage. See the gures 4a,b & c input voltage
congurations. To gain access to the terminal board, open the access
panel on the left side.
Fig. 4b
Input Terminal Board
230/460/575 Vac Models
460 Vac Conguration
Fig. 4c
Input Terminal Board
230/460/575 Vac Models
575 Vac Conguration
(Factory Supplied)
SECTION 3 INSTALLATION
