27
Note: J1 Mating Plug and Clamp
USER SUPPLIED CABLE
14-PIN Straight
Connector ................................. 636667
Clamp........................................6271127
J1
CONNECTOR

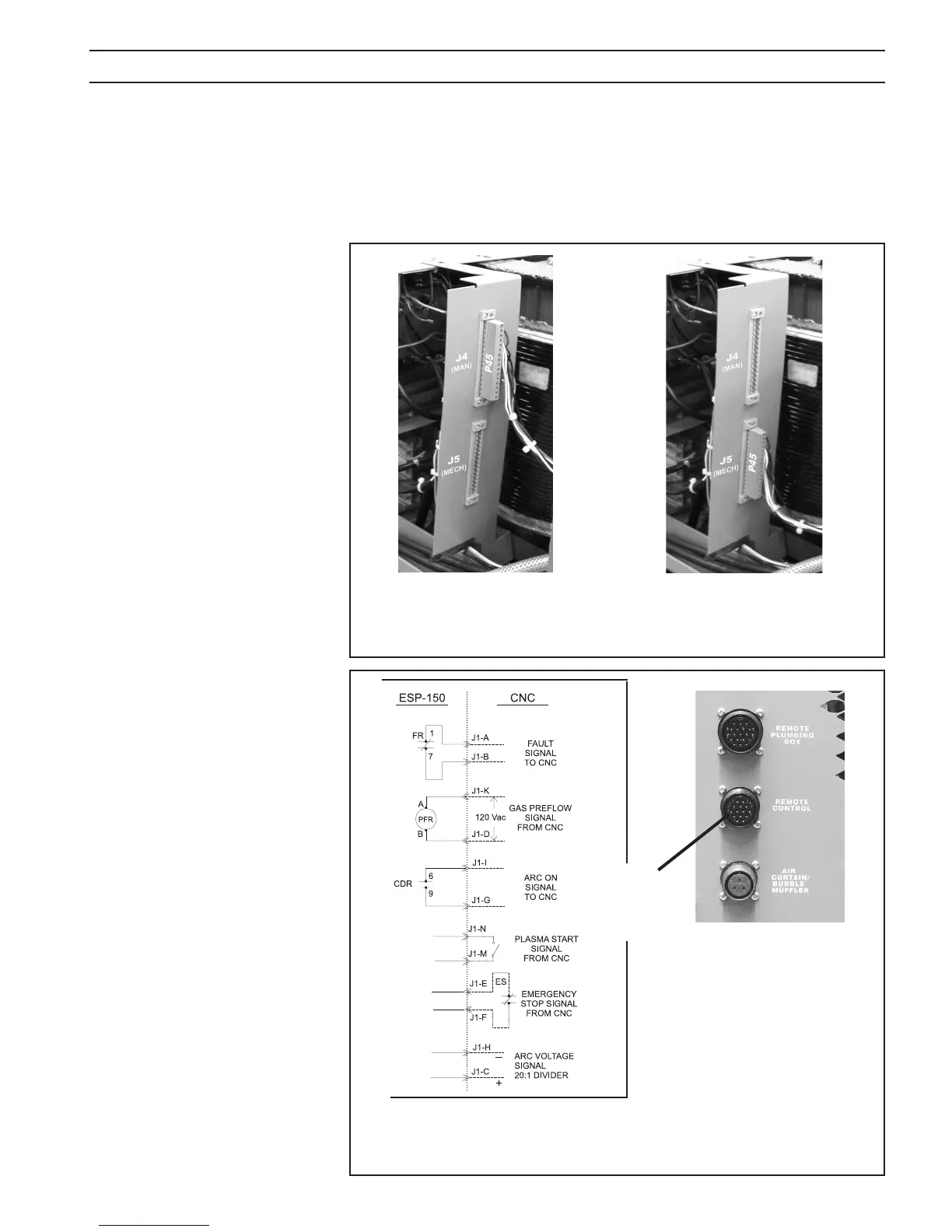

Figure 9. J1 Remote Control
Receptacle Pin Conguration for CNC Connection
6. Control Mode Selection for Operation with Remote Plumbing Box
The ESP-150 is supplied from the factory with Plug P45 connected to the
J4 (MAN) receptacle (torch gases and torch connected directly to the
ESP-150 power source). If the unit is to be used with a remote plumbing
box, move P45 to the J5 (MECH) receptacle.
Factory supplied for standard
operation - P45 to J4 (MAN)
P45 moved to the J5 (MECH)
position to allow use of
remote plumbing box
NOTE: If CNC does not have a nor-
mally closed emergency stop switch,
a jumper must be installed between
TB1-16 and TB1-20.
Figure 8. Manual vs. Mechanized Operation
SECTION 3 INSTALLATION
