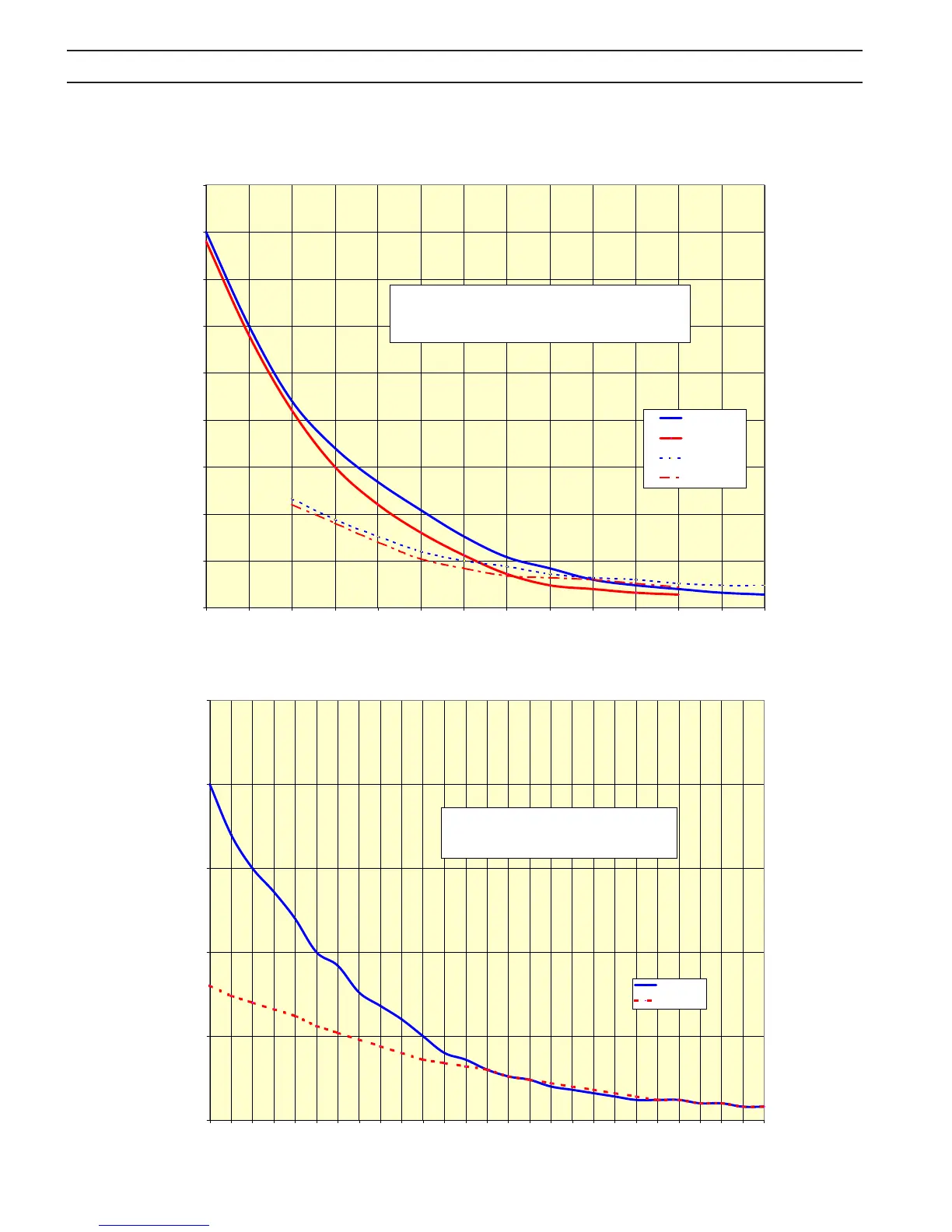

PT-26 Stainless Steel Cutting Data
PT-26 300 Amp Stainless Steel
0
25
50
75
100
125
150
175
200
225
0.25 0.50 0.75 1.00 1.25 1.50 2.00
Material Thickness (in)
Cutting Speed (ipm)
200 A. Air
150 A. Air
200 A. H-35
150 A. H-35
Plasma Gas: Air at 60 psig or H-35 at 70 psig.
Shield Gas: Air at 50 psig or Nitrogen at 40 psig.
Start Gas: Air, Nitrogen or H-35 at 30 psig.
Stand-Off: 3/8"
0
25
50
75
100
125
0.75 1.00 1.25 1.50 1.75 2.00 2.25 2.50 2.75 3.00 3.25 3.50 3.75 4.00
Material Thickness (in)
Cutting Speed (ipm)
300 A. Air
300 A. H-35
Plasma Gas: Air at 60 psig or H-35 at 70 psig.
Shield Gas: Air at 50 psig or Nitrogen at 40 psig.
Start Gas: Air, Nitrogen or H-35 at 30 psig.
Stand-Off: 3/8"
