ESAB ESP-200 - 3.6 Connecting PT-19 XLS or PT-600 Plasma Torches to ESP-200 Console and Options

24
3.6 Connecting PT-19XLS or PT-600 Plasma Torches to ESP-200 Console
and Options
3.6.1 PT-19XLS or PT600 and ESP-200 Output Cables, Hoses and Adapters (customer supplied)
SECTION 3 INSTALLATION
PT-19XLS and PT-600 with ESP-200 Plumbing Box/ESP-200
Lengths vary depending on system.
Coolant Return •
Coolant Supply•
Pilot Arc Cable•
Pilot Arc Cable Adapter (P/N 999278)•
Electrode Cable•
Electrode Cable Adapter (P/N 36743)•
Shield Gas (directly to the Plumbing Box)•
Start Gas (directly to the Plumbing Box)•
Cut Gas (directly to the Plumbing Box)•
Work Cable•
Pendant Cable (if Pendant option is ordered)•
Note:
Separate electrode and pilot arc cables are required
when using the ESP-200 Plumbing Box.
SEE Description, Section 2 for part numbers.
A remote SETUP Panel option (P/N 22000) is available on Avenger 1
and larger ESAB cutting machines. This panel operates the same as the
pendant. Refer to your machine manual for replacement parts.

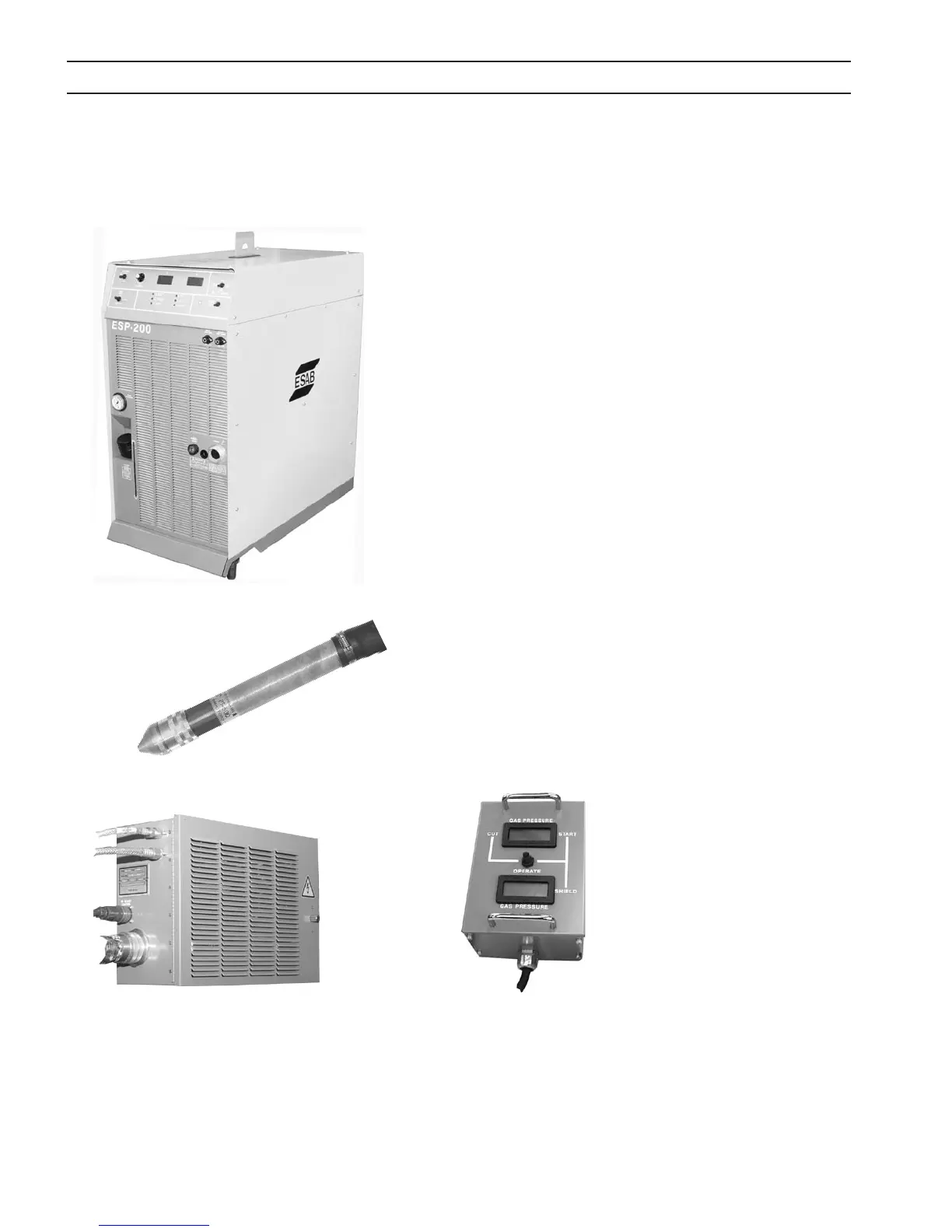

ESP-200 Console
PT-600 Plasmarc Torch
Plumbing Box Remote Setup Pendant
