SECTION 3 INSTALLATION
3.6.2 PT-19XLS and PT-600 with ESP-200 Plumbing BoxTorch Output Connection Procedure
Electric Shock Can Kill!
Turn o primary input power at the wall disconnect box before making any connections
to the ESP-200.
WARNING

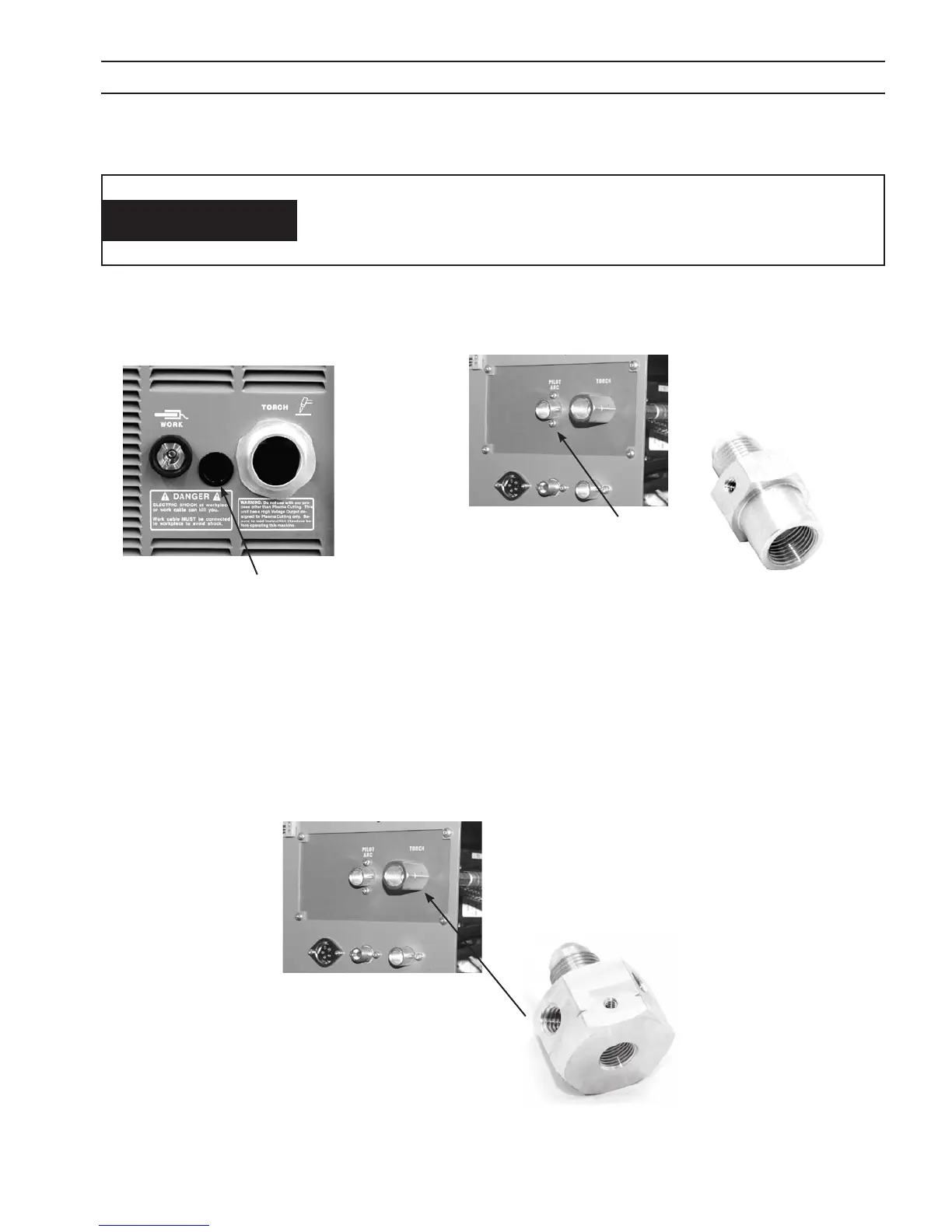

1. Thread 3 torch service lines (electrode cable, coolant supply, and coolant return) through large bushing at the middle
right side of front panel. Insert power arc cable through black grommet between the large bushing and work cable
plug. Proceed as follows:
Thread service
lines through
bushing.
Pilot arc tting
Pilot arc adapter
(P/N 999278)
Pilot arc cable here.

Coolant Supply/
Electrode Cable
connection
Coolant Supply
Hose/Electrode
Cable Adapter
a. Insert pilot arc adapter into left hand threaded Pilot Arc tting and tighten with a wrench.
b. Thread cable adapter (P/N 36743) into coolant supply/electrode cable connection.
Note:
Use of the ESP-200 plumbing box requires separation of coolant supply and electrode cable. The elec-
trode cable is inside the coolant supply hose for the PT-26 torch interface. (The PT-26 does not use a
plumbing box.)
