SECTION 3 INSTALLATION
6. Connect start gas, shield gas and cut gas hoses from gas supply to the appropriate labeled connection points on the
back of the plumbing box. (When using a remote plumbing box, gases by-pass the power console and go directly to
the plumbing box.)
Note:
Gas supplies (including air) should be ltered prior to entering the plumbing box. 5 micron is the recom-
mended lter size. See Replacement Part, Section 7 for part numbers.

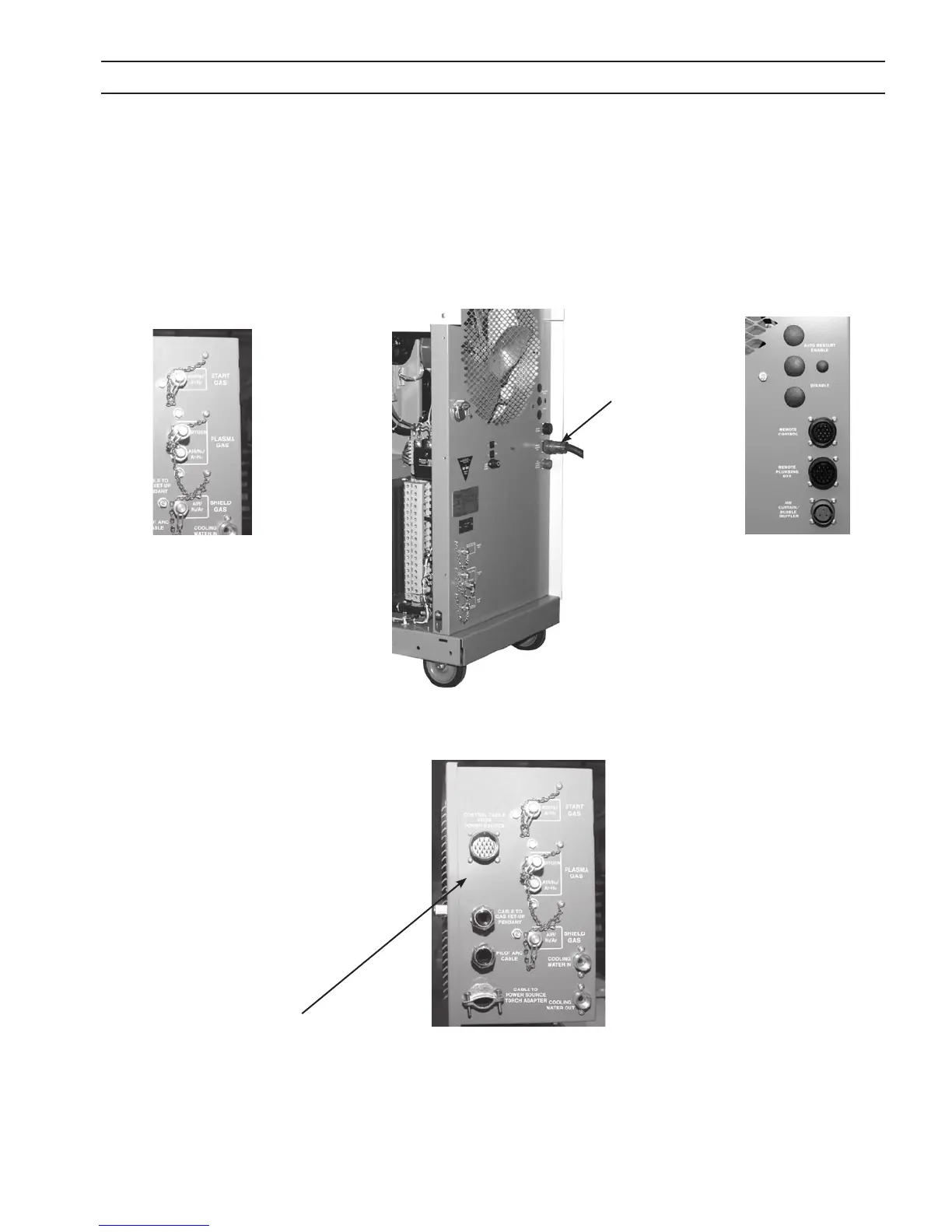

Plasma console to
plumbing box
5. Connect remote plumbing box cable to the back of the power console to the receptacle on the back of the plumbing
box.
Plumbing box to
Plasma console
