ESAB ESP-200 - 3.6.4 Remote Setup Pendant Installation

30
SECTION 3 INSTALLATION
Remote Setup Pendant

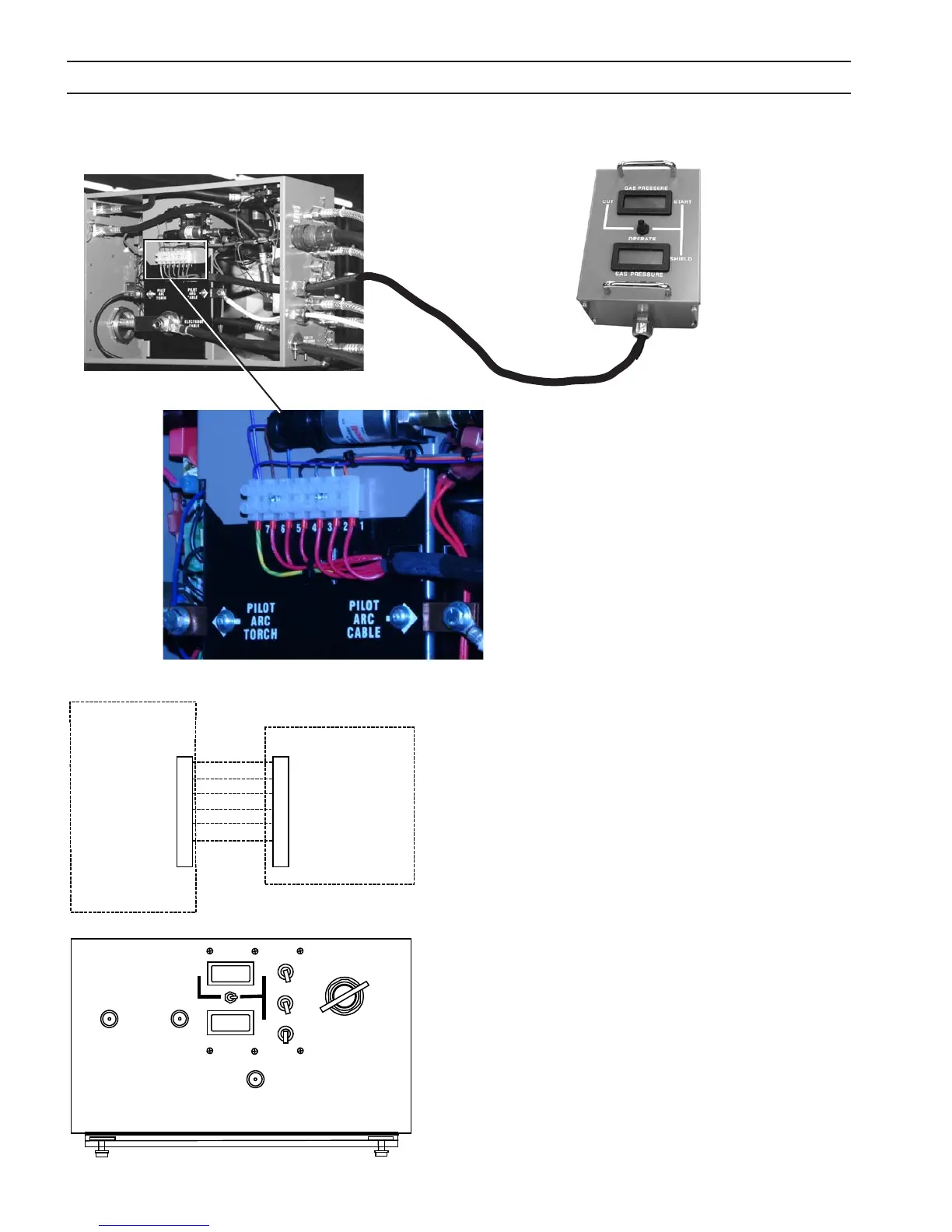

3.6.4 Remote Setup Pendant Installation
TB5 in the plumbing box
5
7
6
4
3
2
1
TB5
5
7
6
Set-up Pendant
4
3
2
1
TB1
Plumbing Box
The Set-up Pendant/Panel cable is a 6 conductor cable.
Connect:
TB5-1 to TB1-1
TB5-2 to TB1-2
TB5-3 to TB1-3
TB5-4 to TB1-4
TB5-5 to TB1-5
TB5-6 to TB1-6
SHIELD START
CUT START
SHIELD
CUT AIR
CUT OXYGEN / NITROGEN
START GAS
SHIELD GAS
CUT GAS
GAS PRESSURE
GAS PRESSURE
Remote Setup Panel w/Regulator Option For Cutting Ma-
chines. See Machine manual for details
