5 OPERATION
0446 455 001
- 14 -
© ESAB AB 2021
5 OPERATION
General safety regulations for handling the equipment can be found in the "SAFETY" chapter
of this manual. Read it through before you start using the equipment!
NOTE!
When moving the equipment use intended handle. Never pull the cables.
WARNING!
Electric shock! Do not touch the workpiece or the welding head during operation!

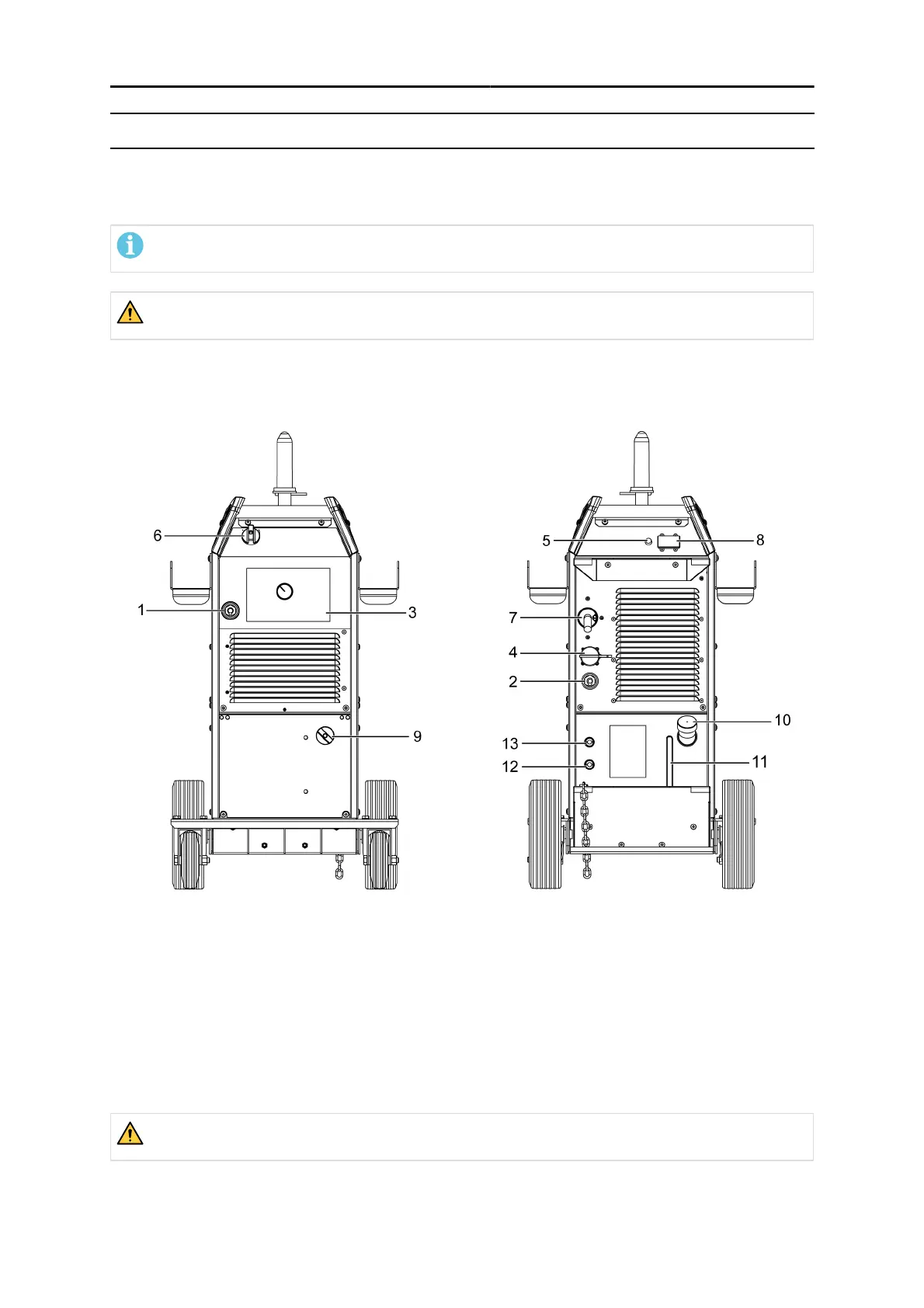

5.1 Connections and control devices
1 Connection (+): MIG/MAG: Welding cable,
MMA: Welding cable or return cable
8 24 V AC power supply socket for gas regulator
2 Connection (-): MIG/MAG: Return cable, MMA:
Return cable or welding cable
9 Cooling unit mains switch ON/OFF
3 Indicating LED, Overheating 10 Coolant filling
4 Connection of wire feed unit 11 Min/Max of coolant
5 Fuse for the gas regulator input supply 12 Connection RED for coolant (return) to cooling
unit
6 Mains power supply switch, ON/OFF 13 Connection BLUE for coolant from cooling unit
7 Mains cable inlet
WARNING!
Do not use DC- in MIG mode, if DC- needed, please contact authorised ESAB local service.
