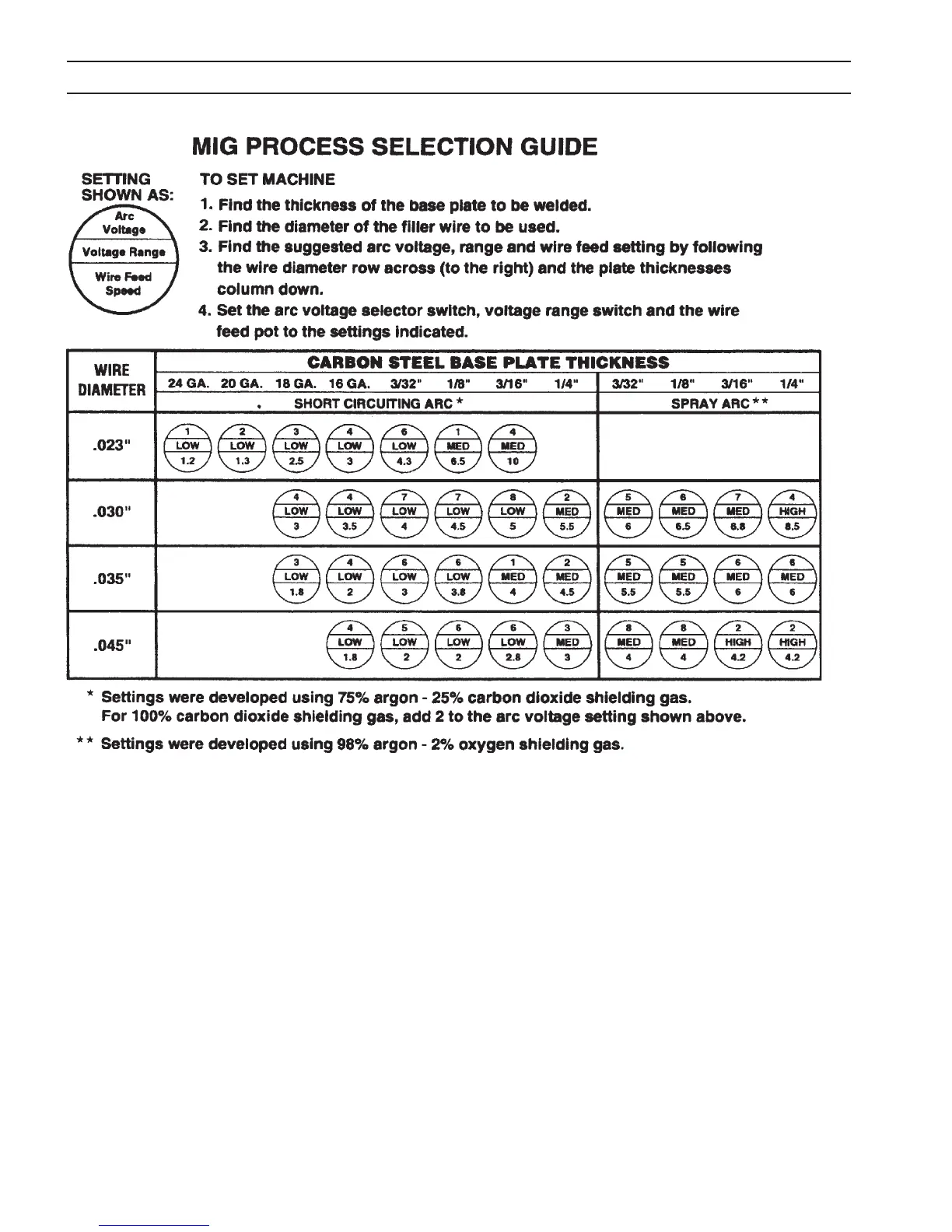

ESAB MIGMASTER 250 - MIG Process Selection Guide

36
TABLE 4.3, Continuous /Stitch Weld Conditions
This equipment is provided with a thermostat (OL) in the transformer (T1) windings which will open and prevent the con-
tactor (CON) from closing if the transformer windings are overheated. If the thermostat opens, allow the equipment to idle
with fan running for approximately 15-min. before attempting to weld again.
SECTION 4 OPERATION
