ESAB MIGMASTER 250 - Page 56

56
1
2, 3
4
5
6, 7
8
9
10
11
12
13
14
SECTION 6 REPLACEMENT PARTS

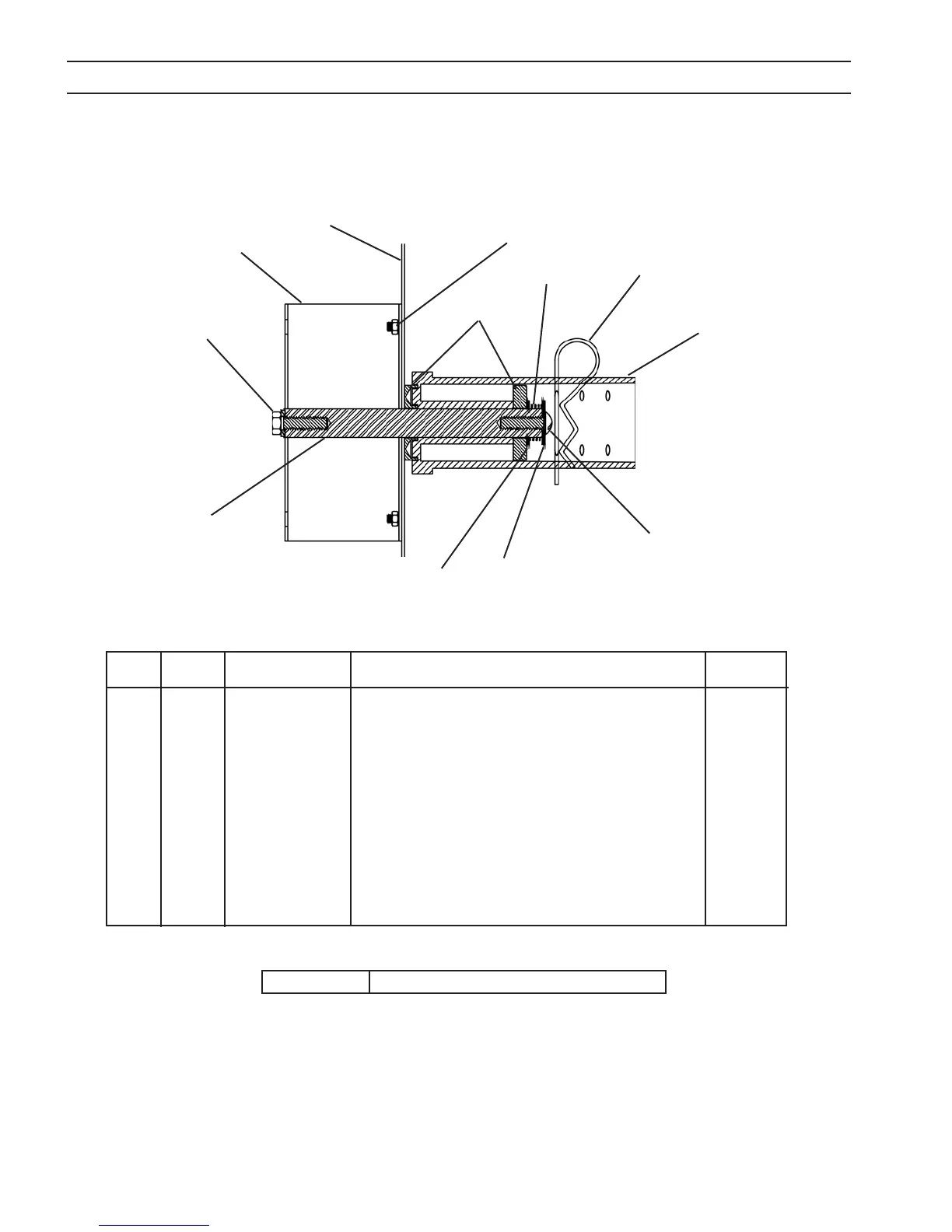

FIGURE 6.5b MIGMASTER 250 LEXAN HUB KIT
0558005764 SPINDLE REPLACEMENT KIT
*
Spindle Replacement Kit includes items, order other items separately
ITEM QTY. PART CKT.
NO. REQ. NO. DESCRIPTION (HUB KIT) DESIG.
1 1 0558002993 D-Shaft, Wirefeeder, 5.75L
2 AR 61341133 Screw, HC, .375-16 x 1.00
3 AR 64302037 Washer, Lock, .375
4 1 0558002992 Bracket, Spool Support
5 1 33191M Shelf, Silkscreened
6 AR 63300916 Nut, Hex, 10-24
7 AR 64302920 Washer, Lock, #8
8 2 948255 Pad, Braking
9 1 2360 0982 Spring
10 1 634347 Pin, Hitch Clip
11 1 8948258 Hub, Reel
12 1 92044046 Screw, 10001 Stl ZPC, .375-16 x 1.00
13 1 64304125 Washer, 53001, Stl ZPC, .375
14 1 0558003320 Washer, D-Type
*
*
*
*
