ESAB MIGMASTER 250 - Page 55

55
ITEM QTY. PART CKT.
NO. REQ. NO. DESCRIPTION (HUB KIT) DESIG.
2360 5780 REEL HUB KIT (INCLUDES 1-8)
1 2 2360 0255 BRAKE, DISC
2 1 2360 6237 HUB, REEL
3 1 2360 0982 SPRING
4 1 2360 0010 NUT, PLASTIC (OBSOLETE - USE NEW ASSY)
5 1 9204 0101 SCREW, R.H.M., 3/8-16 x .75
6 1 9205 6007 WASHER, PLAIN
7 1 2360 0952 WASHER, "D"
8 1 2360 5057GY SUPPORT, REEL
9 1 SHELF (REF.)
SECTION 6 REPLACEMENT PARTS
REF.
3
2
1
7
6
5
4
8
9

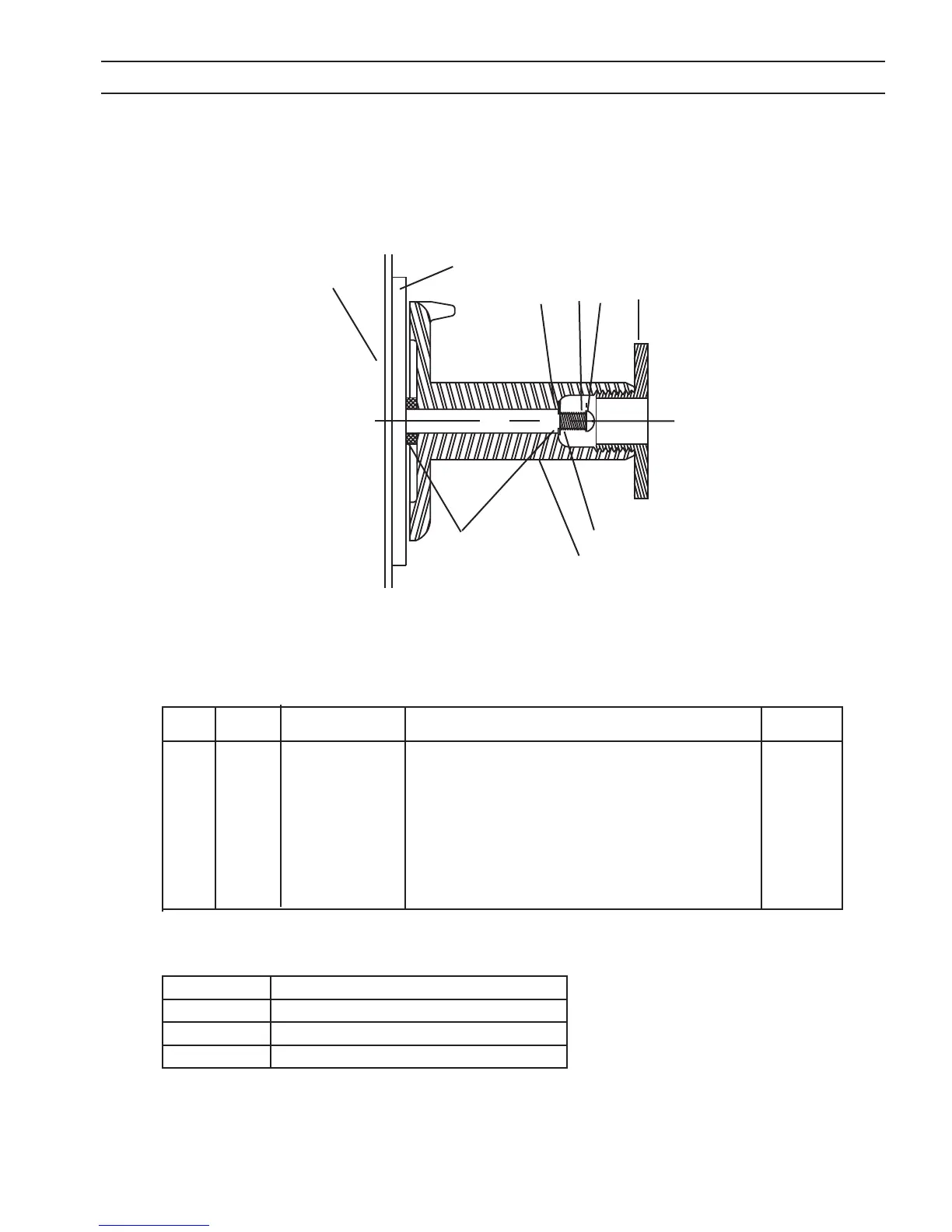

FIGURE 6.5a MIGMASTER 250 LEXAN HUB KIT (OBSOLETE)
REPLACEMENT PARTS:
0558005764 SPINDLE REPLACEMENT KIT
23600982 SPRING (USE EXISTING)
64304125 3/8" FLAT WSR
92044046 3/8" - 16 X 1" RH SCREW
