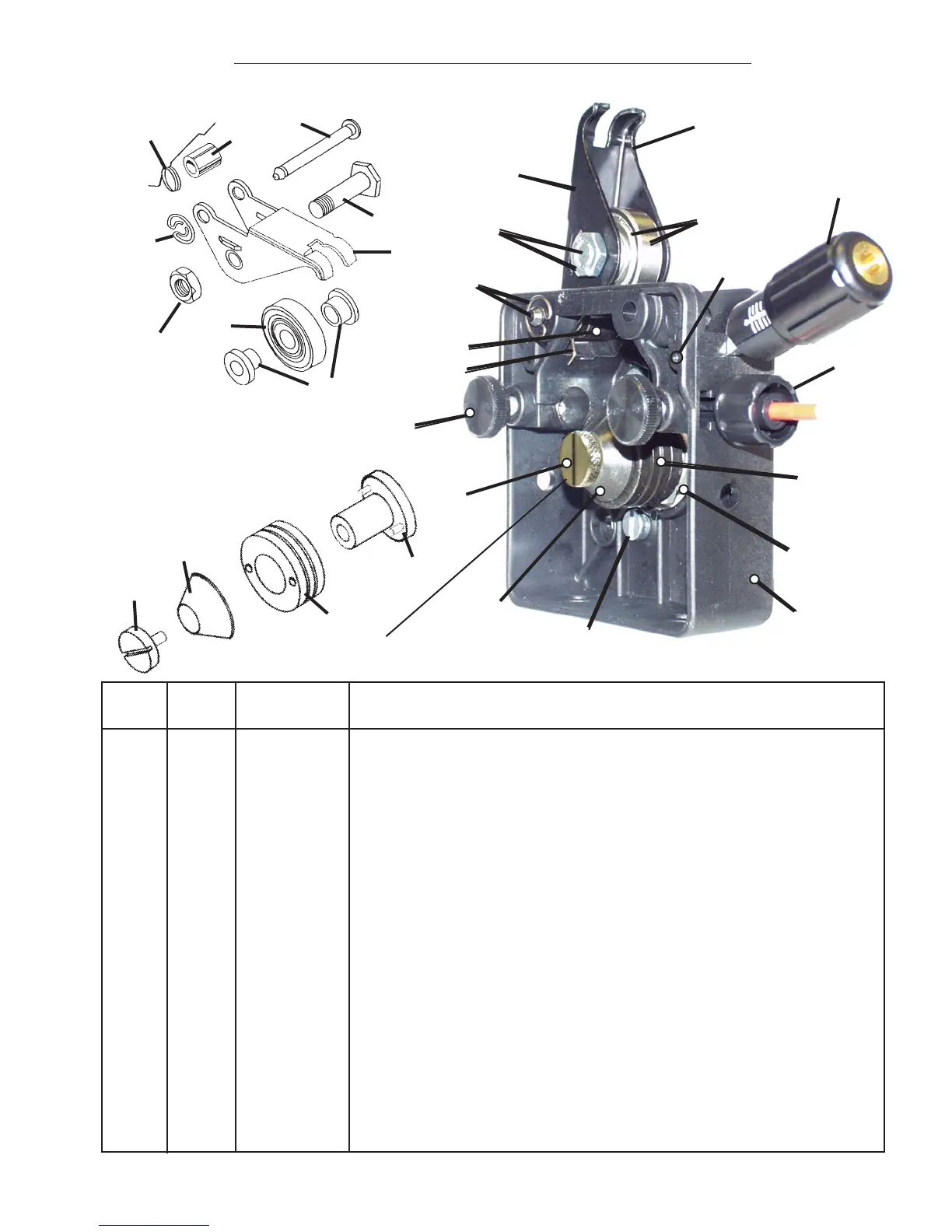

2ROLL UNDRIVEN UPPER DRIVE STAND MID1999 TO MID2000
ITEM QTY. PART
NO. REQ. NO. DESCRIPTION
952939 2 ROLL WIRE DRIVE SYSTEM, CONSISTS OF:
1 1 952704 PRESSURE ARM ASSY., (incls. 2, 3, 4, 7, 8)
2 1 23612477 AXLE, PRESSURE
3 1 23612475 PRESSURE ARM
4 1 23612474 AXLE NUT
5 1 23612470 PIVOT PIN
6 1 23612472 CIRCLIP
7 1 23612368 PRESSURE ROLL, SMOOTH (see Table 2.1) - no pin holes
8 2 23612476 SPACER
9 1 23612460 PRESSURE DEVICE ASSY.
10 1 23612473 LOCATING PIN
11 1 23612461 INLET GUIDE
12 1 21156 DRIVE ROLL, (see Table 2.1)
13 1 952944 ADAPTOR DRIVE ROLL
14 1 952925 FEED ROLL THUMB SCREW
15 1 23612478 FEED PLATE
16 1 34608 WASHER RETAINING SCREW
17 1 952945 FEED ROLL SPACER
18 2 952926 THUMB SCREW M6X16
19 3 23612462 SCREW, MOTOR MOUNTING
20 1 23612662 SPACER TUBE (Pressure Arm)
21 1 23612663 SPRING PRESSURE ARM
1 (Includes, 2,3,4,7,8)
*12
*20
*2,4
5
*7,8
9
*10,6
11
15
*21
*14
18
*17
*13
19
*3
7
8
2
4
6
10
20
21
3
14
17
13
12
* Items shown in exploded view for clarity.
HAND TIGHTEN ONLY !
