ESAB MIGMASTER 250 - Page 60

60
7
8
10
2
4
18
6
19

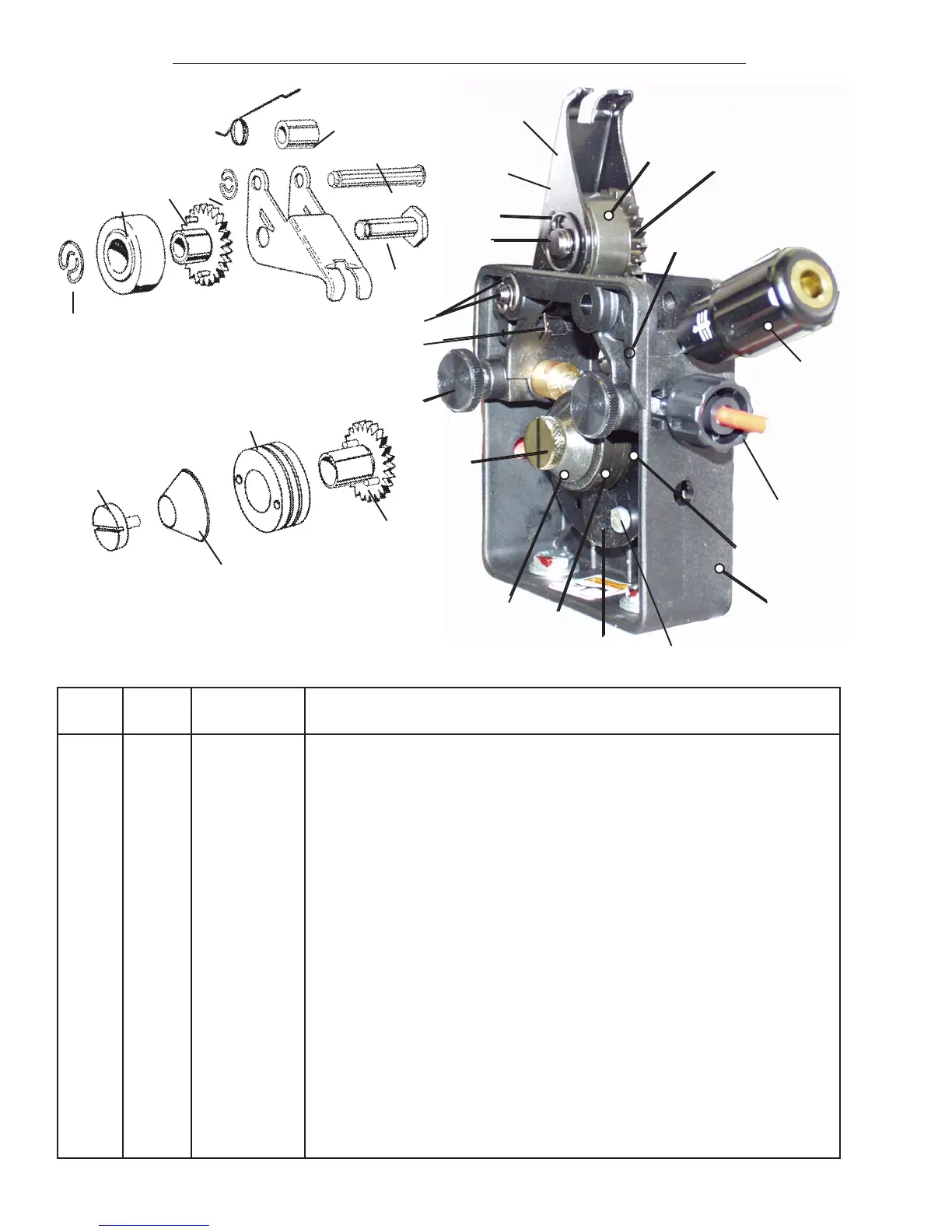

* Items shown in exploded view for clarity.
ITEM QTY. PART
NO. REQ. NO. DESCRIPTION
0558001796 2 ROLL GEARED WIRE DRIVE SYSTEM, CONSISTS OF:
1 1 23612626 PRESSURE ARM ASSY., (incls. 2, 3, 4, 7, 8)
2 1 23612387 AXLE, PRESSURE
3 1 23612475 PRESSURE ARM
4 1 23612385 CIRCLIP, PRESSURE ROLL
5 1 23612470 PIVOT PIN
6 1 23612472 CIRCLIP
7 1 23612397 PRESSURE ROLL, SMOOTH
8 1 23612386 GEARED ADAPTOR, PRESSURE ROLL
9 1 23612460 PRESSURE DEVICE ASSY.
10 1 23612473 LOCATING PIN
11 1 23612461 INLET GUIDE
12 1 21156 DRIVE ROLL, .035" / .045" (see Table 2.4 & 5.2)
13 1 952985 GEARED ADAPTOR DRIVE ROLL
14 1 952925 FEED ROLL THUMB SCREW
15 1 23612478 FEED PLATE
16 1 952945 CONE WASHER, FEED ROLL
17 2 952926 THUMB SCREW M6X16
18 1 23612662 SPACER TUBE (Pressure Arm)
19 1 23612663 SPRING PRESSURE ARM
20 3 23612462 SCREW, MOTOR MOUNTING
21 1 36880 SAFETY GUARD KIT
*2
5
*4
*3
*1
13
9
16
11
14
*12
12
15
*6,10
*19
*14
17
*7
*8
*13,16
*16
20
21
2ROLL GEAR DRIVEN TOOLFREE DRIVE STAND MID2000 TO PRESENT
