13
SECTION 3 MAINTENANCE

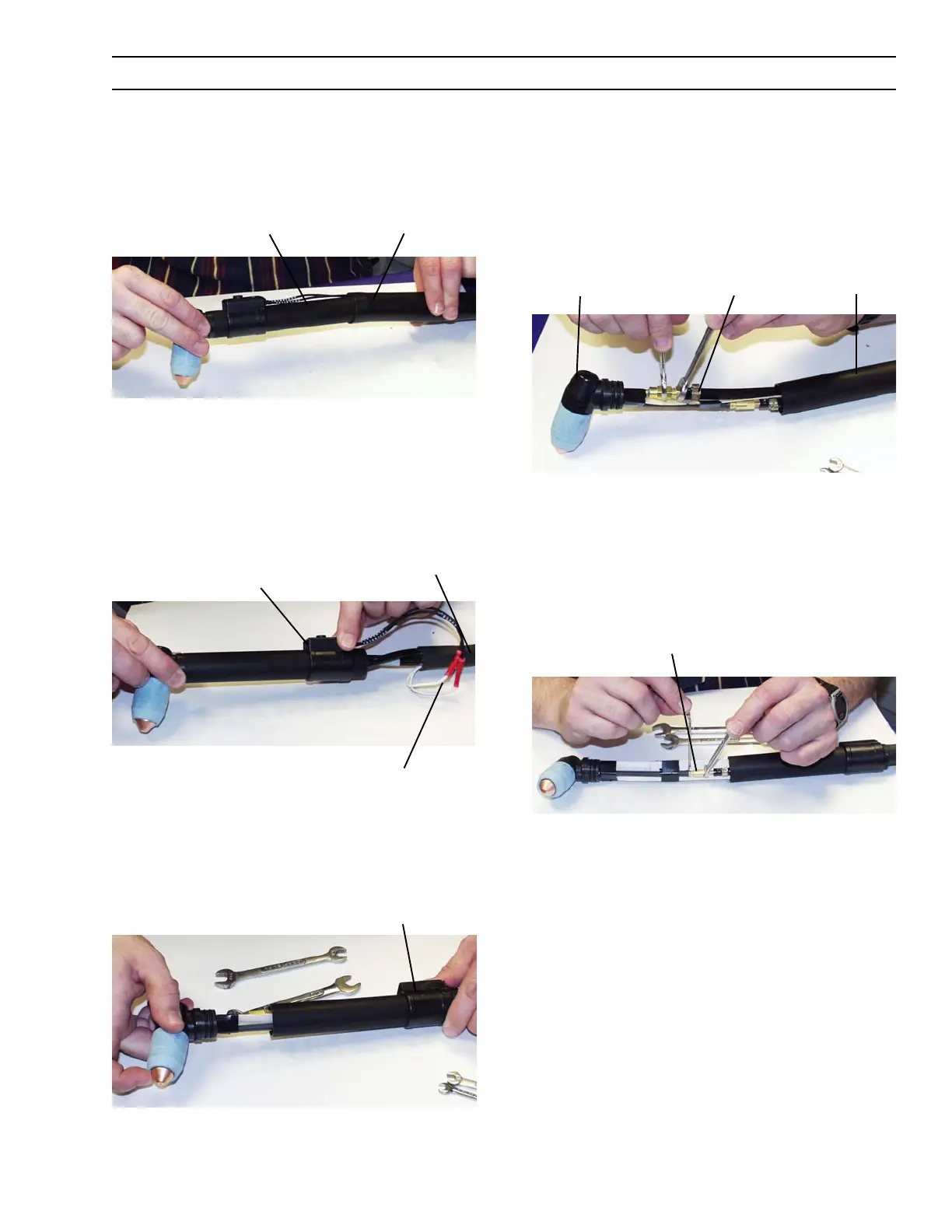

3.3 REMOVING / REPLACING TORCH HEAD
AND SWITCH FROM SERVICE LINE
3.2 Slide Switch and Switch Band to end of handle. If
the switch is to be replaced, remove switch from
switch band and snip leads (2) at the spliced
connections. (Replacement switches are supplied
with new splices and extra long leads)
3.5 Remove the Pilot Arc connection from the Torch
Head using two wrenches to prevent twisting stain-
less steel tube.
SERVICE LINE ASSEMBLY
SWITCH BAND
SPLICE CONNECTIONS
HANDLE
POWER CABLE
TORCH HEAD
PILOT ARC
CONNECTION
SWITCH BAND
3.3 Carefully slide the handle back from the torch body
to expose the cable and hose connections.
FLEX SUPPORT
3.1 Slide back the flex support to the end of the Handle.
HANDLE
3.4 Remove the power cable from the Torch Head by
using two wrenches to prevent twisting brass tube.
To Next Page
