ESAB PT-32 - Optional Equipment and Spare Parts Kits; Spare Parts Kit Contents; Steel Heat Shield Guards

9
STAND OFF GUIDE TYPE
P/N 0558002393
1.4 OPTIONAL EQUIPMENT (NOT SUPPLIED WITH TORCH)
A. Spare Parts Kits - The spare parts kits listed in figure 1-3 are recommended for maintaining the PT-32 torch
with minimum downtime.

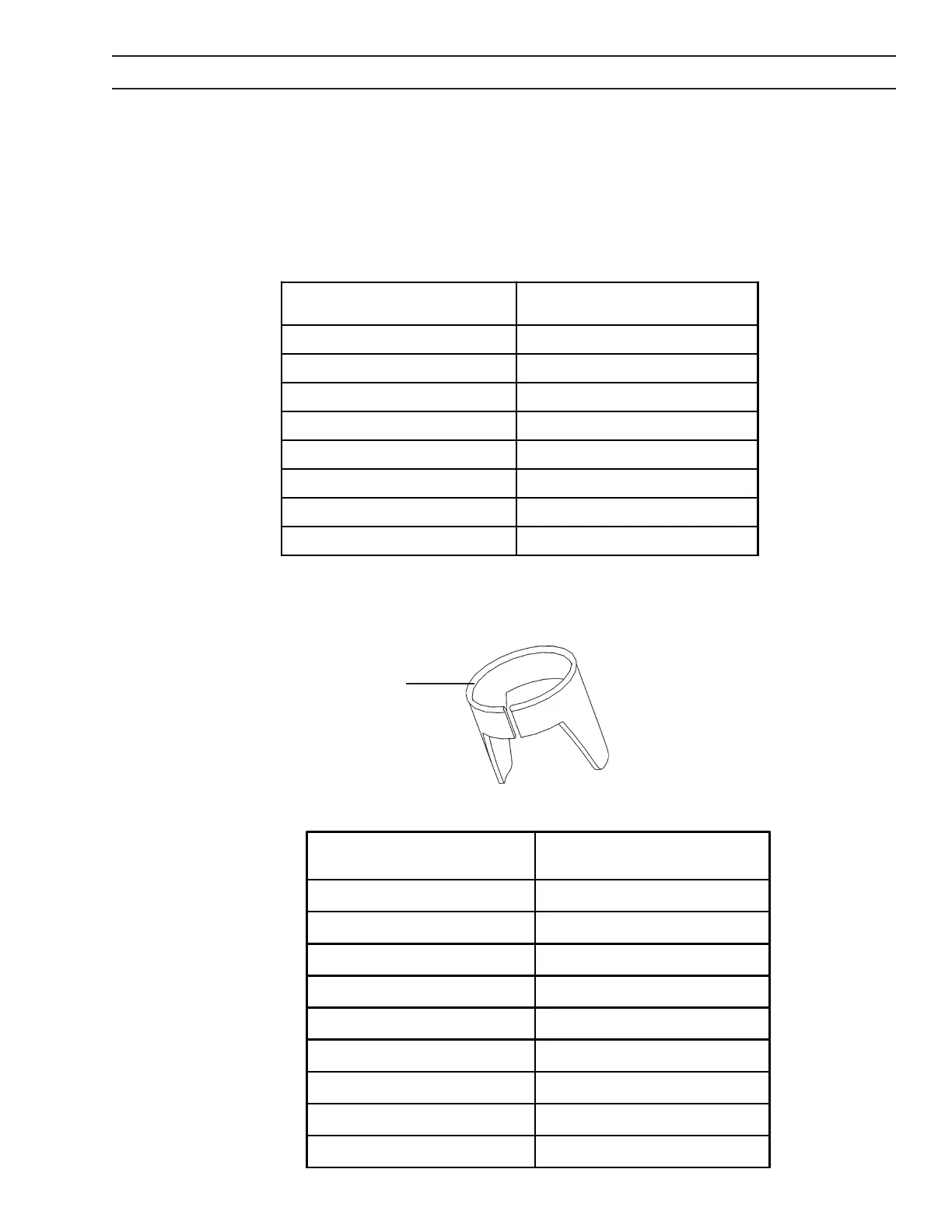

Figure 1-3. Contents of PT-32 Spare Parts Kits
B. Steel Guards (for extending the life of the heat shield) - Refer to Figure 2-2 for installation and operation.
DESCRIPTION
PART NUMBER
(50/70 A Kit - P/N 0558002822)
Heat Shield 0558001957 (QTY 2)
Stand Off Guide 0558002393 (QTY 1)
Nozzle, 50-70 A 0558002618 (QTY 4)
Drag Nozzle, 40 A 0558002908 (QTY 1)
Electrode 0558001969 (QTY 3)
Valve Pin 0558001959 (QTY 1)
Lubricant 17672 (QTY 1)
Wrench 19129 (QTY 1)
SECTION 1 DESCRIPTION
PowerCut 875 & PowerCut 1125 Systems Kit
PowerCut 1500 Systems Kit
DESCRIPTION
PART NUMBER
(90 A Kit - P/N 0558003062)
Heat Shield 0558001957 (QTY 2)
Stand Off Guide 0558002393 (QTY 1)
Nozzle, 90 A 0558002837(QTY 4)
Drag Nozzle, 40 A 0558002908 (QTY 1)
Electrode 0558001969 (QTY 3)
Valve Pin 0558001959 (QTY 1)
Lubricant 17672 (QTY 1)
Wrench 19129 (QTY 1)
Fuse 2Amp 600VAC 0558003075 (QTY 1)
