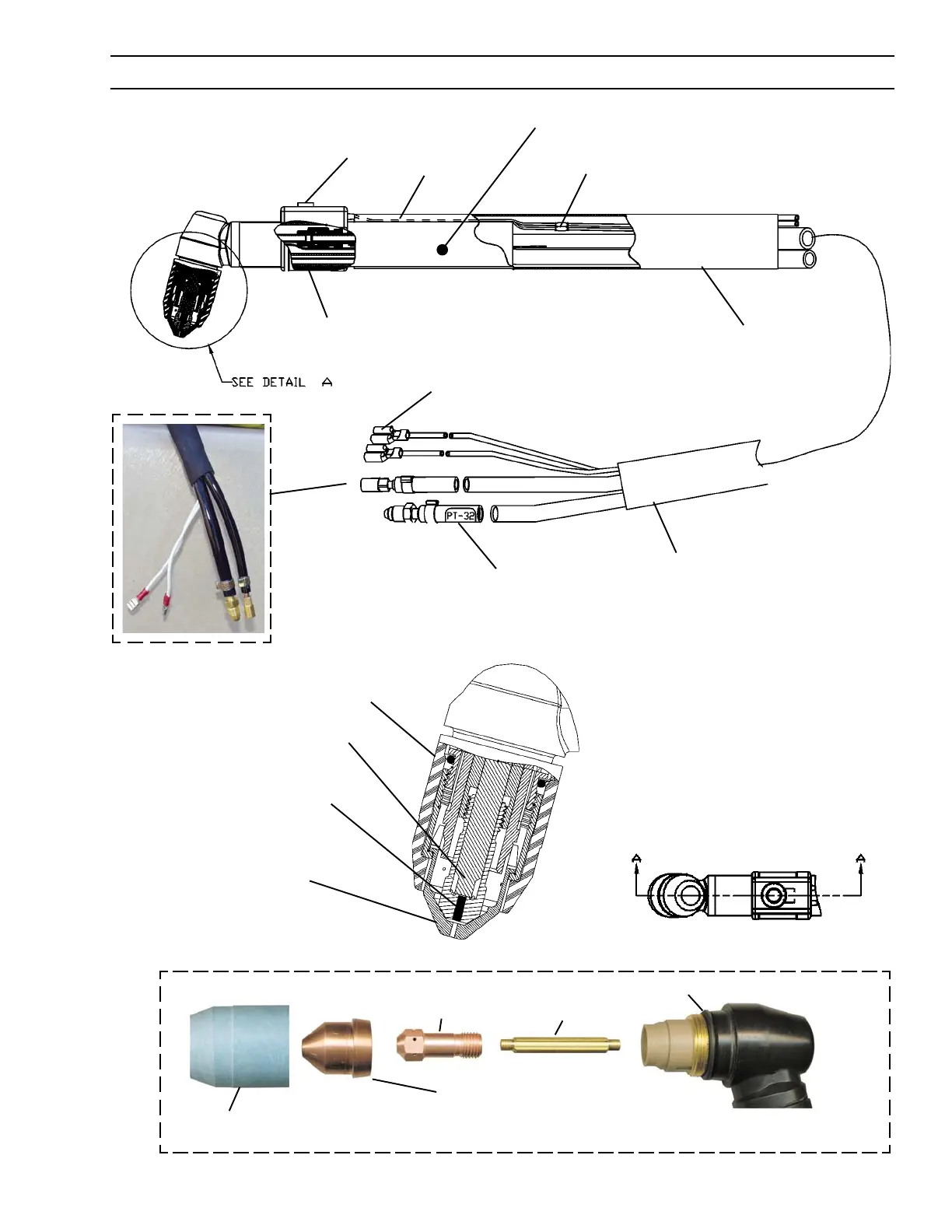

ESAB PT-32 - PT-32 Parts Identification and Exploded View; Exploded View of Torch Components

15
SWITCH
- 818224
HANDLE
-18635
BAND SWITCH
- 819127
SPLICE
- 674520
(Do Not Tape Switch Lead Splices to Cable)
BOOT
-49N83
CABLE ASSEMBLY
25FT. (7.6m) - 0558002841
50FT. (15.2m) - 0558002842
LABEL
-142Z25
TERMINAL FASTENER
- 950011
HEAT SHIELD
- 0558001957
VALVE PIN
- 0558001959
ELECTRODE
- 0558001969
NOZZLE
50 - 70 amp - 0558002618
90 amp - 0558002837
40 amp drag - 0558002908
DETAIL A
PT-32 Exploded View
POWER CABLE
PILOT ARC LEAD
(2) WHITE LEADS
4.2 Parts
SECTION 4 REPLACEMENT PARTS
BODY
-0558001965
HEAT SHIELD
- 0558001957
ELECTRODE
- 0558001969
NOZZLE
40 AMP - 0558002908 (PC-875,1125 & 1500)
50/70 AMP- 0558002618 (PC-875 & 1125)
90 AMP - 0558002837 (PC-1500 ONLY)
VALVE PIN
- 0558001959
O-RING - 85W51
(Supplied with head)
