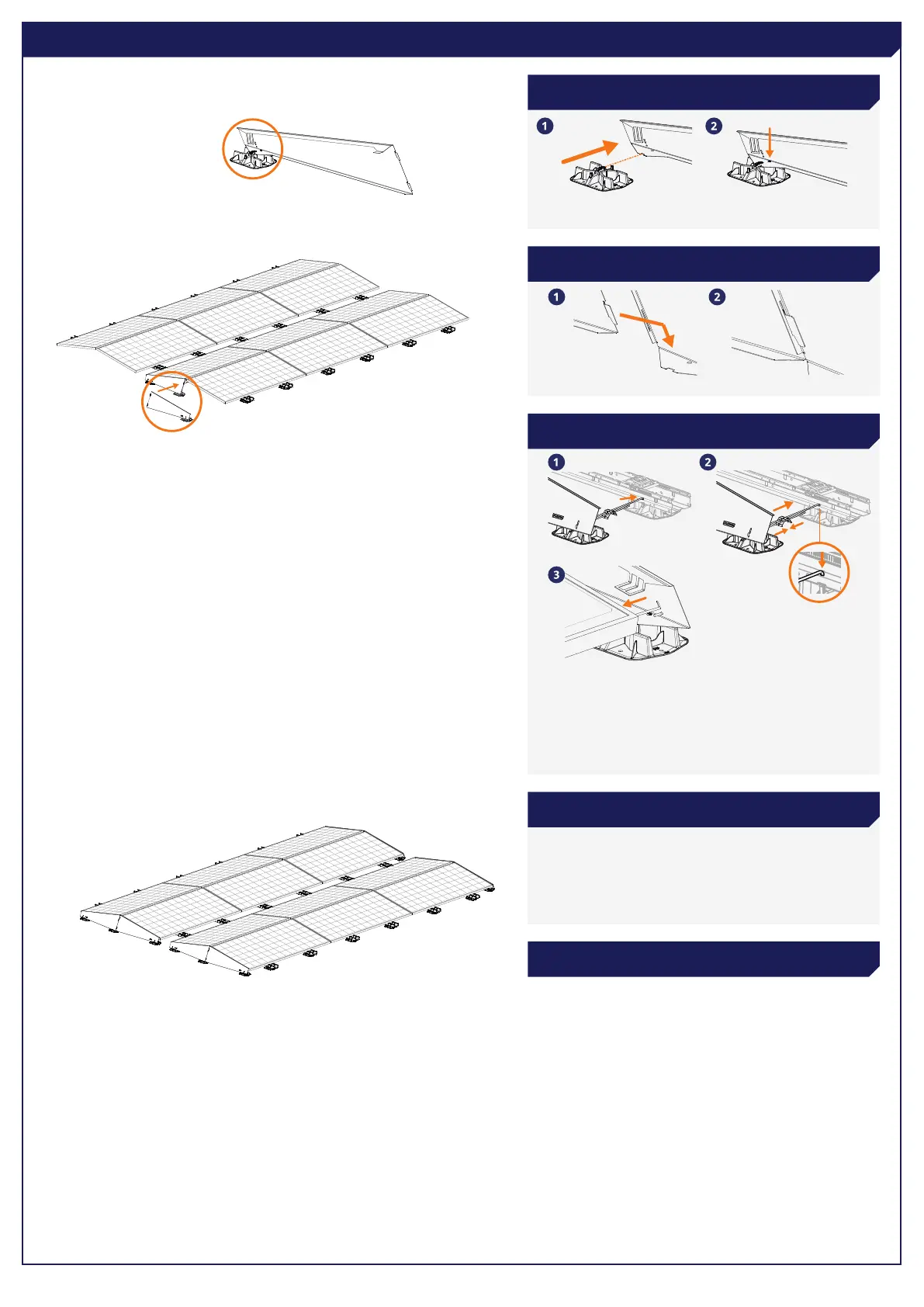

ESDEC FLATFIX WAVE - Assemble Wind Deflector B on the Field; 1 ASSEMBLE THE ROOF SUPPORT UNDER WIND DEFLECTOR B; 2 CONNECT WIND DEFLECTOR B TO WIND DEFLECTOR A; 3 ASSEMBLE WIND DEFLECTOR B TO THE FIELD

2 CONNECT WIND DEFLECTOR B TO WIND DEFLECTOR
A
3 ASSEMBLE WIND DEFLECTOR B TO THE FIELD
1. Hook the fastening pin into the hole of the unit.
2. Slide wind deector B against the eld by inserting the
connector pin.
3. Bend the anges under the panel frame by hand.
4. Make sure wind deector B ts well on the panel frame.
4 ASSEMBLE THE OTHER WIND DEFLECTORS A AND B
ON THE REST OF THE FIELD
Assemble the other wind deectors A and B on the rest of
the eld. (Repeat the steps in Sections 9 and 10).
1 ASSEMBLE THE ROOF SUPPORT UNDER WIND
DEFLECTOR B
1. Slide the roof support over the ange of wind deector B.
2. Click the wind deector on the roof support.
10 ASSEMBLE WIND DEFLECTOR B ON THE FIELD
10
5 THE PANEL FIELD IS NOW READY!
