ESDEC FLATFIX WAVE - Assembly of Stabilizers and Cable Brackets; 1 POSITIONING STABILIZERS IN CONNECTION; 2 ASSEMBLE STABILIZERS ON HIGH BASE; 3 ASSEMBLE CABLE BRACKETS ON STABILIZERS

06

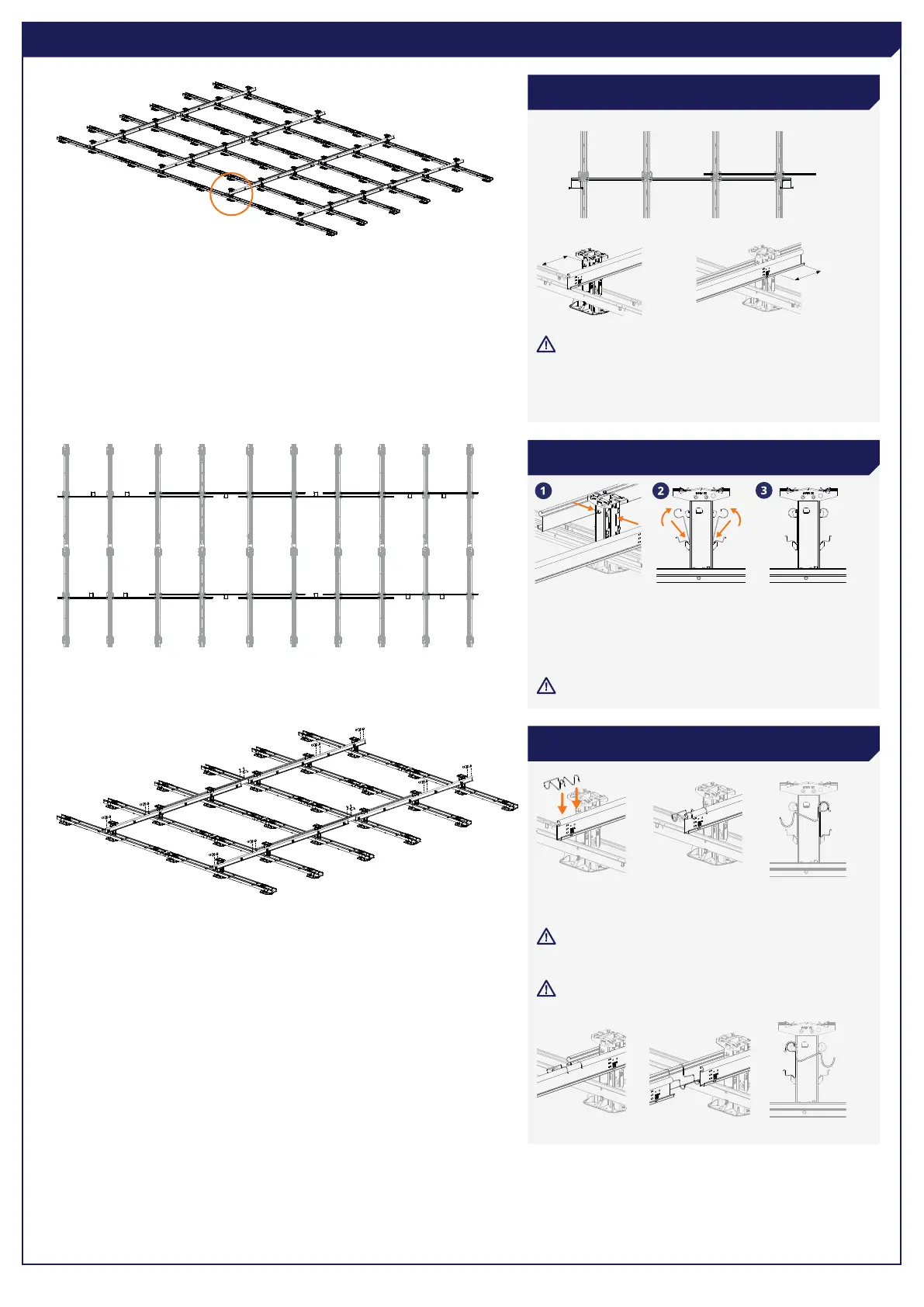

6 ASSEMBLY OF STABILIZERS AND CABLE BRACKETS
1 POSITIONING STABILIZERS IN CONNECTION
2 ASSEMBLE STABILIZERS ON HIGH BASE
3 ASSEMBLE CABLE BRACKETS ON STABILIZERS
Place the stabilizers at an angle to the edge of the high base
and turn them back to the base until they click.
Tip: Click on 2 stabilizers (front & back) at the same time for
easier assembly.
Click!Click!
NB: Follow the installation drawing for the positions of
the stabilizers. Place the stabilizer in the centre aligned
with 4 high base elements whose ends protrude an equal
distance.
Click on the cable brackets at the top of the stabilizer.
NB: Align the rst stabilizer well and then align the other
stabilizers.
NB: Make sure that the cable brackets face the back of
the stabilizer.
NB: Place the cable brackets in the space between 2
stabilizers. See Annex C for further specications.
Click!
=
=
=
=
