ESDEC FLATFIX WAVE - Place Dual Units; 1 PREPARE COUPLING; 2 COUPLE DUAL UNITS TO THE DUAL START UNITS; 3 OPEN THE TOP OF THE DUAL UNIT UNTIL IT IS COMPLETELY FLAT AND CLICKS INTO PLACE

05
5 PLACE DUAL UNITS
4 PLACE THE HIGH BASE (2x) IN STANDING POSITION
SO THAT IT CLICKS
Click!

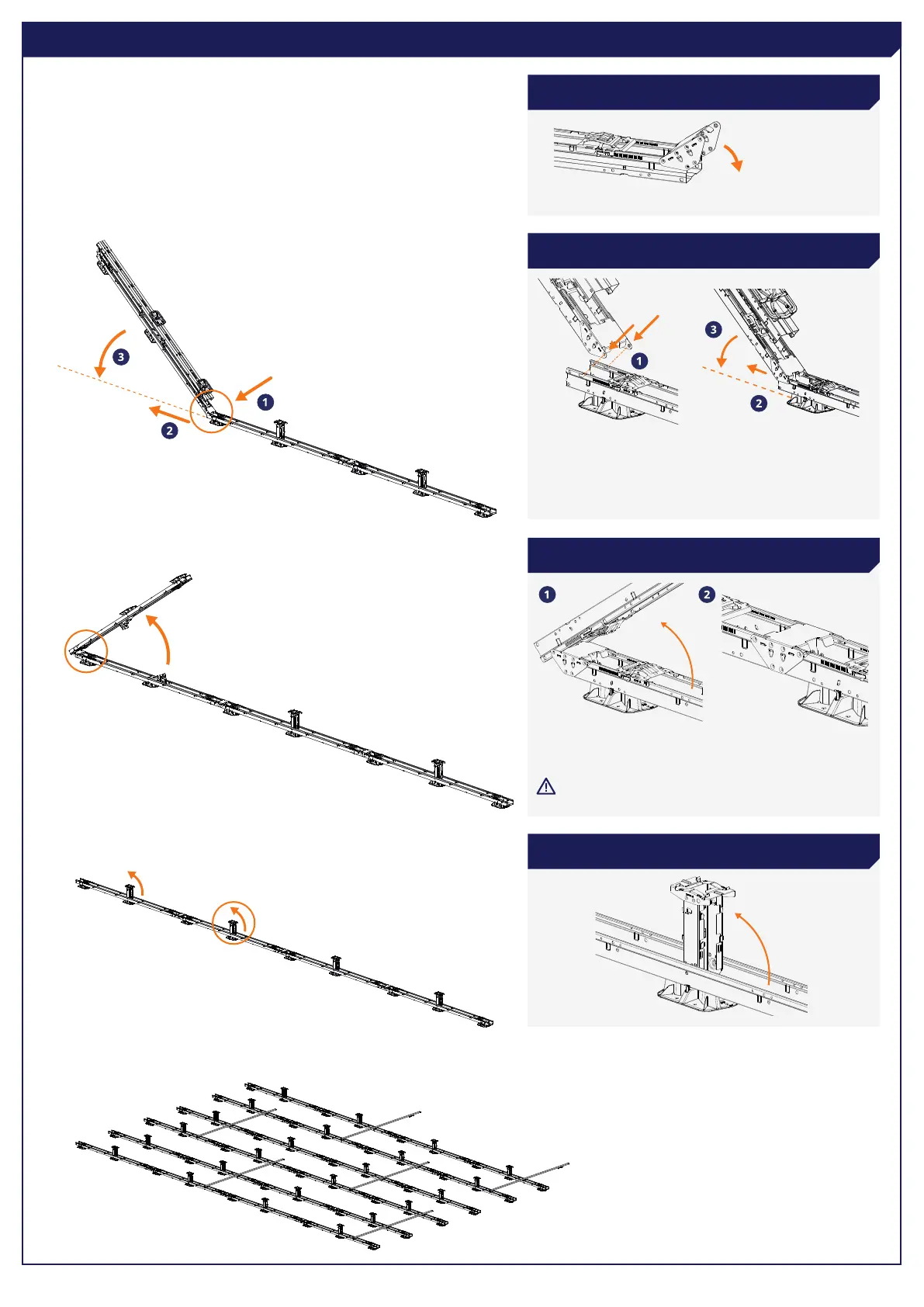

2 COUPLE DUAL UNITS TO THE DUAL START UNITS
1. Slide the lugs of the dual unit coupling into slots of the dual
start unit at an angle of 45 degrees.
2. Pull back the cams so that the coupling is rmly engaged.
3. Carefully turn the dual unit downwards until it is completely
at and clicks into place.
Click!
3 OPEN THE TOP OF THE DUAL UNIT UNTIL IT IS
COMPLETELY FLAT AND CLICKS INTO PLACE
NB: Make sure that your hands/ngers are not
trapped in the area of the hinged parts!
Click!
Tip: Lift the dual unit slightly at the coupling, by its own
weight the unit clicks rmly into place.
Click!
Click!
Click!
1 PREPARE COUPLING
Click!
Press the coupling down until it clicks.
