ESDEC FLATFIX WAVE - Positioning the Dual Start Units; 1 POSITION THE 2 nd DUAL START UNIT; 2 POSITIONING OF THE OTHER DUAL START UNITS

04
4 POSITONING THE DUAL START UNITS

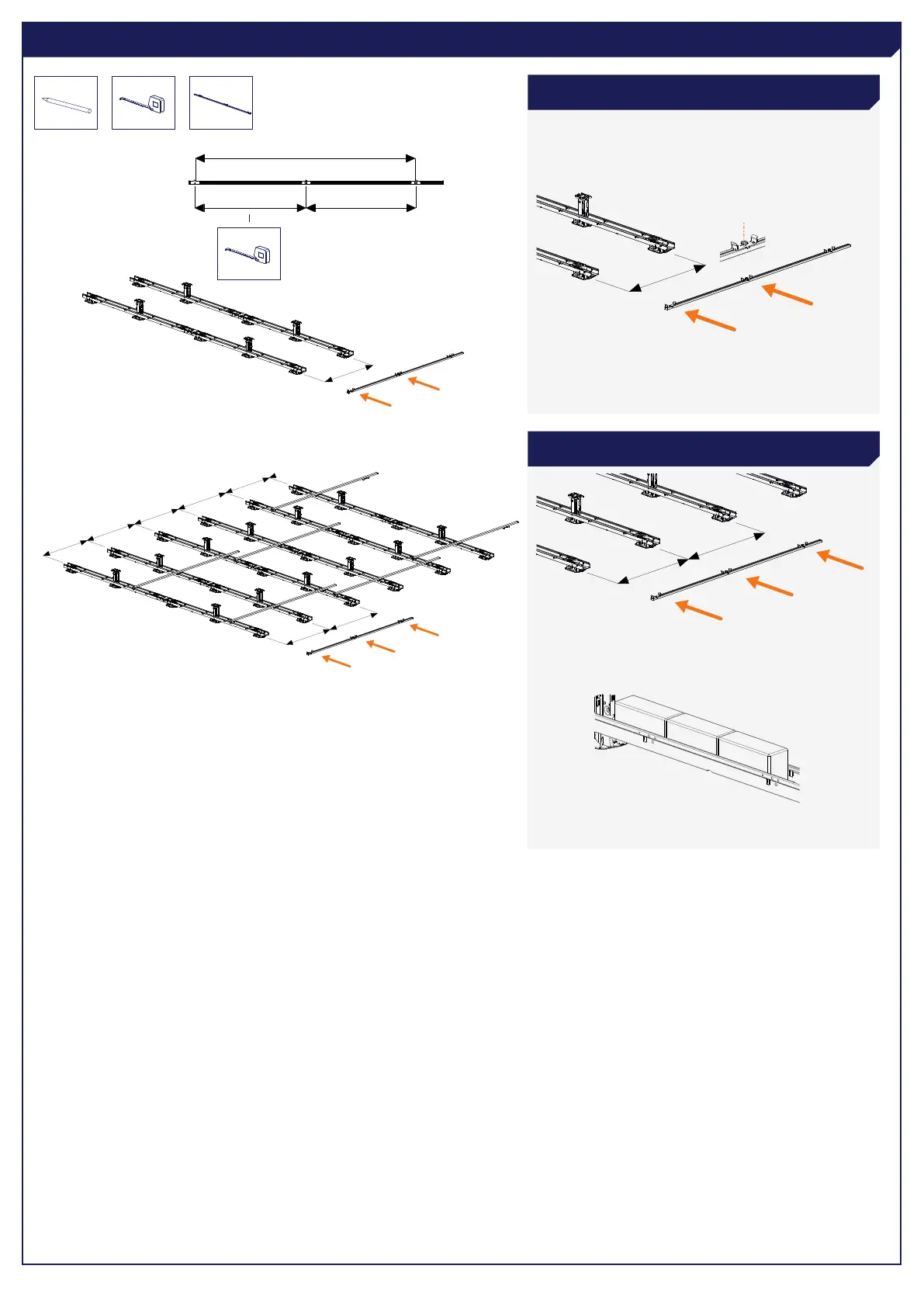

1 POSITION THE 2nd DUAL START UNIT
2 POSITIONING OF THE OTHER DUAL START UNITS
Place the rst dual start unit at the edge of the panel eld,
with a centre-to-centre distance (A). To do this, use the
measuring bar at various places on the dual start unit.
A
A
A
B
Make sure that the dual start units are aligned with each
other.
A
B
Tip: Ballast the aligned units to prevent them from shifting.
A
B
A
B
A
L
A B
(panel)
See Annex B for an explanation of the use of the
Measuring bar.
