ESDEC FLATFIX WAVE - Assembly of Solar Panels and Cables; 1 POSITION AND CLAMP THE SOLAR PANEL ON THE HIGH BASE ELEMENTS; 2 CLAMP THE SOLAR PANEL ON THE FRONT SIDE; 3 PLACING CABLES OR MC4 CONNECTOR

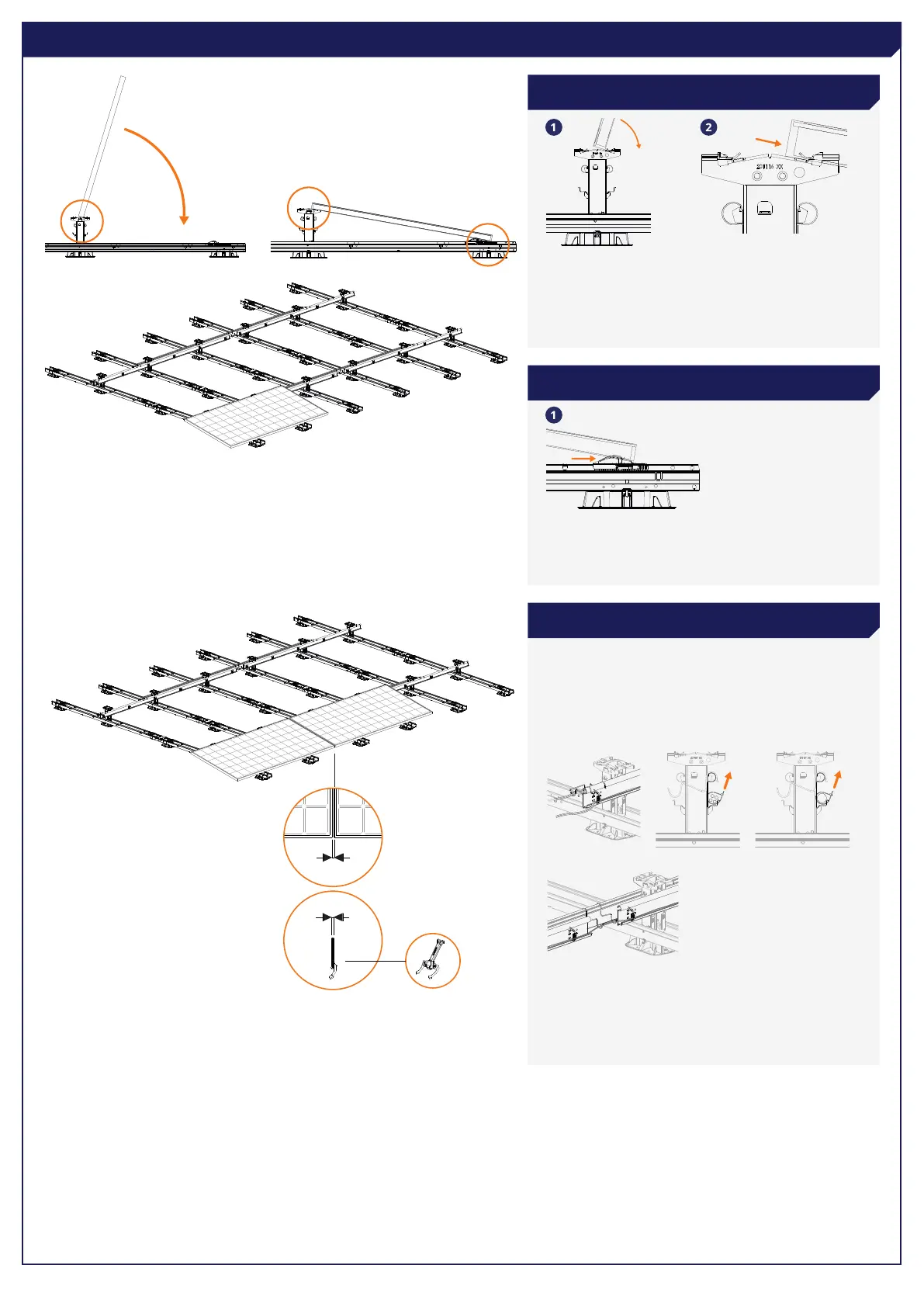

1 POSITION AND CLAMP THE SOLAR PANEL ON THE
HIGH BASE ELEMENTS
2 CLAMP THE SOLAR PANEL ON THE FRONT SIDE
2. Slide the panel edge under the clips of the high base
elements as far as it will go.
1. Place the rst solar panel on 2 high base elements.
Make sure the panel is properly centred. Tilt the panel so
that the lower edge of the panel is ush with the high base
elements.
Slide the clips of 2 panel locks over the edge of the front
panel until the panel is rmly clamped in place.
Click!
8 ASSEMBLY OF SOLAR PANELS AND CABLES
3 PLACING CABLES OR MC4 CONNECTOR
1. Place the cables or MC4 connector of the solar panel in
the gutter of the stabilizers at the place of the high base
elements.
2. Insert the cables or the MC4 connector into the cable
supports.
3. Connect the cables or MC4 connector to the stabilizers
using cable ties.
MC4
Connector
Cables
4. Connect the connectors of the cables of the rst and second
solar panel to each other.
5. Assemble the second solar panel.
6. Repeat the steps to complete the rows.
See Annex C for an explanation of cable management.
