ESP Enterview MX EVMX2 - External Call Station Fitting

Basic cabling
 240 VAC mains feed to external door and lock control power supply (EVBPS)
 240 VAC mains feed to each handset (via transformer- supplied)
 4 core from each external call station (front/rear) to its own power supply (EVBPS)
 CAT5e from each external call station (front/rear) to each handset
 4 core from push to exit button to EVBPS (power supply)
 4 core from lock to EVBPS (power supply
)
 4 core
from EVBPS (power supply) to emergency break glass (if fitted)
 2 pairs of CAT5e from supplied power supply to each handset
Note: The maximum cable distance per external call button to each handset is 100
meters using CAT5e cable. The maximum distance per supplied power supply
to each handset is 10 meters using 2 pairs of CAT5e cable.
Fitting the external call station
Location
 Select a location cl
ose to the door to be controlled
 Recommended mounting height 1.45 meters (camera lens)
 Secure back plate to the wall paying attention to the upward facing arrow located
on the back plate (see Fig. 1 item 1 for surface and Fig. 2 for flush mounting)
 Feed cables from each apartment and the power supply through the cable entry
hole see Fig. 1 item 2
 Trim cable length to approx. 200mm
4

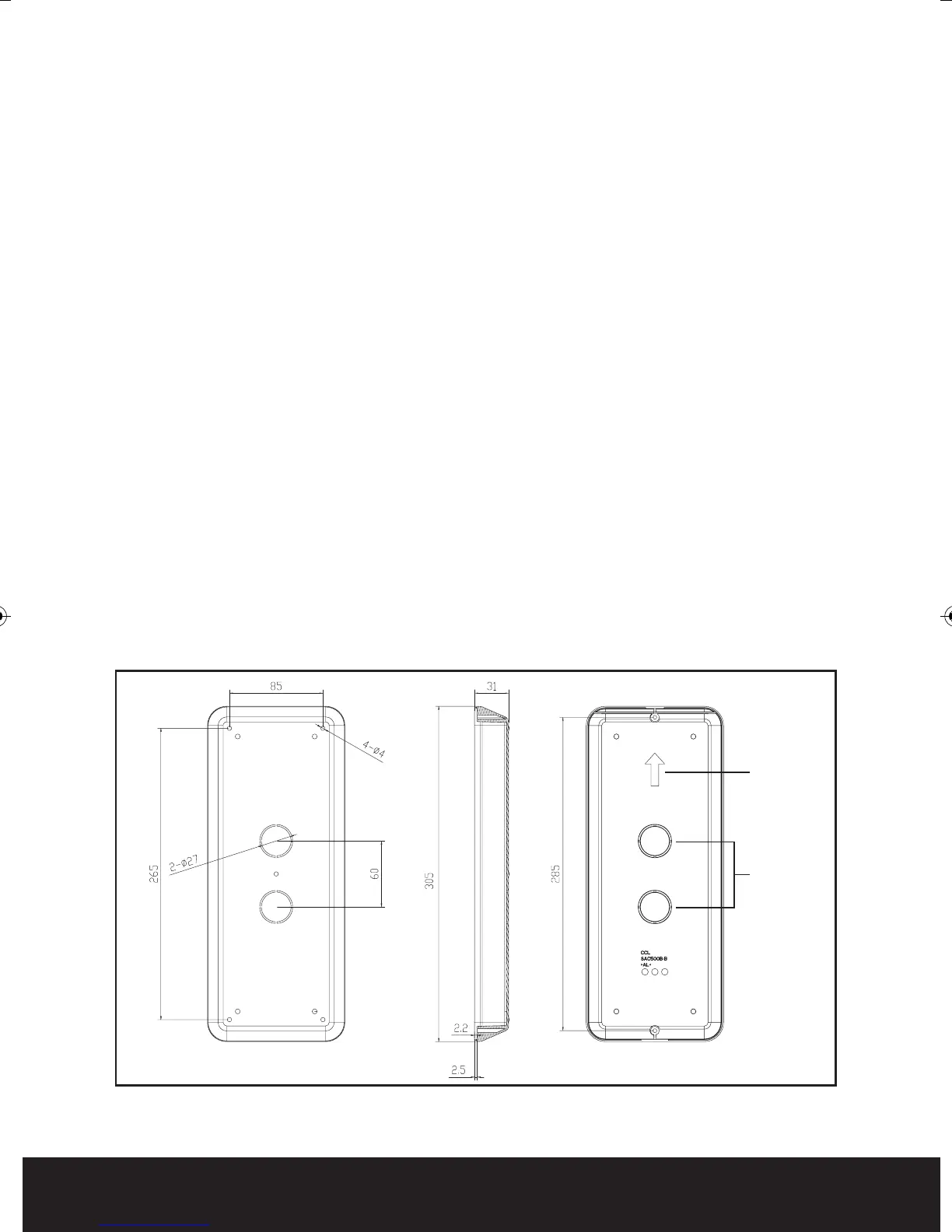

Fig. 1
Item 1
Item 2
