Appendix I
-

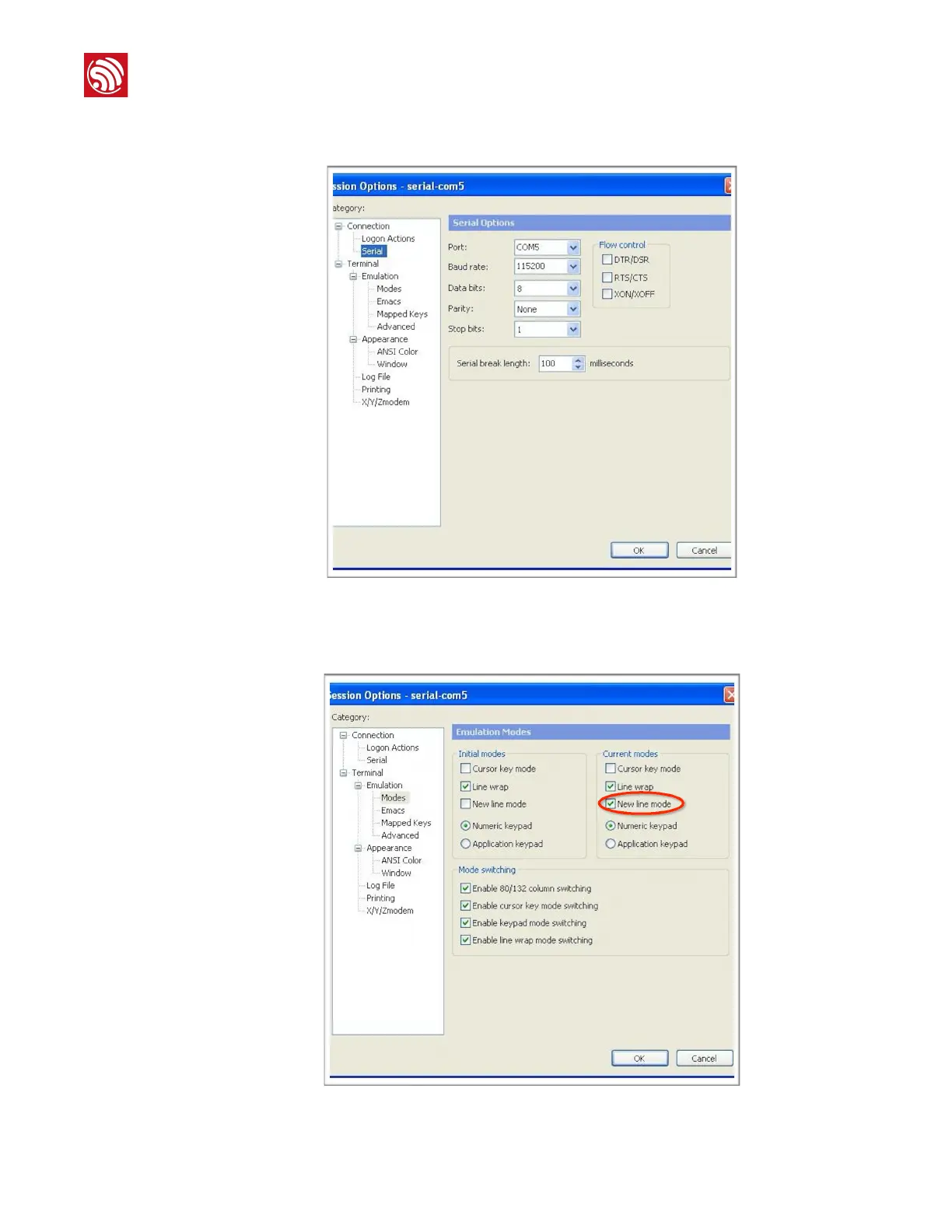

Select the “Serial” page in the “Properties” window to check the configuration of
the serial connection.
"
Figure Ⅰ-5. Checking the “Serial” in “Properties” Window
•
If AT commands are used, the baud rate should be 115200, and the “New Line
Mode” should be set because the AT commands end with a new line (CR-LF).
"
Figure Ⅰ-6. Setting the “New Line Mode” for AT Commands
Espressif
# /#14 19
2016.09

Espressif ESP8266 Specifications

General

Digital I/O Pins	17
Analog Input Pins	1
Wi-Fi	802.11 b/g/n
Operating Voltage	3.0V - 3.6V
Clock Speed	80 MHz / 160 MHz
Operating Temperature	-40°C to 125°C
Dimensions	24mm x 14mm
Processor	Tensilica L106 32-bit micro controller
