E200PS Operation Manual
4

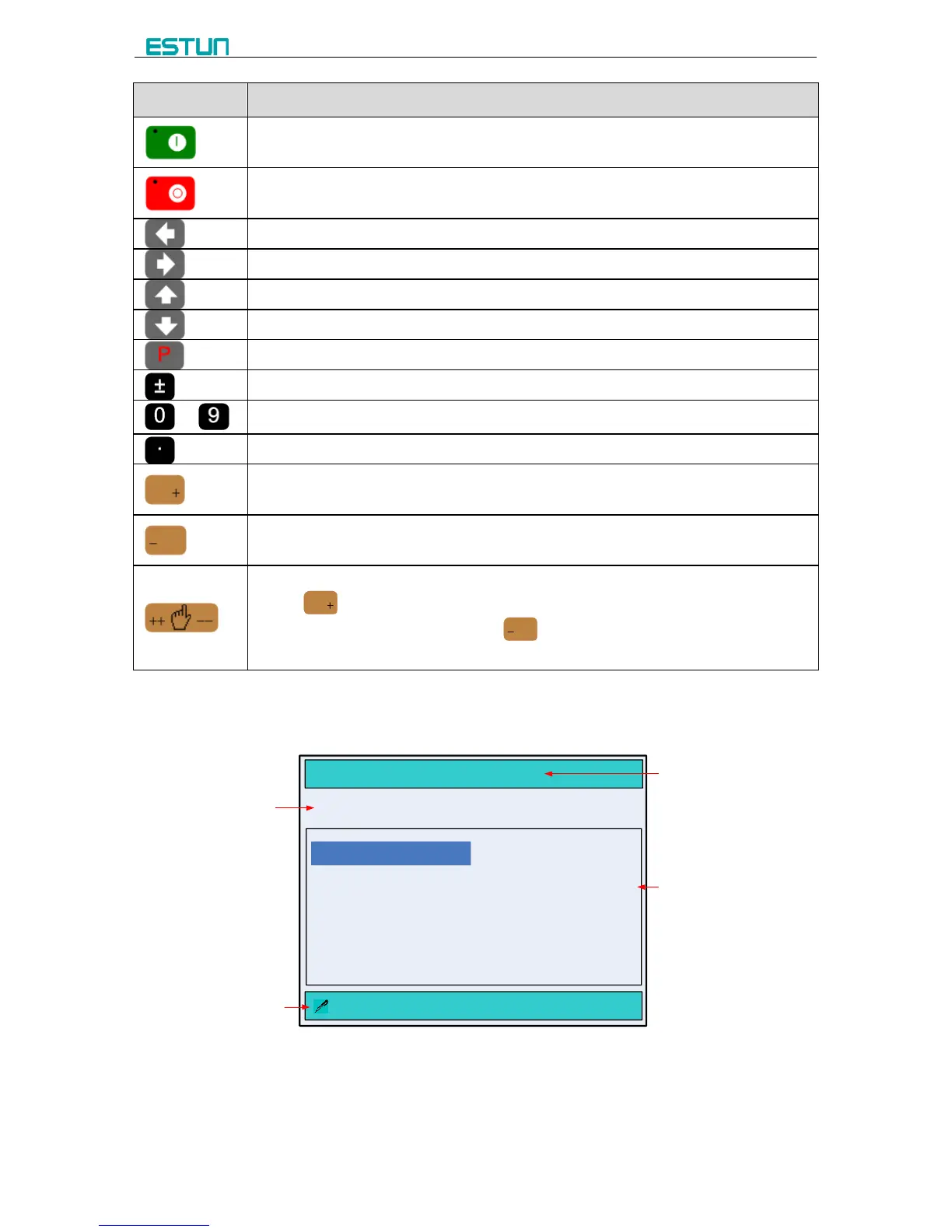

Key
Function Description
Start key: automatic start-up, top left corner of the key is operation indicator
LED. When operation is started, this indicator LED is on.
Stop key: stop operation, top left corner of the key is Stop indicator LED. When
initialize normal start-up and no operation, this indicator LED is on.
Left direction key: page forward, cursor remove
Right direction key: page backward, cursor remove
Up direction key: select parameter upward
Down direction key: select parameter downward
Function switch: switch over different function pages
Symbolic key: user input symbol, or start diagnosis.
~
Numeric key: when setting parameter, input value.
Decimal point key: when set up parameter, input decimal point.
Manual movement key: in case of manual adjustment, make adjustment object
move in forward direction at low speed.
Manual movement key: in case of manual adjustment, make adjustment object
move in backward direction at low speed.
High speed selection key: in case of manual adjustment, press this key and
press simultaneously, make adjustment object move in increasing
direction at high speed, then press , make adjustment object move in
decreasing direction at high speed.
1.3 Display
SINGLE
:DestPos Of Axis X Unit:mm
X= 100.50 G = 120.05
XP = 100.50 GP = 3.00
DX = 20.00 CL = 80
PP = 150 CP = 100
XP = 120.00
Page name
Interpretation
and Unit
Parameter
editing area
Current
Position
Figure 1-2 Display area
 Page name: here shows the name of the current page.
 Current Position: here shows the relative position of the X-axis and G-axis.
 Parameter editing area: here shows the editable parameters.
 Interpretation and Unit: here shows interpretation and unit of parameters the cursor on.
