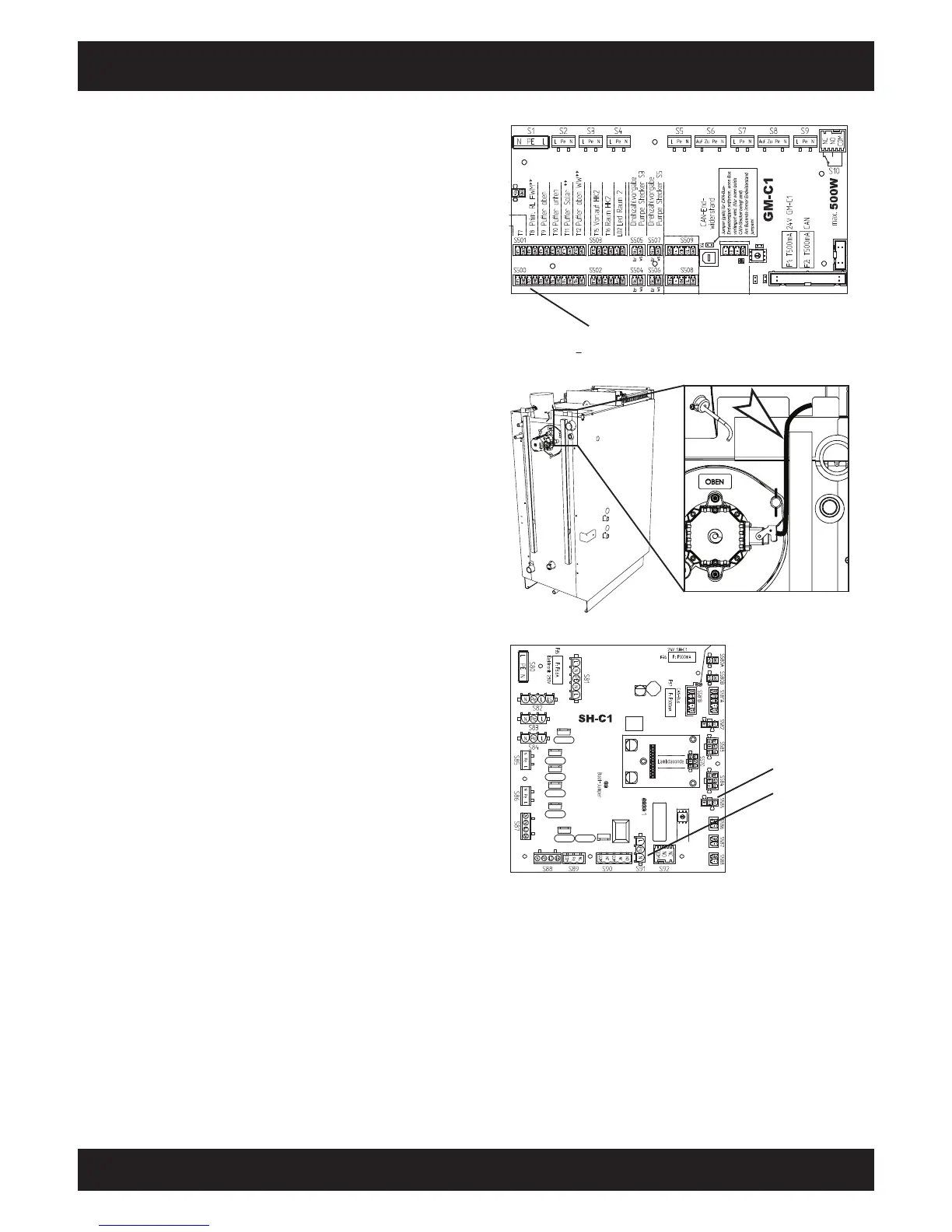

Installation Connecting draught fan

SH Montage

Connecting draught fan

Connect cable for return temperature sensor

Connect the cable to the GM-C circuit board at the

S500 / T2 terminal.

Install draught fan cable

Run the draught fan's cable on the rear side of the

boiler next to the cable duct.

Connect draught fan cable

Connect the cable to the SH-C circuit board at the

S91 and S585 terminals.
