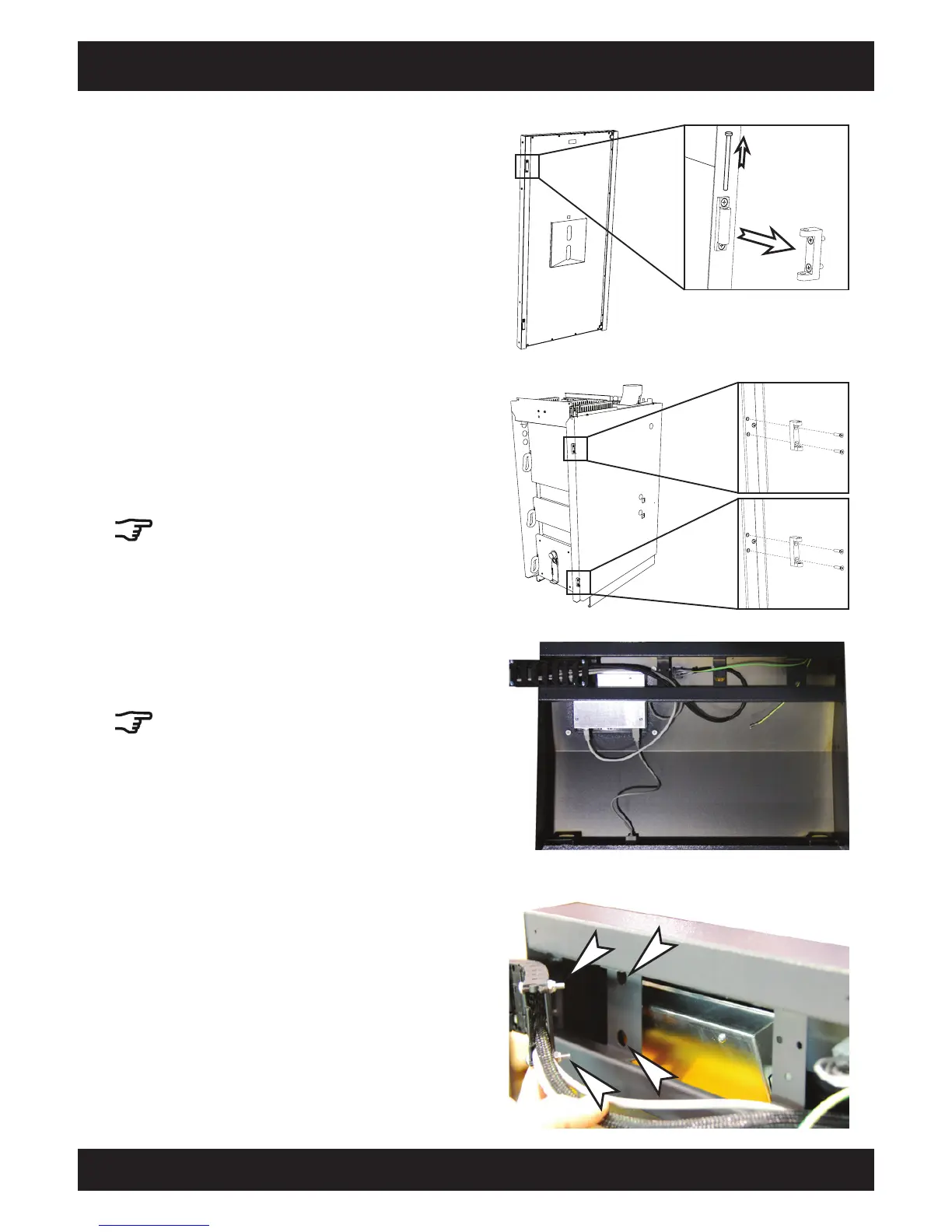

Install hinges for insulation door on door frame
The insulation door can be hinged on the right or
the left. In this description, the door is hinged on
the right side of the boiler.
Fasten both hinges to the door frame with 2 M5 x
20 countersunk screws each.
If the insulation door is hinged on the left, the
three boiler doors must also be reinstalled.
Disassemble hinges on insulation door
Lay the insulation door on a pallet and disassemble
the top and bottom hinges.
Insert cable chain into control panel
Insert the cable chain with cables into the control
panel as illustrated.
The cable chain must extend from the control
panel on the side on which the door hinges are
installed.
Insert cable chain bolts
Insert both cable chain bolts into the openings in
the control panel.
